OTK Kart Parts – spare parts catalogue

Genuine OTK parts for Tony Kart, Kosmic, EOS, Redspeed, Exprit, LN Kart, CS55 and Gillard chassis. Click a table to open it, find the part on the drawing and click Buy here to add it straight to your basket.

Table 1Front bumpers

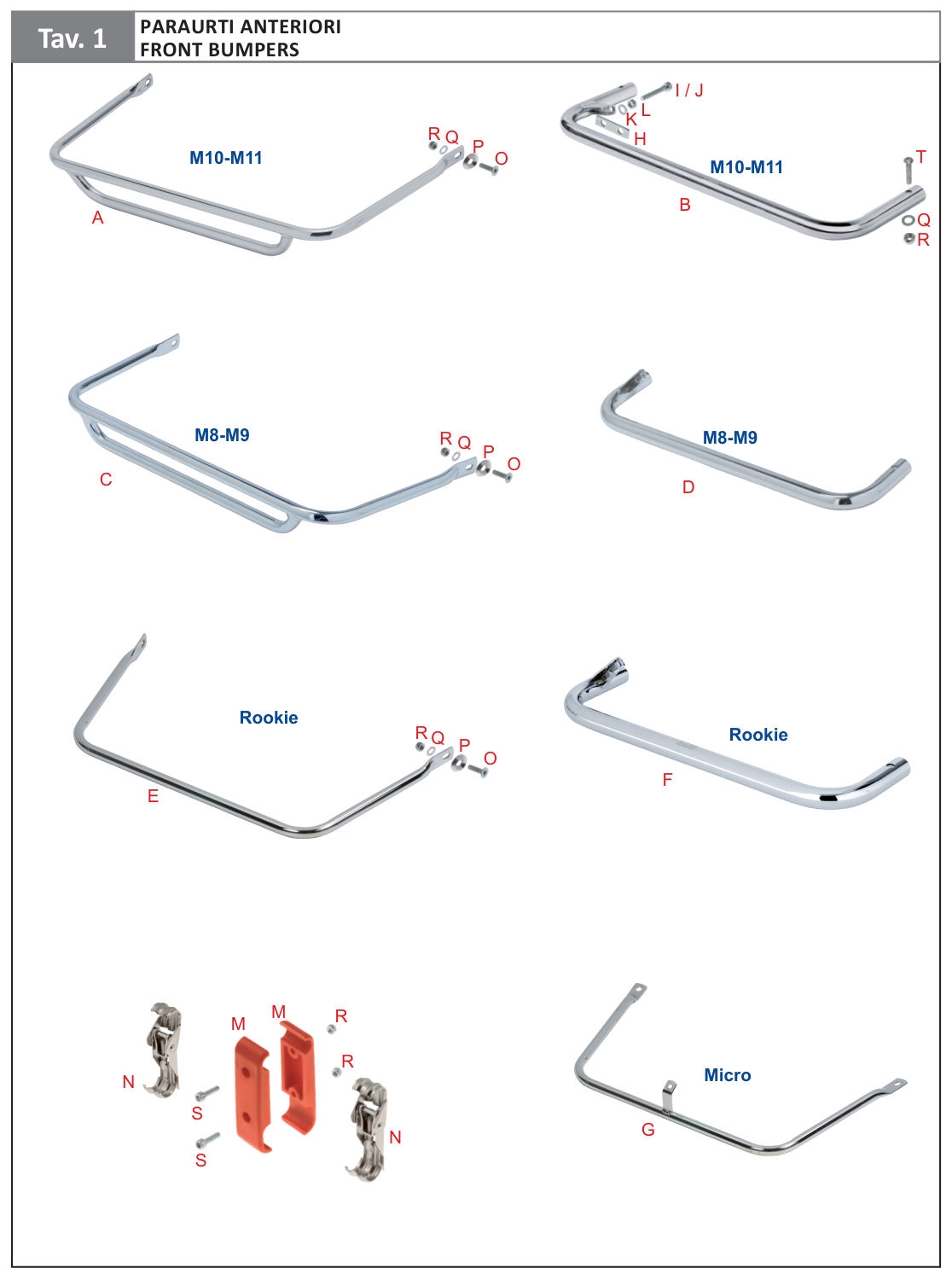

OTK Table 1 exploded view
Ref.Part no.Description€ excl. VAT
A0002.00EM11 upper front bumper Cik-Fia60.00Buy here
A0002.00DM10 upper front bumper Cik-Fia60.00Buy here
B0002.04CM11 lower front bumper Cik-Fia60.00Buy here
B0002.04BM10 lower front bumper Cik-Fia60.00Find in shop
C0002.ABAKM8-M9 upper front bumper48.00Buy here
D0002.BA3KM8-M9 lower front bumper48.00Buy here
E0002.A0AFront bumper for Rookie - Kid48.00Buy here
F0002.BA1Rookie EV / UK lower front bumper48.00Buy here
G0002.CBFront bumper for Micro48.00Find in shop
H0126.B0Threaded plate M51.75Buy here
IV.TCE5X25TCEI screw 5x25 mm0.10/pcBuy here
JV.TCE5X30TCEI screw 5x30 mm0.11/pcBuy here
KR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
LD.M5Nut M50.02/pcBuy here
M0301.C1Bracket for front bumper support Red3.65Buy here
M0301.C1NBracket for front bumper support Black3.65Find in shop
N0301.C2Fixing lever for front bumper19.00Buy here
OV.TPSCEI6X20TPSCEI screw 6x20 mm0.10/pcBuy here
P0033.00Biconical AL washer Ø 6 mm0.84Buy here
QR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
RD.M6A.B.A.B. nut M60.06/pcBuy here
SV.TCE6X20TCEI screw 6x20 mm0.09/pcBuy here
TV.TB6X30TB screw 6x30 mm0.25/pcBuy here
↑ Back to overview

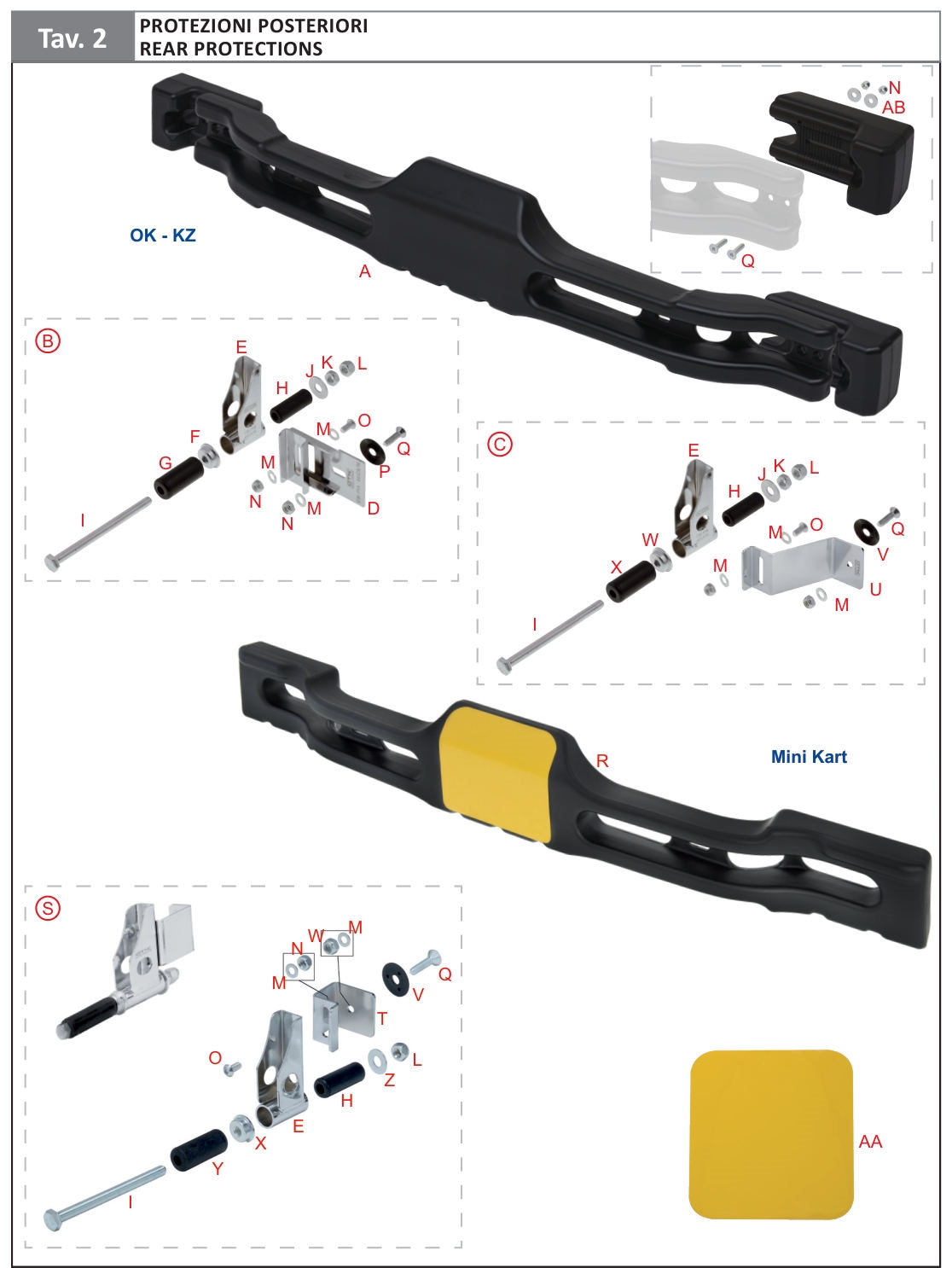

Table 2Rear protections
OTK Table 2 exploded view
Ref.Part no.Description€ excl. VAT
A0312.D0M10 rear protection homologation128.00Buy here
B0312.A030KITComplete M10 connection kit for chassis with tube Ø 30 mm104.00Buy here
B0312.A032KITComplete M10 connection kit for chassis with tube Ø 32 mm105.00Buy here
C0312.A0NXKITComplete connection kit for Nordix chassis105.00Find in shop
D0312.00AConnection for rear protection20.00Buy here
E0312.00CConnection support for rear protection20.00Buy here
F0067.D1Rear bumper bush Ø 30 mm3.70Buy here
F0067.D2Rear bumper bush Ø 32 mm3.70Buy here
G0066.00Rear bumper rubber Ø 30 mm3.00Buy here
G0066.B0Rear bumper rubber Ø 32 mm3.00Buy here
H0066.D0Rear bumper rubber Ø 20 mm3.00Buy here
IV.TE10X130TE screw 10x130 mm1.90/pcBuy here
JR.P.10X30X2,5Washer Ø 10x30x2,5 mm0.15/pcBuy here
KD.M10Nut M100.10/pcBuy here
LD.M10A.B.A.B. nut M100.17/pcBuy here
MR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
ND.M8A.B.A.B. nut M80.08/pcBuy here
OV.TB8X16TB screw 8 x 160.30/pcBuy here
P0087.A0AL washer Ø 8 mm1.50Buy here
QV.TPSCEI8X30TPSCEI screw 8x30 mm0.20/pcBuy here
R0312.FBMini Kart rear protection90.00Buy here
S0312.FDKITComplete Mini Kart connection kit105.00Buy here
T0312.00FAConnection for Mini Kart rear protection16.00Buy here
U0312.00DConnection for Nordix20.00Buy here
V0087.00NSeat washer Ø 8 mm0.57Buy here
WD.M8A.A.A.A. nut M80.09/pcBuy here
X0067.D3Rear bumper bush Ø 28 mm3.70Buy here
Y0066.A0Rear bumper rubber Ø 28 mm3.00Buy here
ZR.P.10X25Washer Ø 10,5x25x2 mm0.16/pcFind in shop
AA0069.B0Crystal sticky number-plate2.50Buy here
ABR.P.8X24Washer Ø 8x24x2 mm0.08/pcBuy here
↑ Back to overview

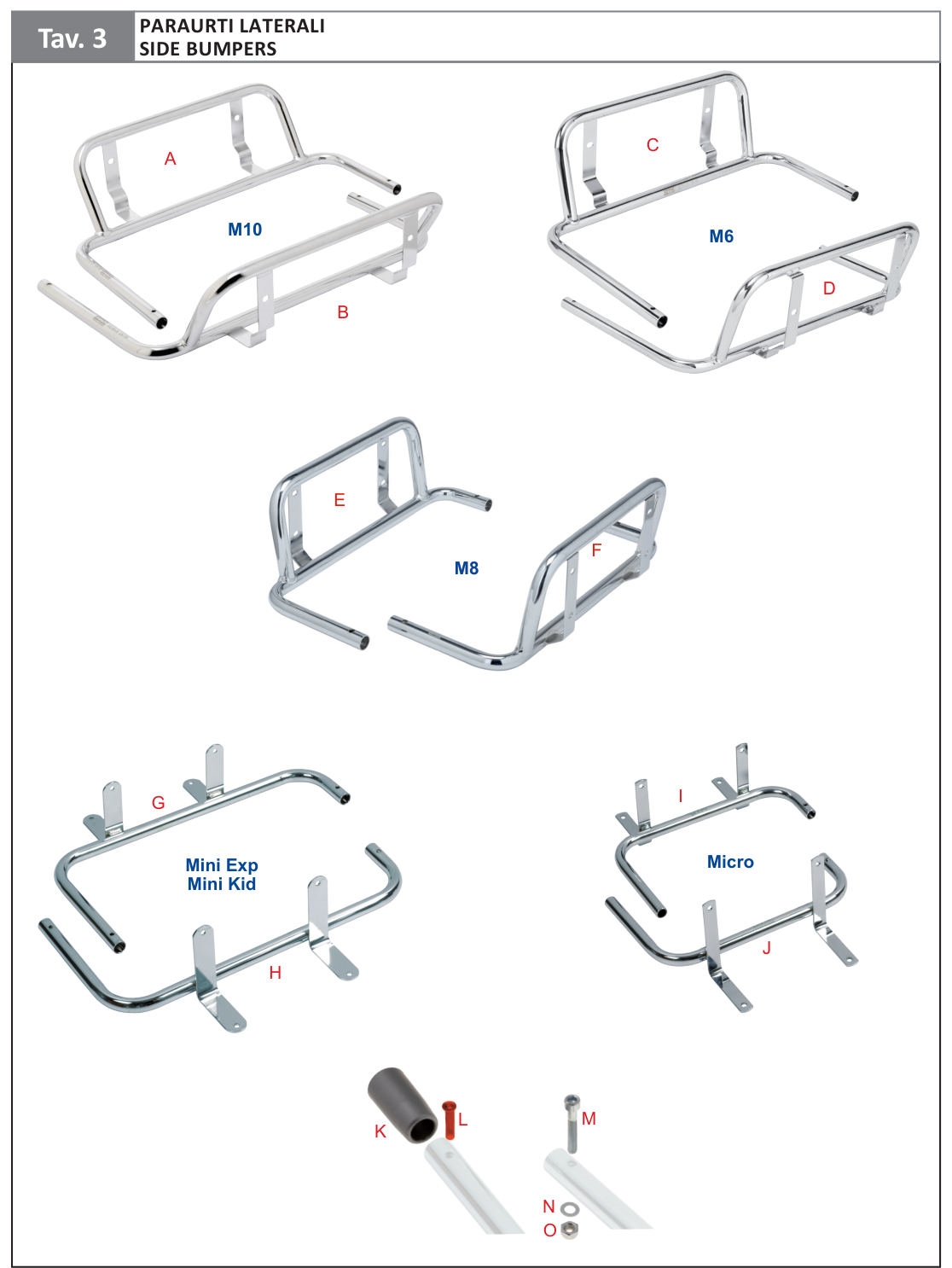

Table 3Side bumpers
OTK Table 3 exploded view
Ref.Part no.Description€ excl. VAT
A0004.F8DXRight side-bumper for M10 bodyworks79.00Buy here
B0004.F8SXLeft side-bumper for M10 bodyworks79.00Buy here
C0004.F7DXRight side-bumper for M6 bodyworks72.50Find in shop
D0004.F7SXLeft side-bumper for M6 bodyworks72.50Buy here
E0004.CCEDXRight side-bumper for M8 bodyworks72.50Buy here
F0004.CCESXLeft side-bumper for M8 bodyworks72.50Buy here
G0004.CCADXMini Exp - Mini Kid right side-bumper57.30Find in shop
H0004.CCASXMini Exp - Mini Kid left side-bumper57.30Find in shop
I0004.B2DXMicro right side-bumper48.00Buy here
J0004.B2SXMicro left side-bumper48.00Buy here
K0004.00AAnti-vibration buffer2.50Buy here
L0004.00B1Nylon locker for side-bumper0.73Buy here
L0004.00B1NNylon locker for side-bumper - Black0.73Buy here
MV.TCE6X30TCEI screw 6x30 mm0.11/pcBuy here
NR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
OD.M6A.B.A.B. nut M60.06/pcBuy here
↑ Back to overview

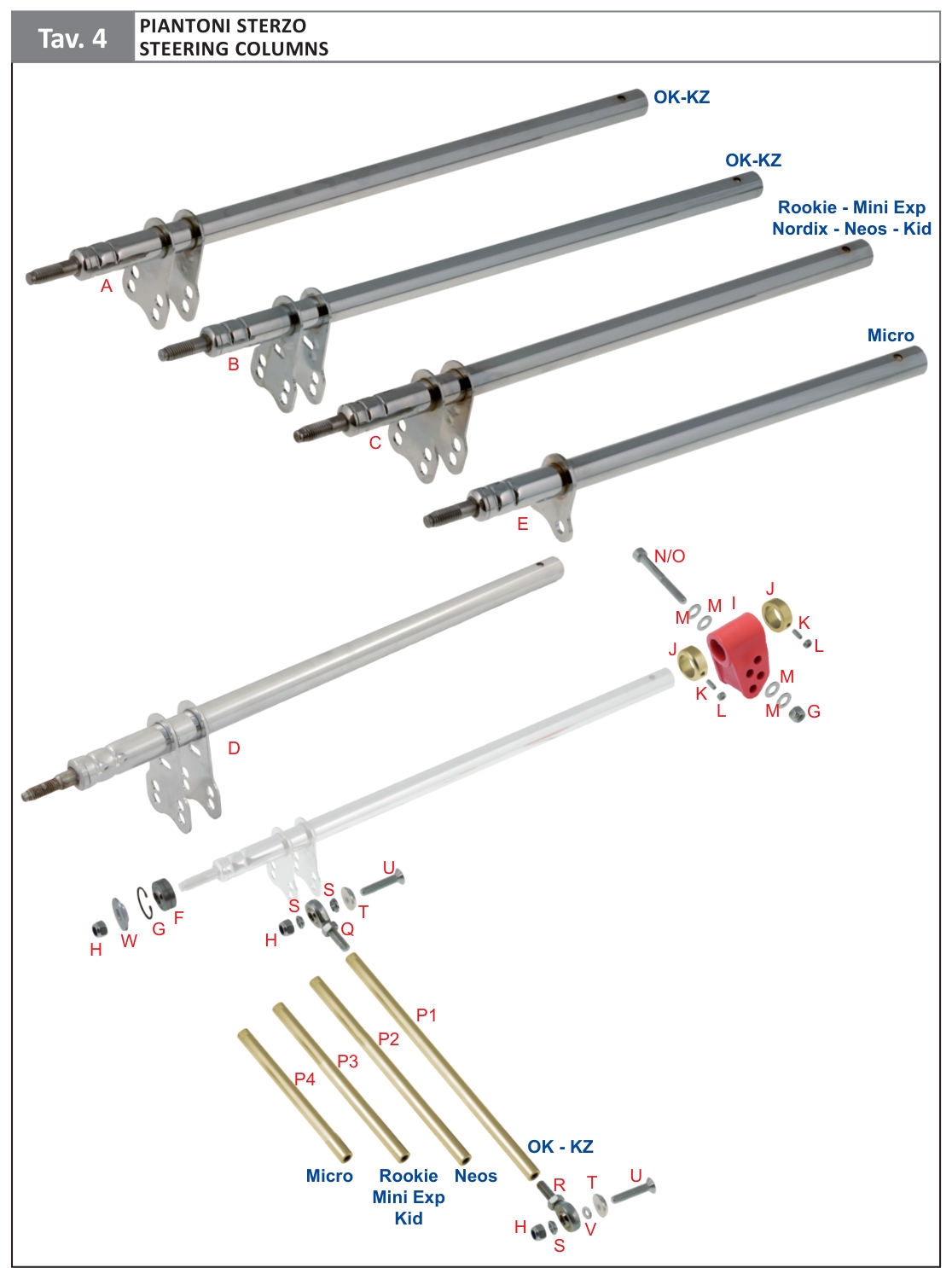

Table 4Steering columns
OTK Table 4 exploded view
Ref.Part no.Description€ excl. VAT
A0005.BA838/50 steering column L. 470 mm54.00Buy here
A0005.BB838/50 steering column L. 490 mm54.00Buy here
A0005.BC838/50 steering column L. 510 mm54.00Buy here
B0005.F0845/55 slotted steering column L. 470 mm59.00Buy here
B0005.FA845/55 slotted steering column L. 490 mm59.00Buy here
B0005.FB845/55 slotted steering column L. 510 mm59.00Buy here
C0005.C0UK8Steering column for Nordix - Mini - Kid54.00Buy here
D0005.C0UKA8Slotted steering column for Mini57.00Find in shop
E0005.D0Steering column for Micro54.00Find in shop
F0011.00Steering column joinbal Ø 10 mm14.50Buy here
G0012.00Seeger for steering column joinbal0.20Buy here
HD.M8A.A.A.A. nut M80.09/pcBuy here
I0086.B0Nylon support for steering column Red8.00Buy here
I0086.B0NNylon support for steering column Black8.00Find in shop
J0115.00Steering column locking bush4.50Buy here
KG.5X12Locker M5x12 mm conical tip0.12/pcBuy here
LD.M5Nut M50.02/pcBuy here
MR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
NV.TCE8X65TCEI screw 8x65 mm0.38/pcBuy here
NV.TCE8X70FDrilled TCEI screw 8x70 mm0.99/pcFind in shop
OV.TCE8X75TCEI screw 8x75 mm0.44/pcBuy here
OV.TCE8X75FDrilled TCEI screw 8x75 mm1.04/pcFind in shop
P10008.H0Steering tie-rod L. 279 mm18.00Find in shop
P10008.A0Steering tie-rod L. 270 mm18.00Buy here
P20008.E0Steering tie-rod L. 235 mm18.00Buy here
P30008.B0Steering tie-rod L. 220 mm18.00Buy here
P40008.C0Steering tie-rod L. 190 mm18.00Buy here
Q0009.00Complete right steering joinbal7.30Buy here
R0009.A0Complete left steering joinbal7.30Buy here
S0026.A0Joinbal spacer Ø 8x13x4 mm1.25Buy here
T0216.00Biconical AL washer Ø 8 mm1.05Buy here
UV.TPSCEI8X40TPSCEI screw 8x40 mm0.27/pcBuy here
UV.TPSCEI8X45FDrilled TPSCEI screw 8x45 mm0.96/pcBuy here
VR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
W0011.001Safety washer for steering wheel column pin2.70Buy here
D.M10A.B.A.B. nut M100.17/pcBuy here
A.E.RA7Seeger Ø 7 mm “RA Type” (USA only)0.04/pcBuy here
0255.00Spring for drilled screws0.73Buy here
↑ Back to overview

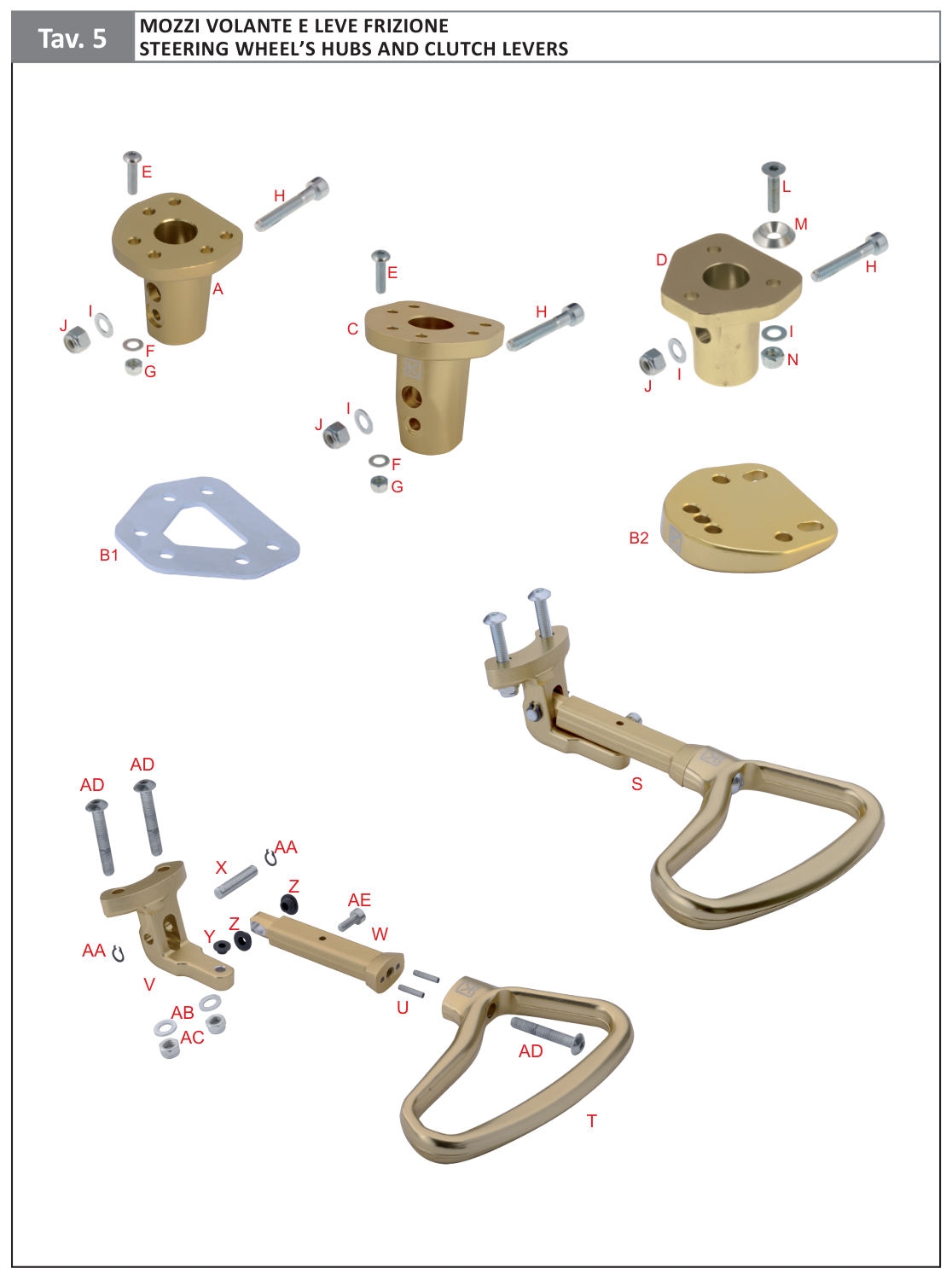

Table 5Steering wheel’s hubs and clutch levers
OTK Table 5 exploded view
Ref.Part no.Description€ excl. VAT
A0084.BACAL steering wheel hub - 6 holes44.00Find in shop
B10084.D2Spacer for steering wheel hub 6 holes 2 mm2.85Buy here
B20084.DIInclined spacer for steering wheel hub35.00Buy here
C0084.BAIBAL steering wheel angled hub - 6 holes77.00Buy here
D0084.BABAL steering wheel hub - 3 holes44.00Find in shop
EV.TB5X20TB screw 5x20 mm (for BSD system)0.24/pcBuy here
EV.TB5X25FDrilled TB screw 5x25 mm0.77/pcBuy here
EV.TB5X40Button TB 5x40 mm (for SA3 system)0.34/pcBuy here
EV.TB5X45FDrilled TB screw 5x45 mm0.84/pcFind in shop
FR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
GD.M5A.B.A.B. nut M50.05/pcBuy here
HV.TCE6X35TCEI screw 6x35 mm0.13/pcBuy here
HV.TCE6X40FDrilled TCEI screw 6x40 mm0.66/pcFind in shop
IR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
JD.M6A.A.A.A. nut M60.06/pcBuy here
LV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
LV.TPSCEI6X30FDrilled TPSCEI screw 6x30 mm0.73/pcBuy here
M0033.00Biconical AL washer Ø 6 mm0.84Buy here
ND.M6A.B.A.B. nut M60.06/pcBuy here
S0113.A0KITForged clutch lever Kit80.00Buy here
T0113.A0Clutch lever Forged34.00Find in shop
U0014.D02Pin for pedal adjustment0.32Buy here
V0113.A1Clutch lever support24.00Buy here
W0113.A2Clutch lever extension16.00Buy here
X0113.A3Pin clutch lever1.70Buy here
Y0113.A4Bush Ø 3X4X3 mm0.73Buy here
Z0113.A5BushØ 5X6X4 mm0.84Buy here
AAA.E.A5Seeger 5 mm0.02/pcBuy here
ABR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
ACD.M5A.B.A.B. nut M50.05/pcBuy here
ADV.TB5X25TB screw 5x25 mm0.28/pcBuy here
AEV.TCE4X10TCEI screw 4x10 mm0.10/pcBuy here
AFV.TB5X30TB screw 5x30 mm0.31/pcBuy here
0255.00Spring for drilled screws0.73Buy here
↑ Back to overview

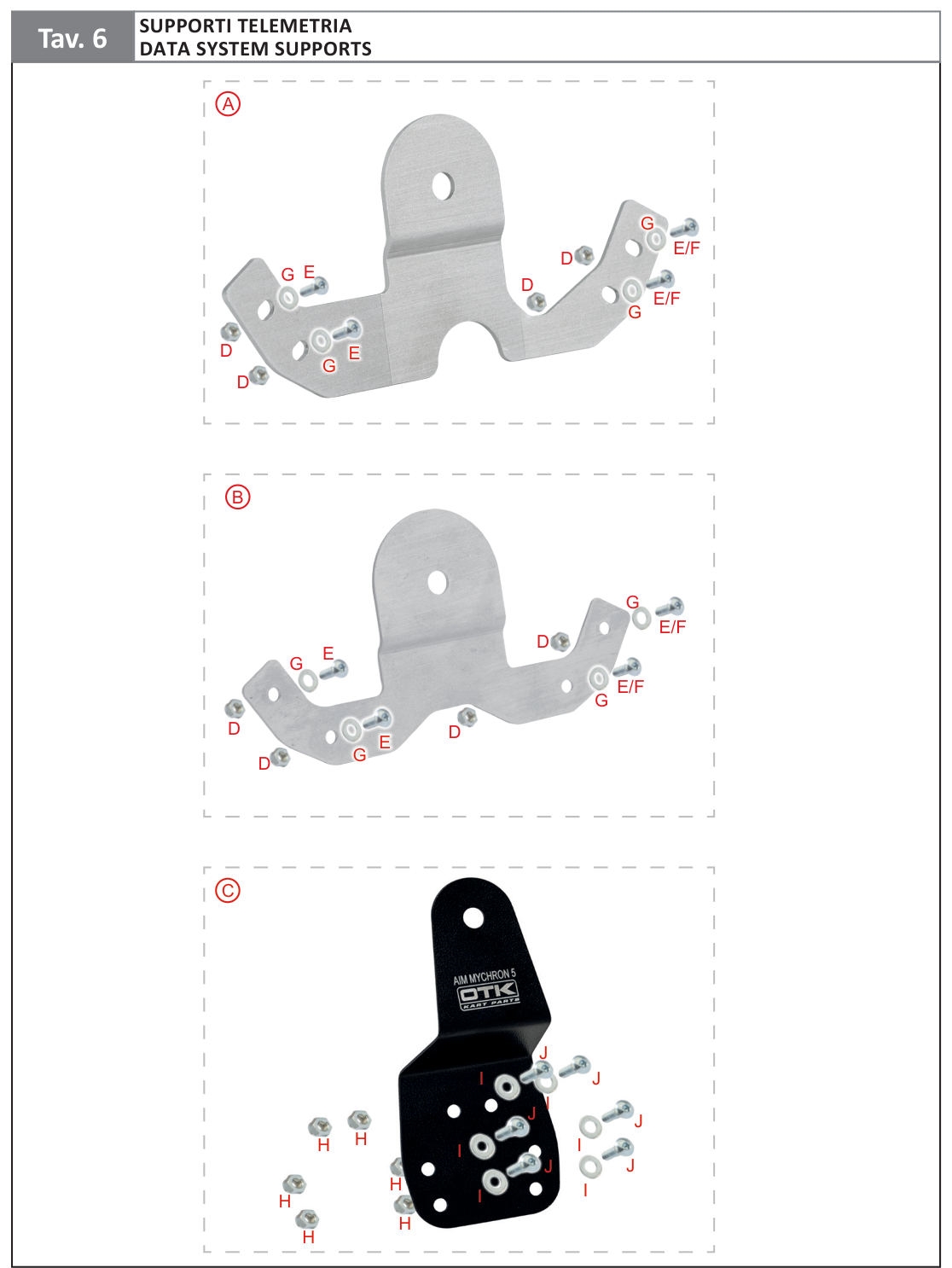

Table 6Data system supports
OTK Table 6 exploded view
Ref.Part no.Description€ excl. VAT
A0083.C0BKITComplete DAKTON - UNIPRO support kit52.00Buy here
B0083.C0CKITComplete ALFANO support kit52.00Find in shop
C0083.C0EKITComplete MYCHRON 5 support kit38.50Buy here
DD.M4A.B.A.B. nut M40.05/pcBuy here
EV.TB4X12TB screw 4x12 mm0.18/pcBuy here
FV.TB4X16TB screw 4x16 mm0.21/pcBuy here
GR.P.4X8Washer Ø 4x8 mm0.02/pcBuy here
HD.M5A.B.A.B. nut M50.05/pcBuy here
IR.P.5X11Washer Ø 5x11 mm0.02/pcBuy here
JV.TB5X22TB screw 5x22 mm0.30/pcBuy here
↑ Back to overview

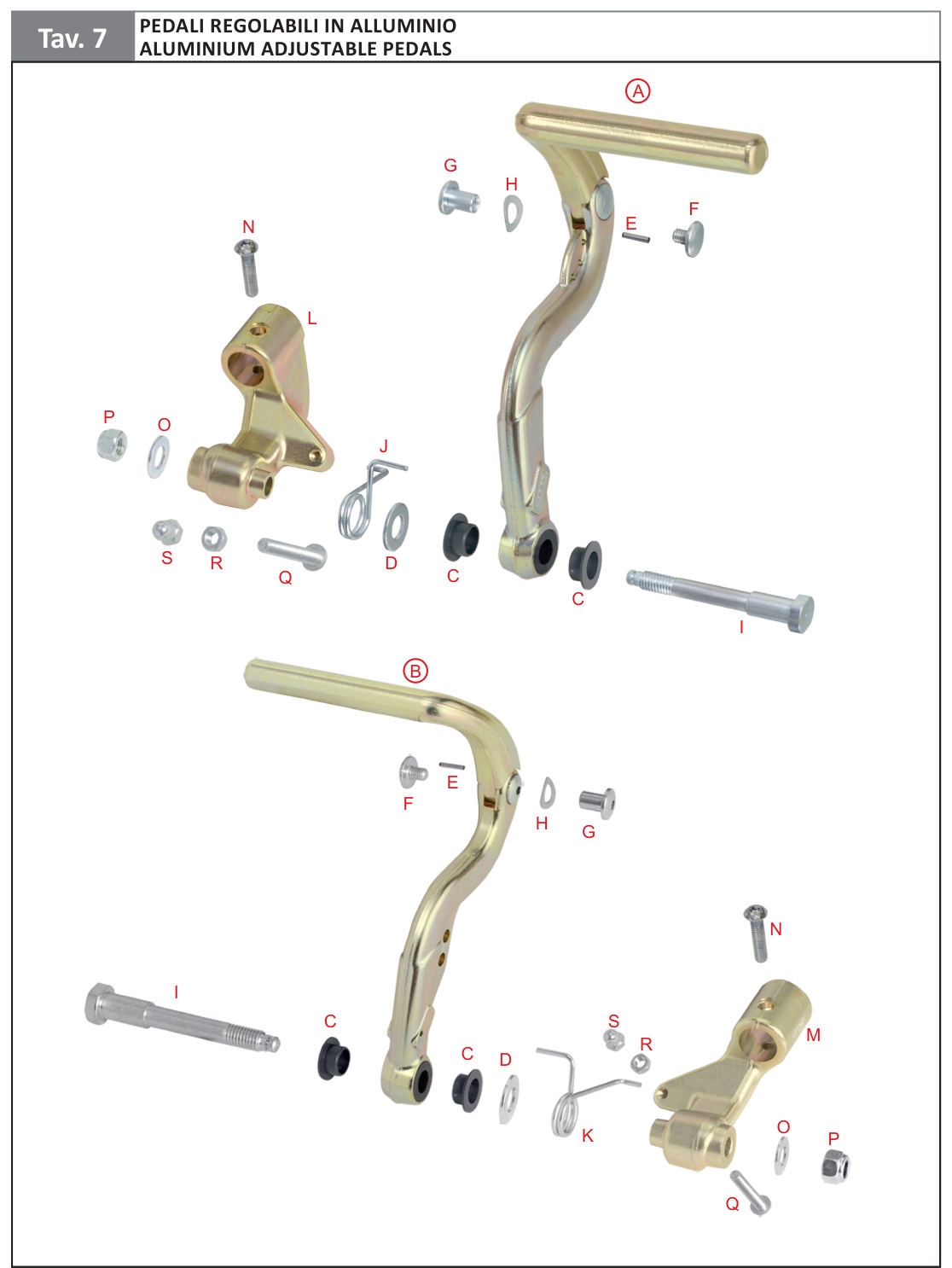

Table 7Aluminium adjustable pedals
OTK Table 7 exploded view
Ref.Part no.Description€ excl. VAT
A0014.DCAdjustable AL accelerator pedal88.00Buy here
B0015.DCAdjustable AL brake pedal88.00Buy here
C0014.D04Flanged bush Ø 12x10x7 mm0.68Buy here
DR.P.10X16X1Washer Ø 10x16x1 mm0.08/pcBuy here
E0014.D02Pin for pedal adjustment0.32Buy here
F0014.D03Pivot for pedal adjustment2.60Buy here
G0014.D01Bush for pedal adjustment2.50Buy here
HR.E.8Spring washer Ø 8 mm0.07/pcBuy here
I0017.D0Adjustable pedal screw9.50Buy here
J0016.DAReturn accelerator pedal spring3.50Buy here
K0016.DBReturn brake pedal spring3.50Buy here
L0014.D3AL accelerator pedal support45.60Buy here
M0015.D3AL brake pedal support46.00Buy here
NV.TB6X25TB screw 6x25 mm0.21/pcBuy here
OR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
PD.M8A.A.A.A. nut M80.09/pcBuy here
QV.TB5X35TB screw 5x35 mm0.31/pcBuy here
RD.M5Nut M50.02/pcBuy here
SD.M5CIECHIBlind nut M50.05/pcBuy here
↑ Back to overview
Table 8Rookie aluminium pedals

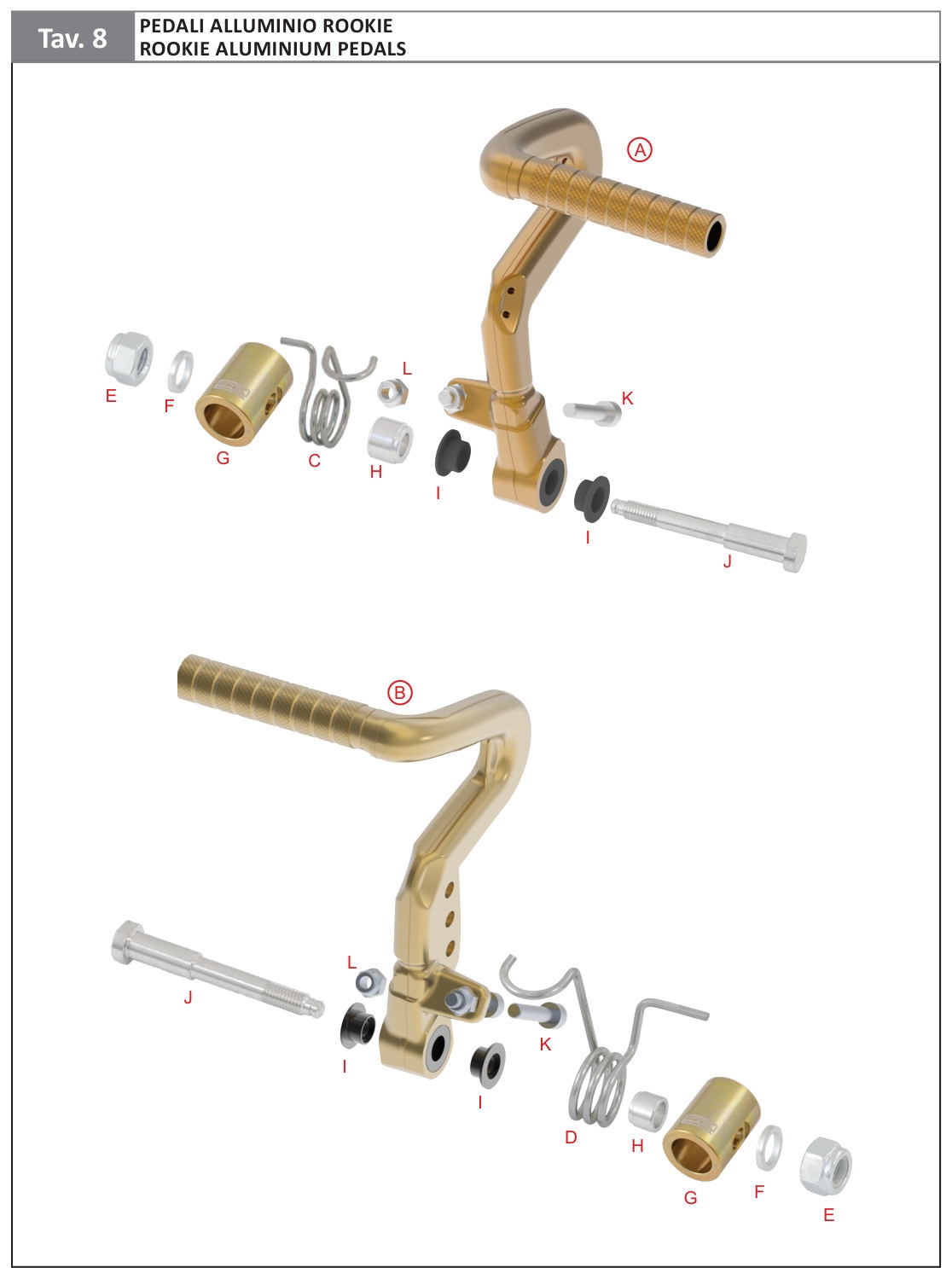

OTK Table 8 exploded view
Ref.Part no.Description€ excl. VAT
A0014.BCRookie accelerator pedal80.00Buy here
B0015.BCRookie brake pedal80.00Buy here
C0016.FABReturn accelerator pedal spring12.00Buy here
D0016.FBBReturn brake pedal spring12.00Buy here
ED.M8A.A.A.A. nut M80.09/pcBuy here
FR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
G0014.A3Rookie pedal support9.00Buy here
H0017.002Mini forged pedal pin spacer4.20Buy here
I0014.D04Flanged bush Ø 12x10x7 mm0.68Buy here
J0017.A0Rookie pedal screw9.50Buy here
KV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
LD.M6A.A.A.A. nut M60.06/pcBuy here
↑ Back to overview

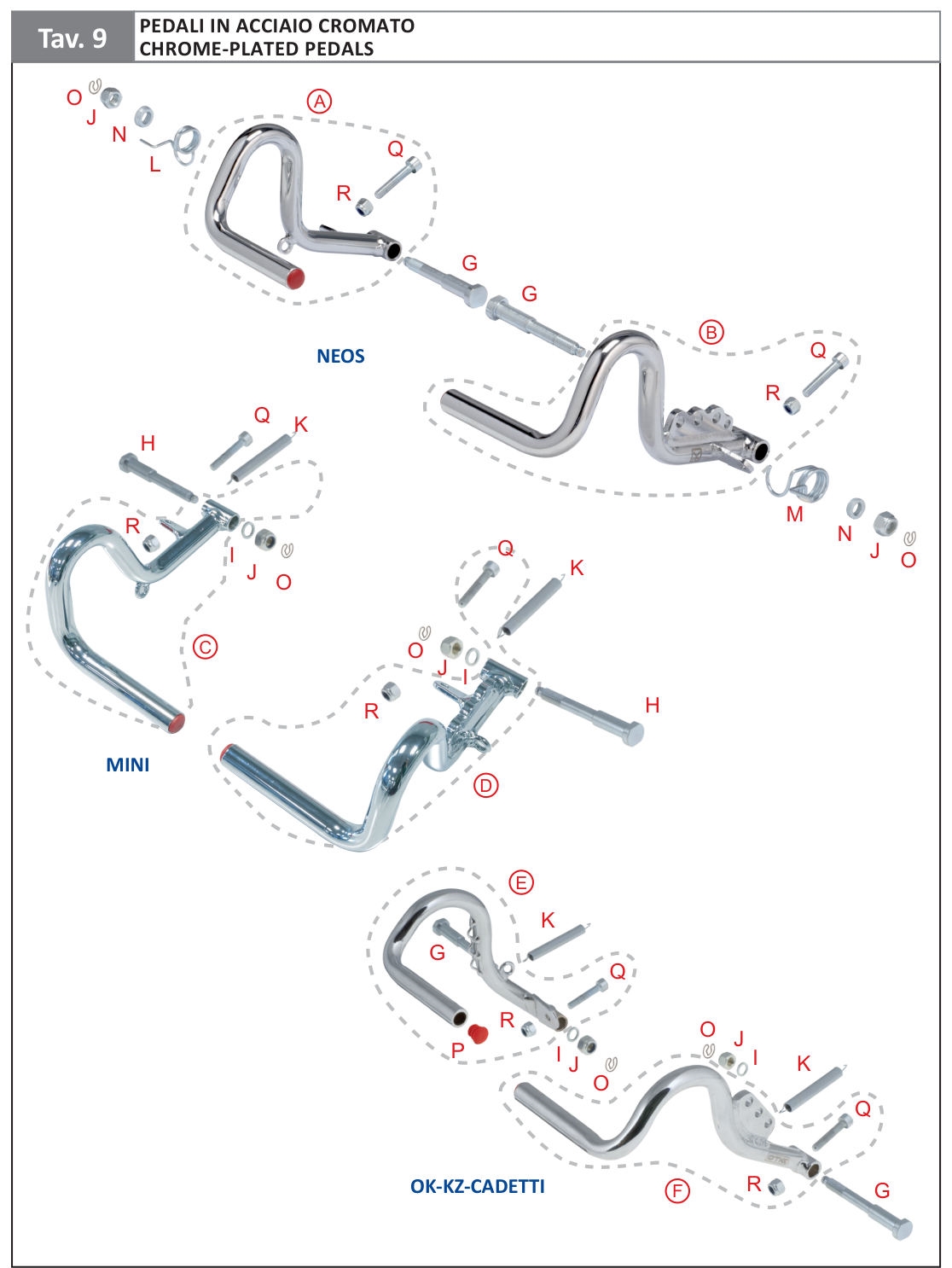

Table 9Chrome-plated pedals
OTK Table 9 exploded view
Ref.Part no.Description€ excl. VAT
A0014.ABAccelerator pedal for Neos - Rookie EV52.00Buy here
B0015.BBBrake pedal for Neos - Rookie EV56.00Buy here
C0014.AAAccelerator pedal for Mini Rookie - Nordix52.00Find in shop
D0015.BABrake pedal for Mini Rookie - Nordix56.00Find in shop
E0014.00Chrome-plated accelerator pedal52.00Buy here
F0015.00Chrome-plated hydraulic brake pedal54.50Find in shop
G0017.B0Pedal screw Neos - Rookie EV9.50Buy here
H0017.A0Rookie pedal screw9.50Buy here
IR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
JD.M8A.A.A.A. nut M80.09/pcBuy here
K0016.00Return pedal spring Rookie - Micro1.70Buy here
L0016.FAAAccelerator pedal spring Mini Neos12.00Buy here
M0016.FBABrake pedal spring Mini Neos12.00Buy here
N0017.001Pedal screw spacer4.20Buy here
O0116.B8Circle spring1.25Buy here
P0121.00Pedal plug Ø 12 mm Red0.23Buy here
P0121.00NPedal plug Ø 12 mm Black0.23Buy here
QV.TCE6X30TCEI screw 6x30 mm0.11/pcBuy here
RD.M6A.A.A.A. nut M60.06/pcBuy here
↑ Back to overview

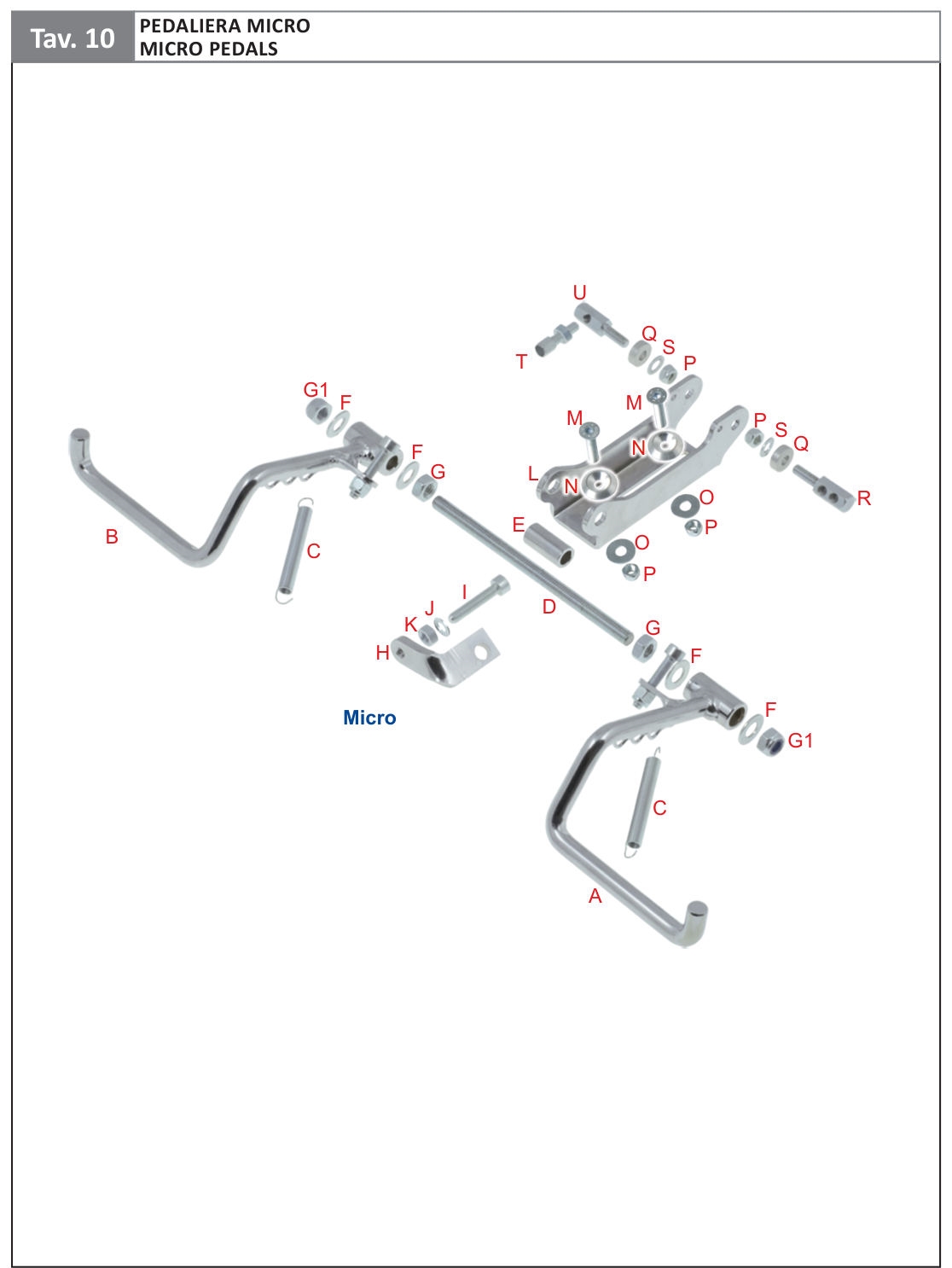

Table 10MICRO pedals
OTK Table 10 exploded view
Ref.Part no.Description€ excl. VAT
A0015.C0Micro brake pedal47.00Find in shop
B0014.C0Micro accelerator pedal48.00Find in shop
C0016.00Return pedal spring Rookie - Micro1.70Buy here
D0010.E3Threaded bar M84.60Find in shop
E0010.E2Micro pedals spacer3.45Find in shop
FR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
GD.M8Nut M80.05/pcBuy here
G1D.M8A.A.A.A. nut M80.09/pcBuy here
H0010.00D3Accelerator locking plate for Micro rudder pedals16.00Find in shop
IV.TCE5X30TCEI screw 5x30 mm0.11/pcBuy here
JR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
KD.M5Nut M50.02/pcBuy here
L0010.E1Micro rudder pedals support36.70Find in shop
MV.TPSCEI6X30TPSCEI screw 6x30 mm0.13/pcBuy here
N0033.00Biconical AL washer Ø 6 mm0.84Buy here
OR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
PD.M6A.B.A.B. nut M60.06/pcBuy here
Q0010.00B4Spacer 5 mm3.50Buy here
R0214.C0Mechanic brake pin safety cable7.35Buy here
SR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
T0213.00Adjuster1.45Buy here
U0214.00Mechanic brake pin7.30Buy here
↑ Back to overview

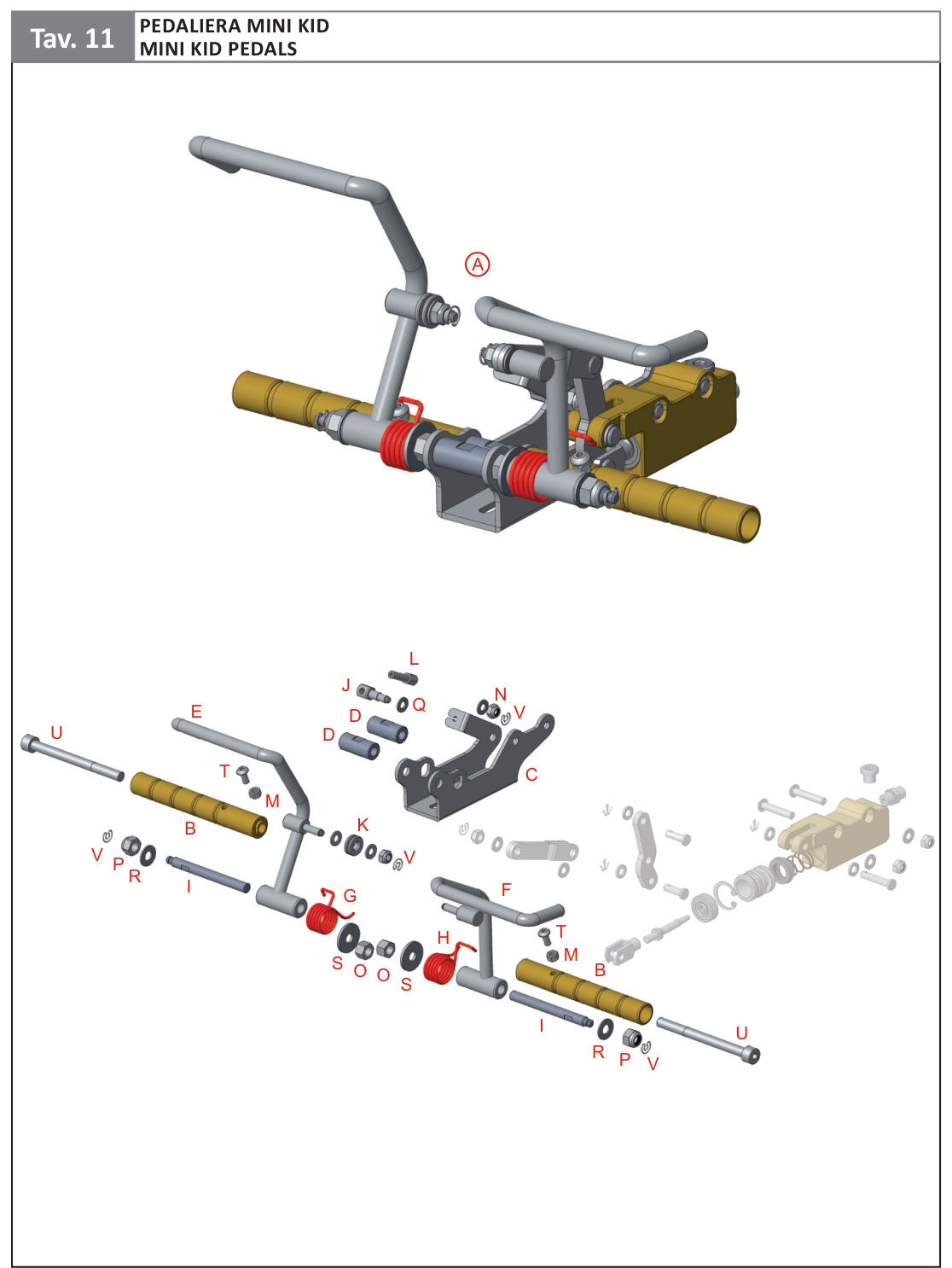

Table 11MINI KID pedals
OTK Table 11 exploded view
Ref.Part no.Description€ excl. VAT
A0010.F0KITComplete rudder pedals for Mini Kid-Find in shop
B0010.F01Footrest for Mini Kid21.50Find in shop
C0010.F1Rudder pedals support15.20Find in shop
D0010.F2Pedal spacer for Mini Kid3.50Find in shop
E0014.F01Accelerator Pedal48.00Find in shop
F0015.F01Brake pedal47.00Find in shop
G0016.FAAccelerator Pedal spring7.90Find in shop
H0016.FBBrake pedal spring7.90Find in shop
I0017.F0Rudder pedal screw9.50Find in shop
J0116.E8Adjuster's peg brake caliper Micro - Mini Kid5.50Find in shop
K0209.F0Accelerator cable sleeve1.70Find in shop
L0213.00Adjuster1.45Buy here
MD.M5Nut M50.02/pcBuy here
ND.M6A.B.A.B. nut M60.06/pcBuy here
OD.M8Nut M80.05/pcBuy here
PD.M8A.A.A.A. nut M80.09/pcBuy here
QR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
RR.P.8X17Washer Ø 8x17x1 mm0.05/pcBuy here
SR.P.8X24Washer Ø 8x24x2 mm0.08/pcBuy here
TV.TB5X12TB screw 5x12 mm0.17/pcFind in shop
UV.TCE8X90TCEI screw 8x90 mm0.51/pcFind in shop
V0116.B8Circle spring1.25Buy here
↑ Back to overview

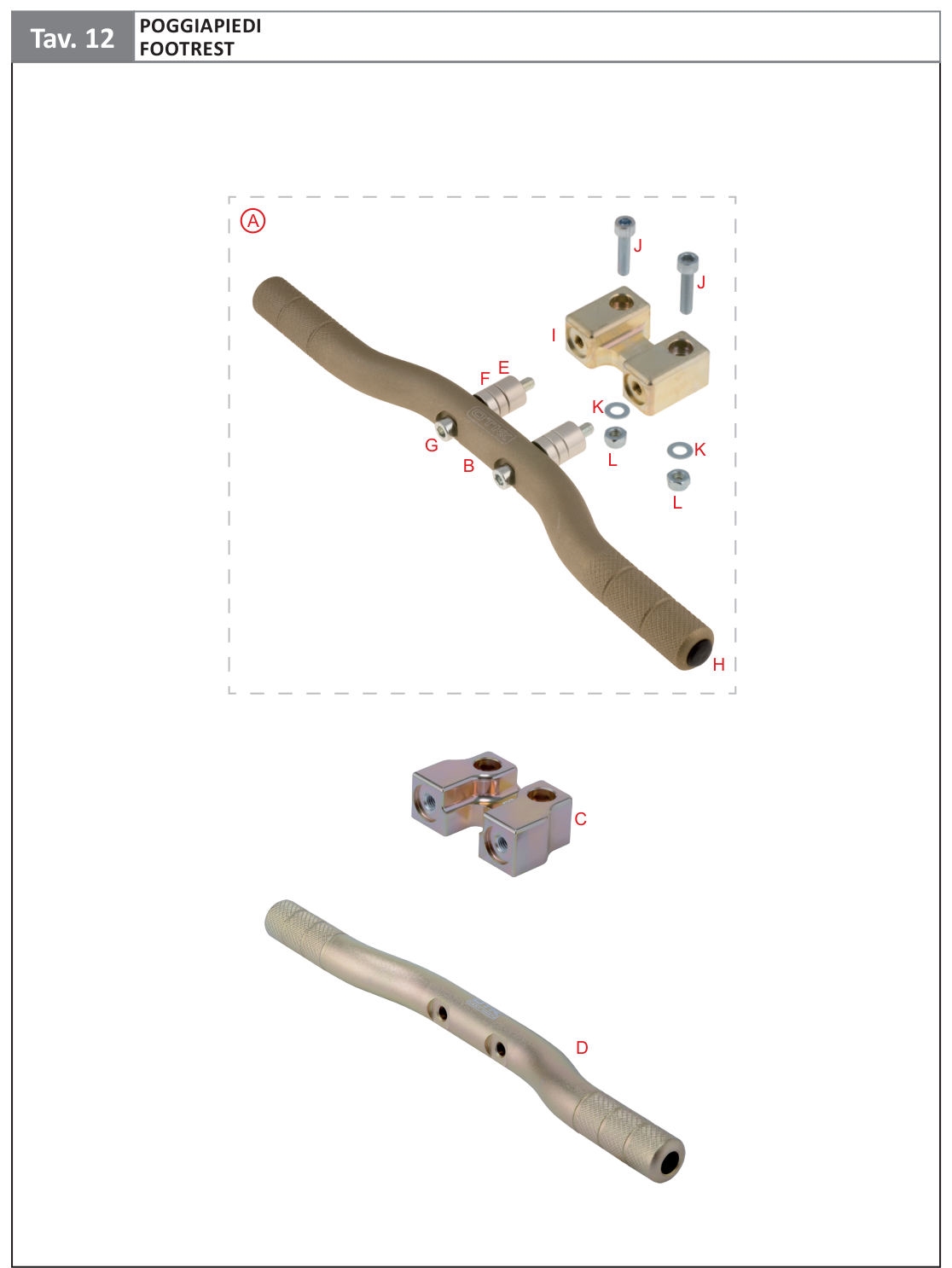

Table 12Footrest
OTK Table 12 exploded view
Ref.Part no.Description€ excl. VAT
A0010.00BKITAdjustable AL footrest complete with support90.00Buy here
B0010.00B1Adjustable AL footrest42.00Find in shop
C0010.00BB2Support footrest36.00Buy here
D0010.00BAdjustable AL footrest57.00Buy here
E0010.00B3Spacer 10 mm4.00Buy here
F0010.00B4Spacer 5 mm3.50Buy here
GV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
H0121.00Pedal plug Ø 12 mm Red0.23Buy here
H0121.00NPedal plug Ø 12 mm Black0.23Buy here
I0010.00B2Support for adjustable footrest36.00Buy here
JV.TCE6X25TCEI screw 6x25 mm0.11/pcBuy here
KR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
LD.M6A.B.A.B. nut M60.06/pcBuy here
↑ Back to overview

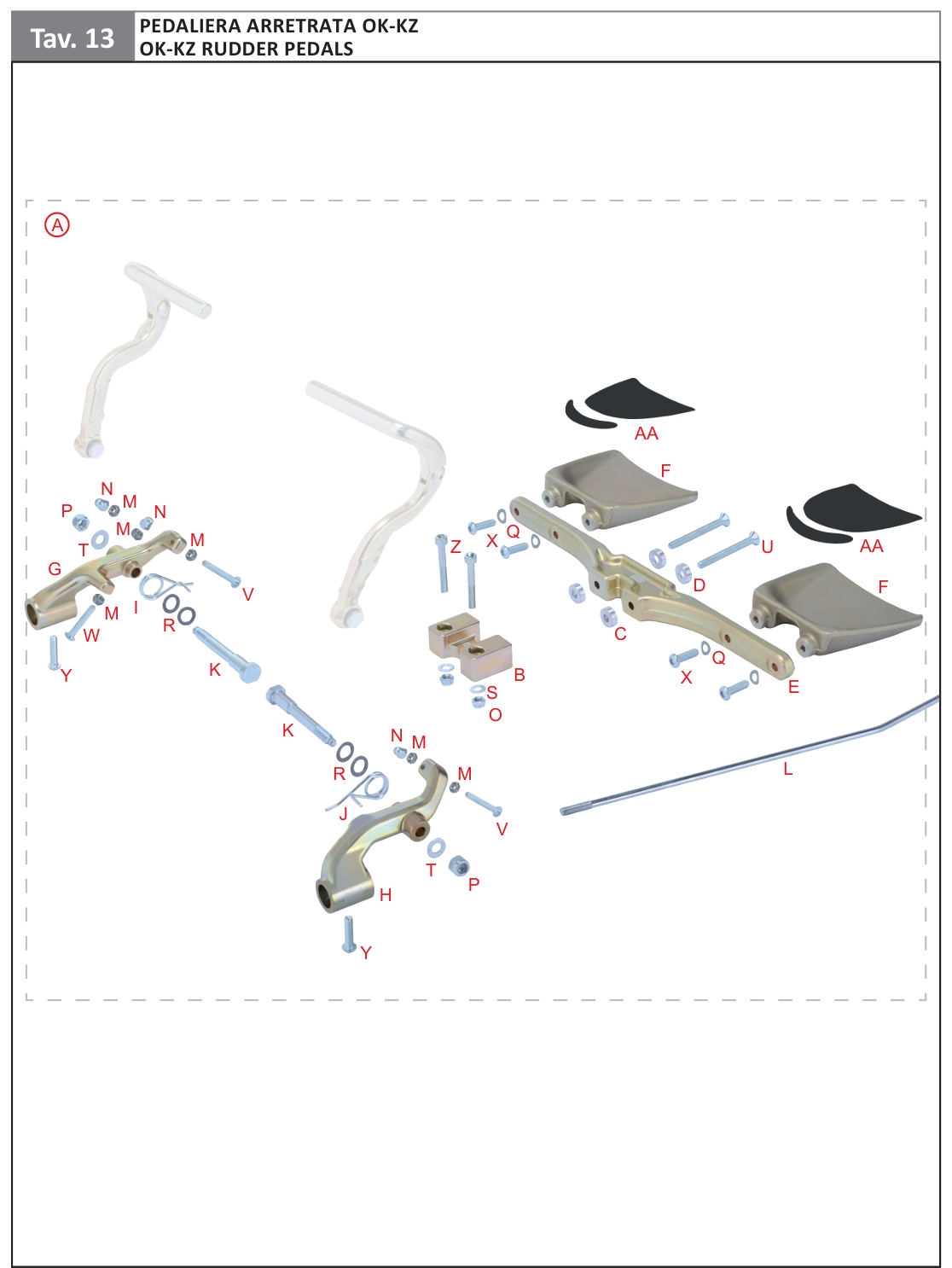

Table 13OK-KZ rudder pedals
OTK Table 13 exploded view
Ref.Part no.Description€ excl. VAT
A0010.00GAKITComplete AL rudder pedals330.00Buy here
B0010.00B2Support for adjustable footrest36.00Buy here
C0010.00B4Spacer 5 mm3.50Buy here
D0010.00CB5Rudder pedals countersunk washer1.50Buy here
E0010.00G1Rudder pedals support OK-KZ forged96.00Find in shop
F0010.00G2Rudder pedal foot OK-KZ forged36.50Buy here
G0014.DB3AAccelerator pedal support for rudder pedals54.50Buy here
H0015.DB3ABrake pedal support for rudder pedals54.00Buy here
I0016.DABReturn accelerator pedal springfor rudder pedals5.20Buy here
J0016.DBBReturn brake pedal springfor rudder pedals5.20Buy here
K0017.D0Adjustable pedal screw9.50Buy here
L0118.470ABrake pump bent control rod L.470 mm for rudder pedals14.50Buy here
MD.M5Nut M50.02/pcBuy here
ND.M5CIECHIBlind nut M50.05/pcBuy here
OD.M6A.B.A.B. nut M60.06/pcBuy here
PD.M8A.A.A.A. nut M80.09/pcBuy here
QR.E.6Spring washer Ø 6 mm0.06/pcBuy here
RR.P.10X16X1Washer Ø 10x16x1 mm0.08/pcBuy here
SR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
TR.P.8X17Washer Ø 8x17x1 mm0.05/pcBuy here
UV.TPSCEI6X55TPSCEI screw 6x55 mm0.24/pcBuy here
VV.TB5X30TB screw 5x30 mm0.31/pcBuy here
WV.TB5X35TB screw 5x35 mm0.31/pcBuy here
XV.TB6X20TB screw 6x20 mm0.21/pcBuy here
YV.TB6X25TB screw 6x25 mm0.21/pcBuy here
ZV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
AA0010.00G4Anti-slip Sticker2.50Buy here

* The rudder pedals kit does not include the adjustable pedals and one footrest support, as they are supplied with the chassis.

↑ Back to overview

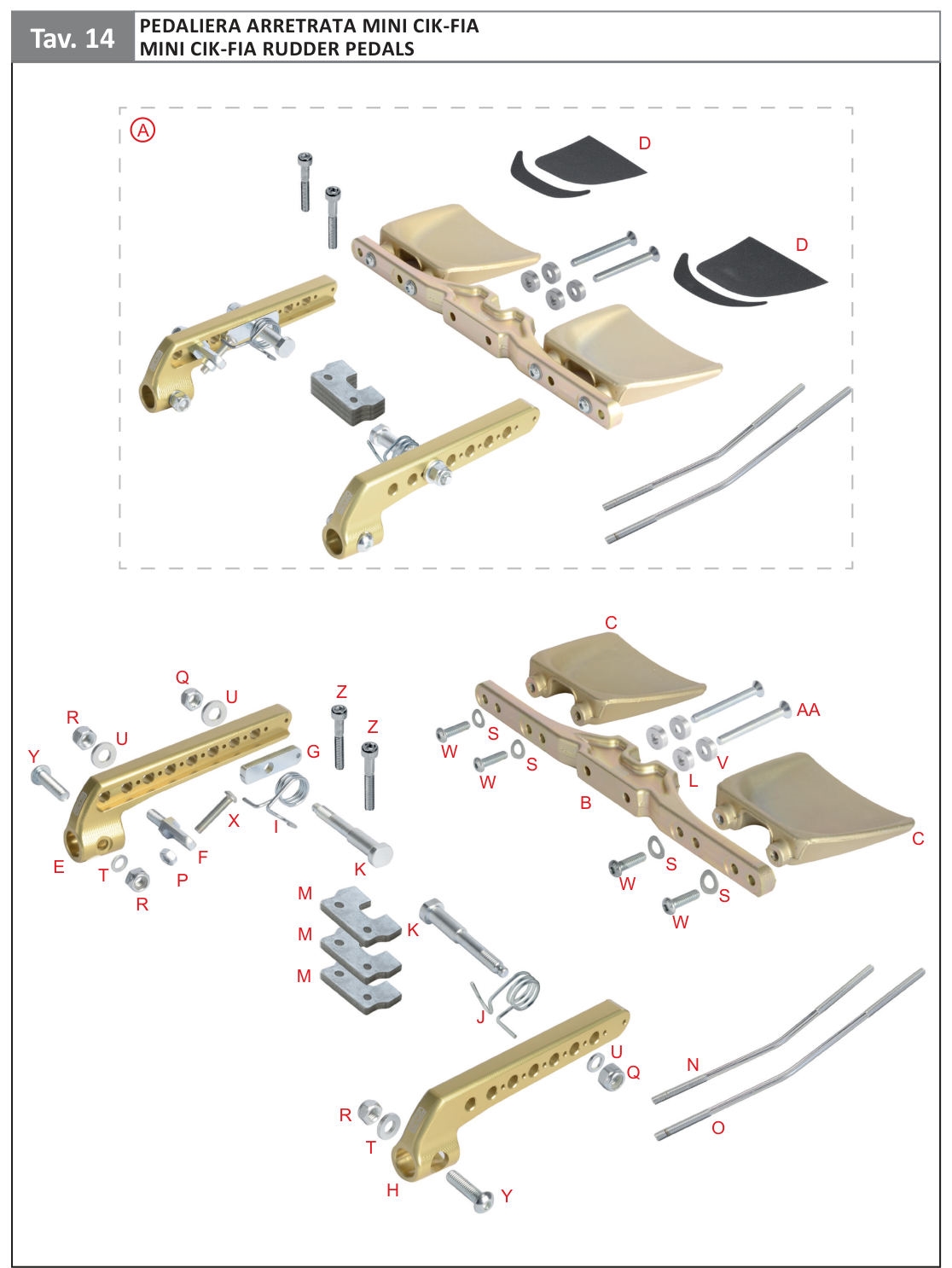

Table 14MINI CIK-FIA rudder pedals
OTK Table 14 exploded view
Ref.Part no.Description€ excl. VAT
A0010.00FKITComplete rudder pedals for Mini CIK-FIA330.00Buy here
B0010.00F1Rudder pedals support Mini CIK-FIA forged96.00Buy here
C0010.00G2Rudder pedal foot OK-KZ forged36.50Buy here
D0010.00G4Anti-slip Sticker2.50Buy here
E0014.00F3Accelerator pedal support for Mini CIK-FIA rudder pedals54.00Buy here
F0214.E0Accelerator locking plate for Mini CIK-FIA rudder pedals8.50Buy here
G0014.00F5Accelerator pedal spacer for Mini for Mini CIK- FIA rudder pedals4.20Buy here
H0015.00F3Brake pedal support for Mini CIK-FIA rudder pedals54.50Buy here
I0016.FABAccelerator Pedal spring for Mini CIK-FIA rudder pedals12.00Buy here
J0016.FBBBrake pedal spring for Mini CIK-FIA rudder pedals12.00Buy here
K0017.B0Pedal screw Neos - Rookie EV9.50Buy here
L0010.00B4Spacer 5 mm3.50Buy here
M0010.00B2BSupport for adjustable footrest 5 mm5.40Buy here
N0118.200ABrake pump bent control rod L.200 mm14.50Find in shop
O0118.240ABrake pump bent control rod L.240 mm14.50Find in shop
PD.M6Nut M60.03/pcBuy here
QD.M8A.A.A.A. nut M80.09/pcBuy here
RD.M8A.B.A.B. nut M80.08/pcBuy here
SR.E.6Spring washer Ø 6 mm0.06/pcBuy here
TR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
UR.P.8X17X3Washer Ø 8x17x3 mm0.12/pcBuy here
V0010.00CB5Rudder pedals countersunk washer1.50Buy here
WV.TB6X20TB screw 6x20 mm0.21/pcBuy here
XV.TB6X30TB screw 6x30 mm0.25/pcBuy here
YV.TB8X30TB screw 8x30 mm0.36/pcFind in shop
ZV.TCE6X40TCEI screw 6x40 mm0.14/pcBuy here
ZV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
AAV.TPSCEI6X55TPSCEI screw 6x55 mm0.24/pcBuy here
↑ Back to overview

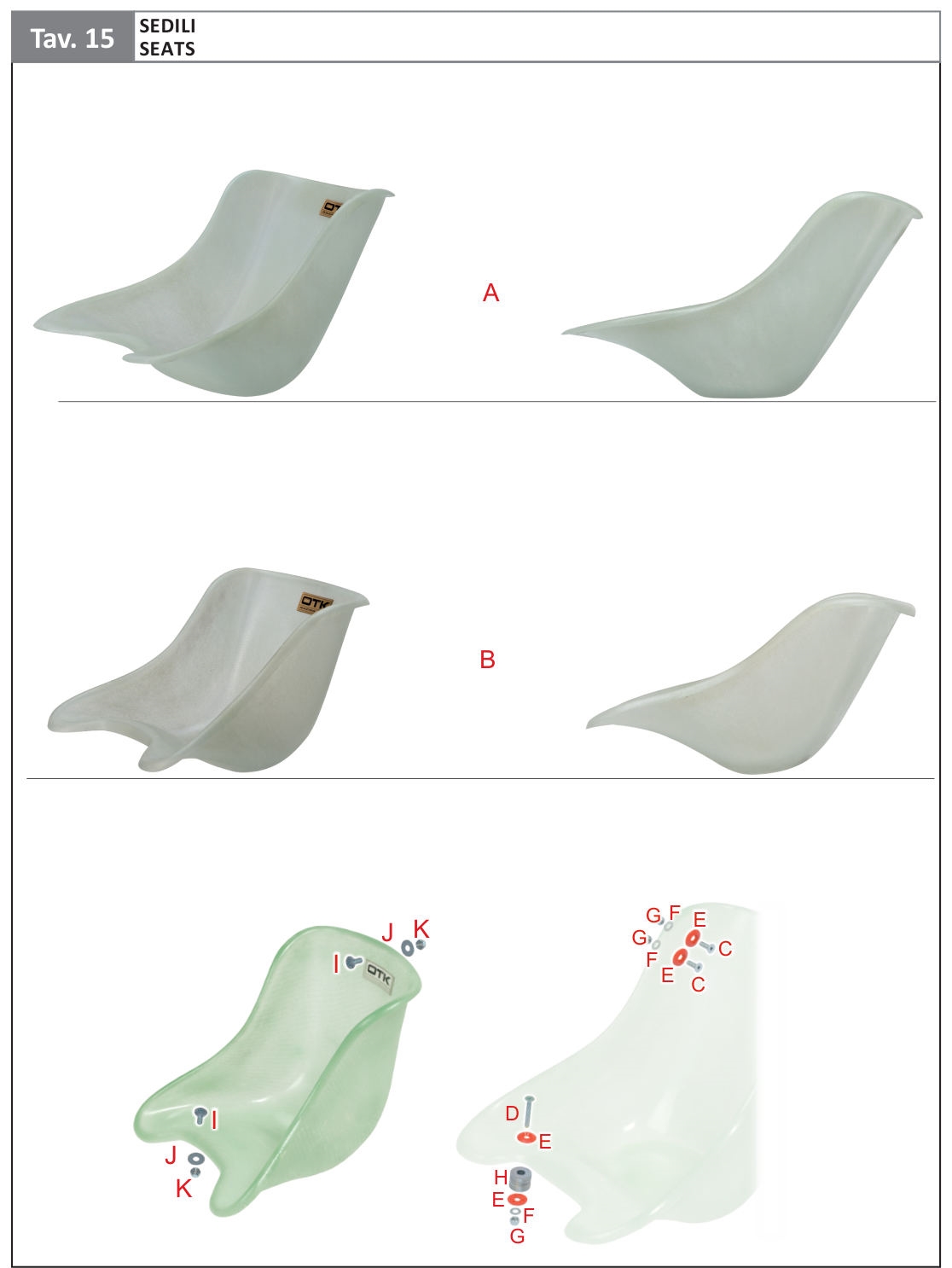

Table 15Seats
OTK Table 15 exploded view
Ref.Part no.Description€ excl. VAT
A0037.FP1Flat bottom seat - size 1°120.00Buy here
A0037.FP2Flat bottom seat - size 2°120.00Buy here
A0037.FP3Flat bottom seat - size 3°120.00Buy here
A0037.FP4Flat bottom seat - size 4°120.00Buy here
A0037.D03Flat bottom seat - size Junior108.00Buy here
A0037.D03AFlat bottom seat - size Junior S108.00Find in shop
A0037.D0Flat Bottom Mini seat - size 1°108.00Buy here
A0037.D2Flat Bottom Mini seat - size 2°108.00Buy here
B0037.E0Micro seat - size 1°102.00Buy here
CV.TPSCEI8X25TPSCEI screw 8x25 mm0.19/pcBuy here
DV.TPSCEI8X55TPSCEI screw 8x55 mm0.49/pcBuy here
E0087.00Seat washer Ø 8 mm Red0.57Buy here
E0087.00NSeat washer Ø 8 mm Black0.57Buy here
FR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
GD.M8A.A.A.A. nut M80.09/pcBuy here
R.P.10X30X2,5Washer Ø 10x30x2,5 mm0.15/pcBuy here
IV.TB6X15TB screw 6x15 mm0.14/pcBuy here
JR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
KD.M6A.B.A.B. nut M60.06/pcBuy here
0090.B0AL Washer Ø 8x30x2 mm1.50Find in shop
↑ Back to overview

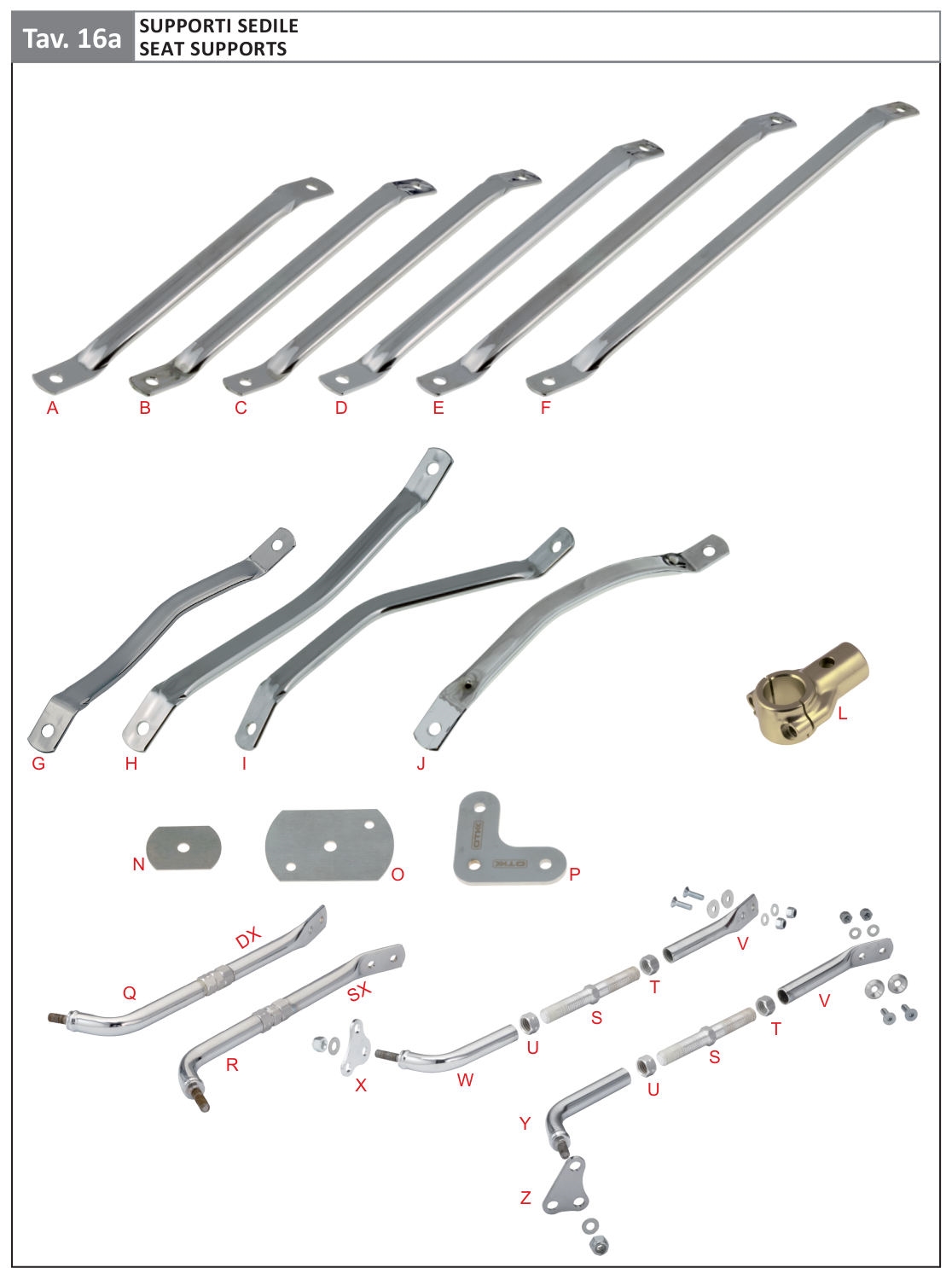

Table 16aSeat supports
OTK Table 16a exploded view
Ref.Part no.Description€ excl. VAT
A0006.280Additional seat support L. 280 mm16.00Buy here
B0006.300Additional seat support L. 300 mm16.00Buy here
C0006.320Additional seat support L. 320 mm16.00Buy here
D0006.340Additional seat support L. 340 mm16.00Buy here
E0006.380Additional seat support L. 380 mm16.00Buy here
F0006.400Additional seat support L. 400 mm16.00Buy here
G0007.300BAdditional seat support L. 300 mm with 2 bends - for KZ right18.00Buy here
H0007.340Bent additional seat support L. 340 mm17.00Buy here
I0007.320Right bent additional seat support L. 320 mm Rok17.00Find in shop
J0007.320BAdditional seat support L. 320 mm with 2 bends18.00Buy here
L0259.B0Locker Ø 28 mm for AL dismountable seat support54.00Buy here
N0239.0ASmall seat stiffener-plate2.50Buy here
O0239.00Big seat stiffener-plate2.70Buy here
P0239.A0Seat support extension-plate10.80Buy here
Q0006.B0DXKITComplete right additional adjustable seat support78.00Buy here
R0006.B0SXKITComplete left additional adjustable seat support78.00Buy here
S0006.B1Threaded pin for adjustable seat support19.50Buy here
T0006.B2Right nut M14 x 2 for adjustable seat sup-port3.70Buy here
U0006.B3Left nut M14 x 2 for adjustable seat support3.70Buy here
V0006.B4Adjustable support fastened to the seat18.50Buy here
W0006.B5ARight support fastened to the bearing carrier support26.50Buy here
X0006.B6BSmall platefor right adjustable seat support9.50Buy here
Y0006.B5CLeft support fastenedto the bearing carrier support26.50Buy here
Z0006.B6CSmall plate for left adjustable seat support9.50Buy here
↑ Back to overview

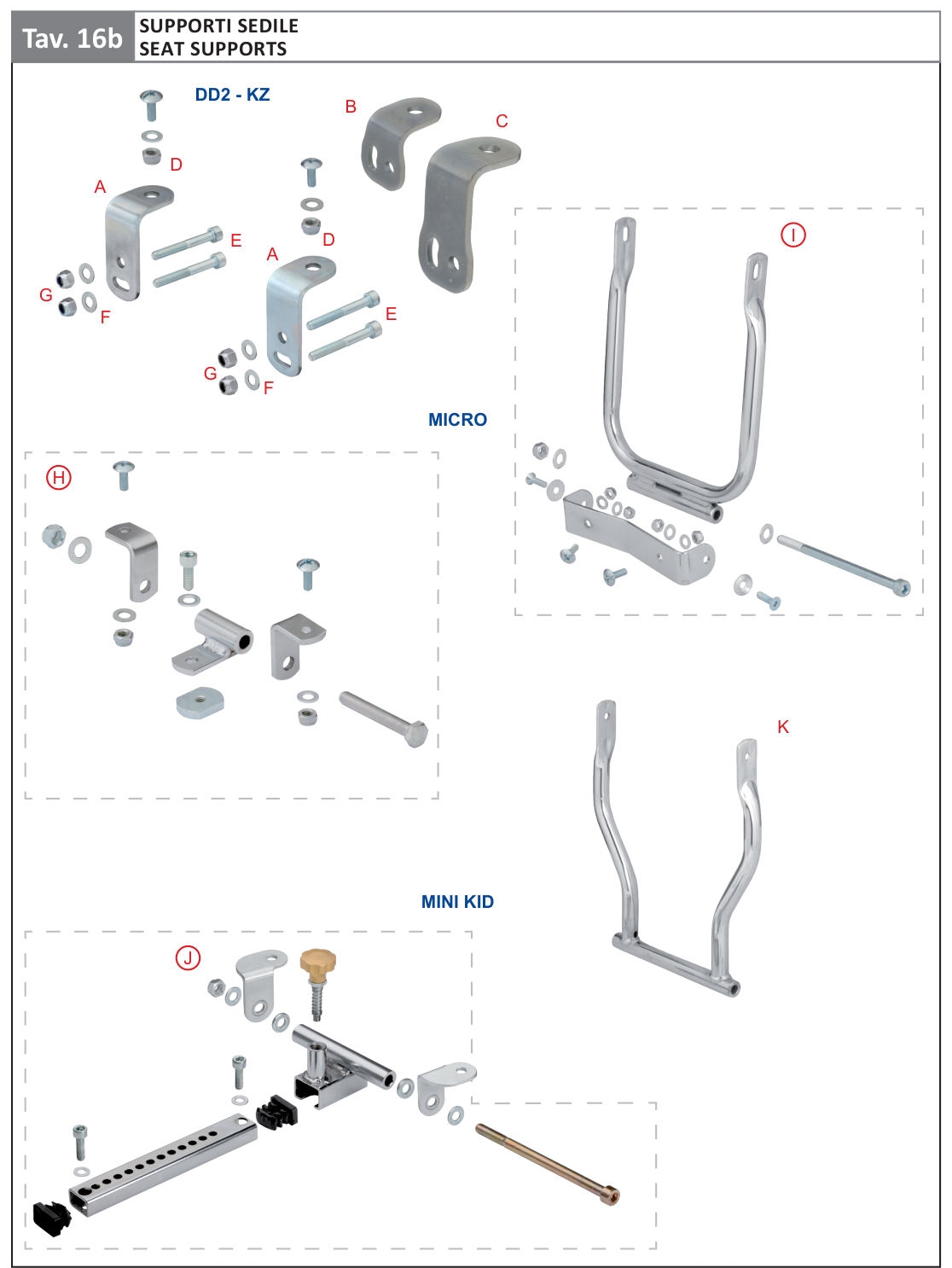

Table 16bSeat supports
OTK Table 16b exploded view
Ref.Part no.Description€ excl. VAT
A0237.C0Front seat support Kit for DD2 - KZ - OK9.00Buy here
B0237.BAFront seat support L. 24 mm9.50Buy here
C0237.BAAFront seat support L. 42 mm9.50Buy here
DD.M6A.B.A.B. nut M60.06/pcBuy here
EV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
FR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
GD.M6A.A.A.A. nut M60.06/pcBuy here
H0242.BAKITFront support kit for Micro seat26.50Find in shop
I0242.BBKITRear support kit for Micro seat38.50Find in shop
J0242.C0KITFront seat support Kit for Mini Kid38.50Find in shop
K0242.C6Rear seat support for Mini Kid34.00Find in shop
↑ Back to overview

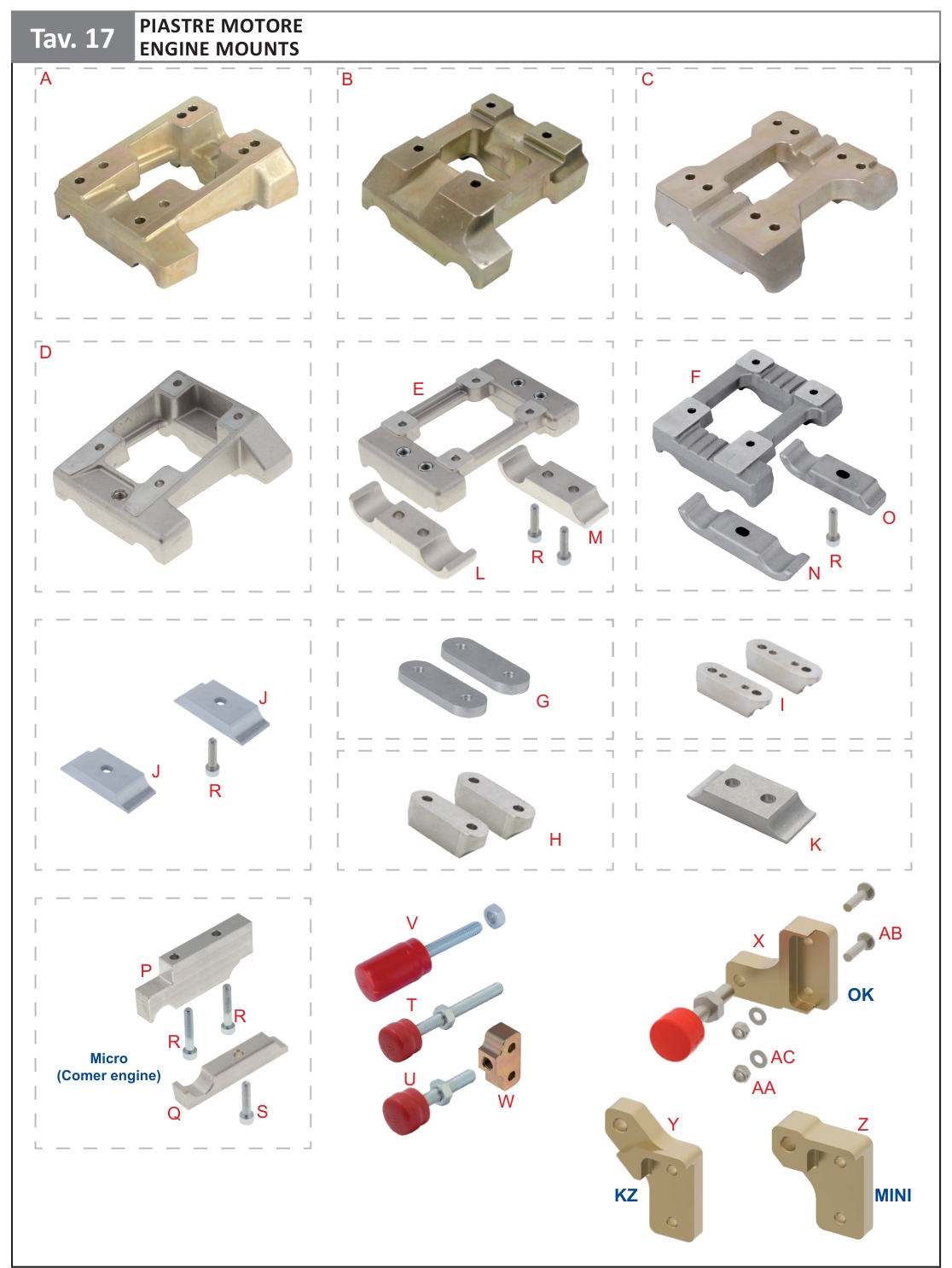

Table 17Engine mounts
OTK Table 17 exploded view
Ref.Part no.Description€ excl. VAT
A0038.D0DInclined MG engine mount 92x30 mm110.00Find in shop
A0038.D0DFInclined MG engine mount 92x30 mm drilled115.00Buy here
B0038.DACFInclined MG engine mount 92x30 mm OK115.00Buy here
C0038.D0EFFlat MG engine mount 92x30 mm OK - DVS - X30115.00Buy here
D0038.A0Inclined AL engine mount 92x28 mm58.00Find in shop
D0038.A0FInclined AL engine mount 92x28 mm drilled62.00Buy here
E0038.R28Flat AL engine mount 92x28 mm Rok60.00Buy here
E0038.R30Flat AL engine mount 92x30 mm Rok60.00Buy here
E0038.R32Flat AL engine mount 92x32 mm Rok60.00Buy here
F0038.ABEngine mount AL Mini / Mini Kid drilled57.00Buy here
G0038.D0A1DD2 engine mount spacer 8 mm20.50Buy here
H0038.D0A5AL DD2 engine mount spacer 21 mm Ø30 mm20.50Buy here
I0038.D0A6FE DD2 engine mount spacer 23 mm Ø32 mm20.50Buy here
J0039.AA28AAL engine mount bracket 1 screw 92x28 mm17.00Buy here
J0039.AA30AAL engine mount bracket 1 screw 92x30 mm17.00Buy here
K0039.VA30AAL rear engine mount bracket 2 screws 92x30 mm18.00Buy here
L0039.V28AL engine mount bracket 2 screws 92x28 mm17.00Find in shop
L0039.V32AL engine mount bracket 2 screws 92x32 mm17.00Buy here
M0039.V28AAL rear engine mount bracket 2 screws 92x28 mm17.00Find in shop
M0039.V32AAL rear engine mount bracket 2 screws 92x32 mm17.00Buy here
N0039.AB28AL engine mount bracket 1 screw 28 mm for Mini and Micro13.50Buy here
O0039.AB28AAL rear engine mount bracket 1 screw 28 mm for Mini - Micro13.50Buy here
P0038.EAAL upper bracket for Micro Comer engine25.50Buy here
Q0039.EAAL lower bracket for Micro Comer engine19.30Buy here
RV.TCE10X35TCEI screw 10x35 mm0.34/pcBuy here
RV.TCE10X40TCEI screw 10x40 mm0.36/pcBuy here
RV.TCE10X50TCEI screw 10x50 mm0.45/pcBuy here
SV.TCE8X35TCEI screw 8x35 mm0.23/pcBuy here
T0110.B0M10 chain strecher for OK5.50Buy here
U0110.A0M10 chain strecher for KZ6.70Buy here
V0110.B0AM10x50 mm long chain strecher5.50Buy here
W0109.BBSupport for M10 chain strecher17.00Buy here
X0109.BFSupport for M10 chain strecher for OK45.00Buy here
Y0109.BDSupport for M10 chain strecher for KZ33.50Buy here
Z0109.BESupport for M10 chain strecher for Mini26.00Buy here
AAD.M6A.B.A.B. nut M60.06/pcBuy here
AB0256.M6X24Special bolt 6x24 mm for exhaust support0.39/pcBuy here
ACR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
↑ Back to overview

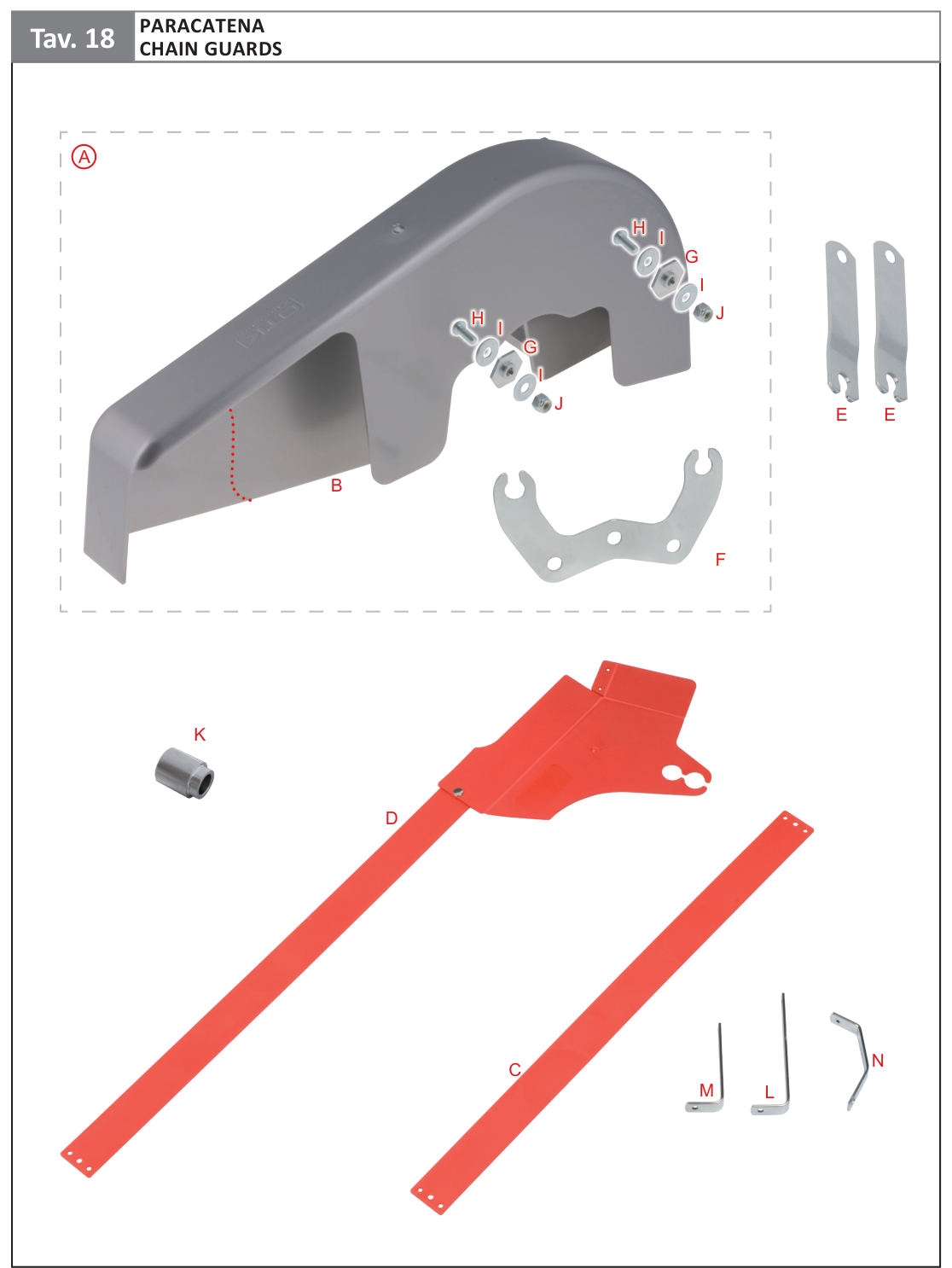

Table 18Chain guards
OTK Table 18 exploded view
Ref.Part no.Description€ excl. VAT
A0042.CBKITC *Complete integral chain guard kit56.50Buy here
B0042.CA *Integral chain guard32.00Buy here
C0041.00 *“Stripe type” chain guard4.00Buy here
D0042.00Chain guard with pinion protection9.50Find in shop
E0043.C0One pieces Integral chain guard support Mini6.20Buy here
F0043.D0One pieces Integral chain guard support14.00Buy here
G0043.C1Fixing bush for integral chain guard3.65Buy here
HV.TB6X16TB screw 6x16 mm0.14/pcBuy here
IR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
JD.M6A.B.A.B. nut M60.06/pcBuy here
K0086.001Spacer busher2.50Buy here
L0043.00Chain guard support L.130 mm7.30Buy here
M0043.0AChain guard support L.90 mm7.30Buy here
N0043.A0Chain guard support L.130 mm for chassis with gear shift6.20Buy here

* Cut the chain guard to adapt it to the different types of engines.

↑ Back to overview

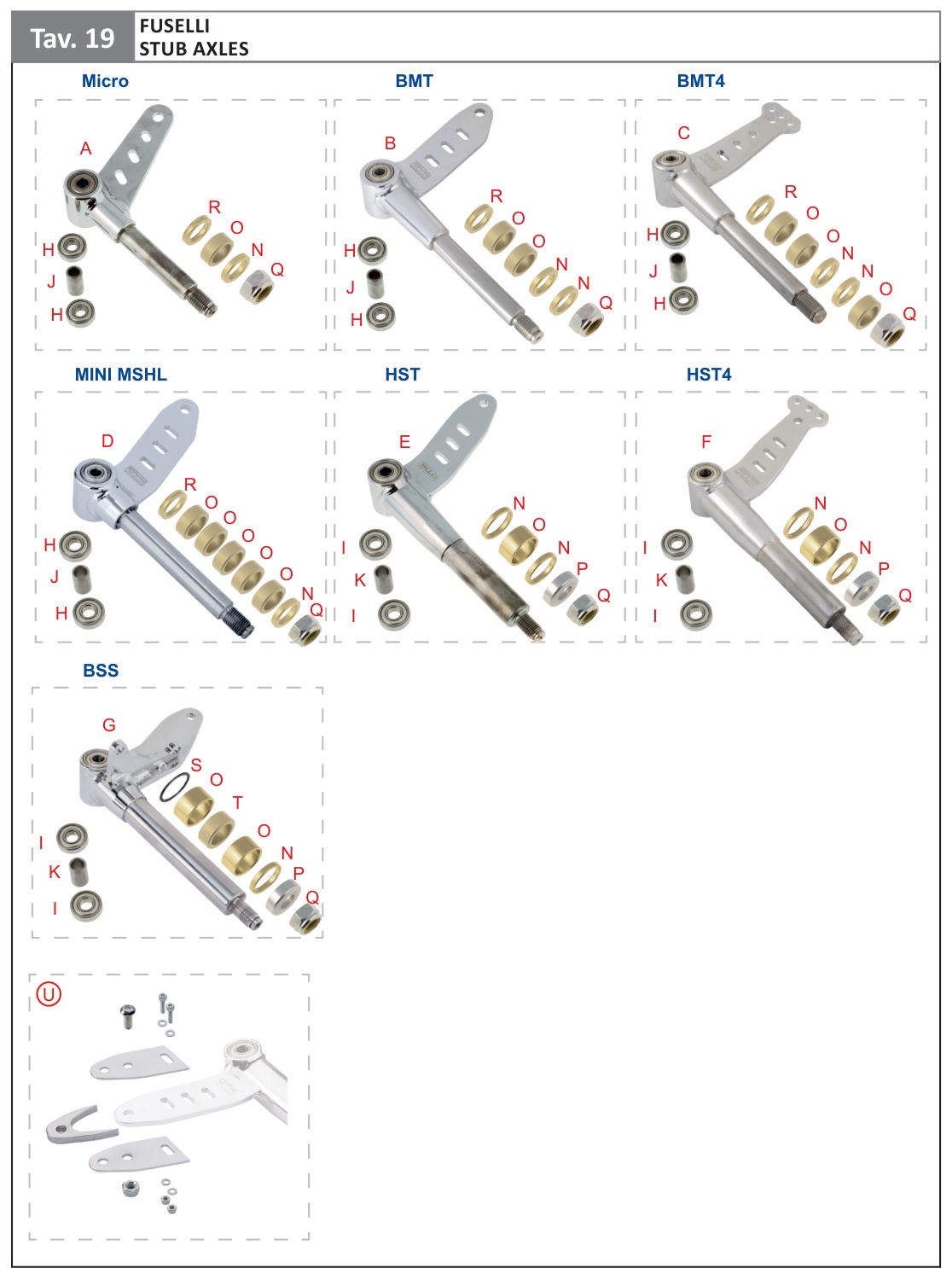

Table 19Stub axles
OTK Table 19 exploded view
Ref.Part no.Description€ excl. VAT
A0092.E0DXKITRight Micro stub axle with bearings82.00Buy here
A0092.E0SXKITLeft Micro stub axle with bearings82.00Buy here
B0092.00BEDXKITRight BMT stub axle with bearings96.00Buy here
B0092.00BESXKITLeft BMT stub axle with bearings96.00Buy here
C0092.00BHDXKITRight BMT4 stub axle with bearings96.00Buy here
C0092.00BHSXKITLeft BMT4 stub axle with bearings96.00Buy here
D0092.00BCLDXKITRight Mini MSHL stub axle with bearings96.00Buy here
D0092.00BCLSXKITLeft Mini MSHL stub axle with bearings96.00Buy here
E0092.00CDXKITRight HST SA2-BSD stub axle with bearings113.00Buy here
E0092.00CSXKITLeft HST SA2-BSD stub axle with bearings113.00Buy here
E0092.00CBDXKITRight HST 1B SA2 stub axle with bearings113.00Buy here
E0092.00CBSXKITLeft HST 1B SA2 stub axle with bearings113.00Buy here
F0092.00MDXKITRight HST4 stub axle with bearings140.00Buy here
F0092.00MSXKITLeft HST4 stub axle with bearings140.00Buy here
G0092.B0EDXKITRight BSS KZ stub axle with bearings143.00Buy here
G0092.B0ESXKITLeft BSS KZ stub axle with bearings143.00Buy here
G0092.B0EBDXKITRight 1B BSS stub axle with bearings143.00Buy here
G0092.B0EBSXKITLeft 1B BSS stub axle with bearings143.00Buy here
H0019.00Stub axle bearing Ø 8x22 mm1.25Buy here
I0019.A0Stub axle bearing Ø 10x26 mm1.90Buy here
J0020.00Bearing spacer for Ø 8x24 mm stub axle3.10Buy here
K0020.C0Bearing spacer for Ø 10 mm stub axle3.10Buy here
L0021.00BST wheel spacer 5 mm1.80Buy here
M0022.00BST wheel spacer 10 mm2.40Buy here
N0021.C0HST wheel spacer 5 mm2.35Buy here
O0022.C0HST wheel spacer 15 mm2.60Buy here
P0023.D0Locking spacer for HST stub axle2.60Buy here
QD.M14X1,5A.B. nut M14x1,5 mm0.34/pcBuy here
R0021.A0BST Radiate wheel spacer 5 mm2.10Buy here
S0021.CAHST wheel spacer 1 mm for 2 bearings BSS disk hub3.65Buy here
T0022.CABSS wheel spacer 10 mm2.55Buy here
U0092.00KITKit extension stub axle's plate42.00Buy here
↑ Back to overview

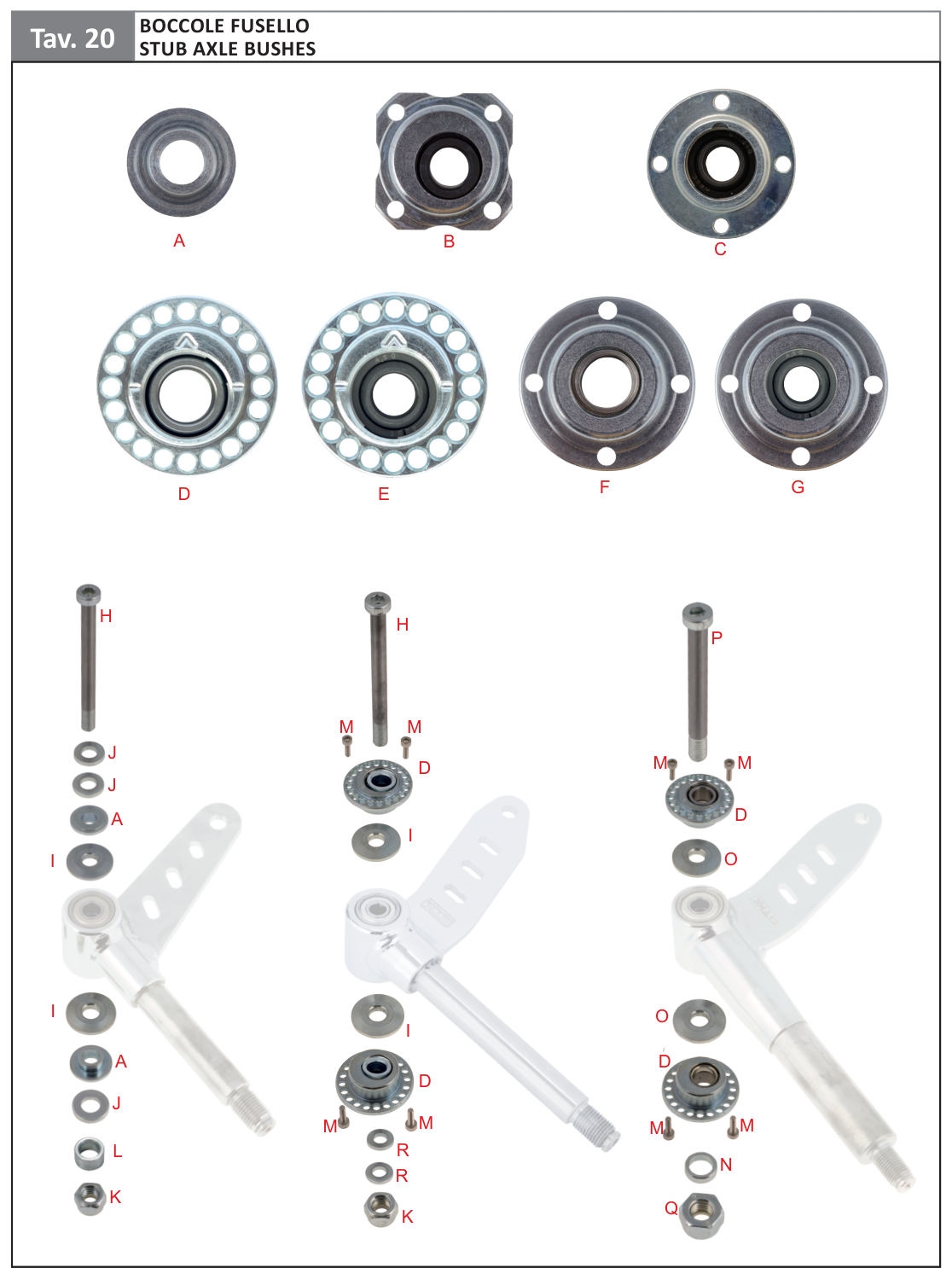

Table 20Stub axle bushes
OTK Table 20 exploded view
Ref.Part no.Description€ excl. VAT
A0212.00Bush Ø 12 mm7.35Buy here
B0211.A0KITComplete eccentric bush Ø 22 - 8 mm38.00Find in shop
C0212.AAKITComplete bush Ø 22 - 8 mm38.00Buy here
D0211.D0KITComplete HST eccentric bush Ø 22 - 10 mm47.00Buy here
E0211.AAKITComplete eccentric bush Ø 22 - 8 mm48.00Buy here
F0212.D0KITComplete HST bush Ø 22 - 10 mm48.00Buy here
G0212.AAKITConcentric bush Ø 22 - 8 mm38.00Buy here
H0018.A0BST stub axle screw 8x90 mm4.20Buy here
H0018.A0FDrilled BST stub axle screw 8x90 mm5.50Find in shop
I0215.0AStub axle spacer MSHL 8x24x3 mm2.80Find in shop
JR.P.8X17X3Washer Ø 8x17x3 mm0.12/pcBuy here
KD.M8A.A.A.A. nut M80.09/pcBuy here
L0211.A4Washer Ø 8x7mm for bush Ø 22 - 8 mm1.30Buy here
MV.TCEX3X10Inox TCEI screw 3x10 mm0.19/pcBuy here
N0211.D4Washer Ø 10x4,5 mm2.50Buy here
O0215.CBHST stub axle spacer Ø 10x24x3 mm2.80Buy here
P0018.C0HST stub axle screw 10x90 mm4.20Buy here
P0018.C0FDrilled HST stub axle screw 10x90 mm5.50Find in shop
QD.M10A.A.A.A. nut M100.21/pcBuy here
RR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
0255.00Spring for drilled screws0.73Buy here
↑ Back to overview

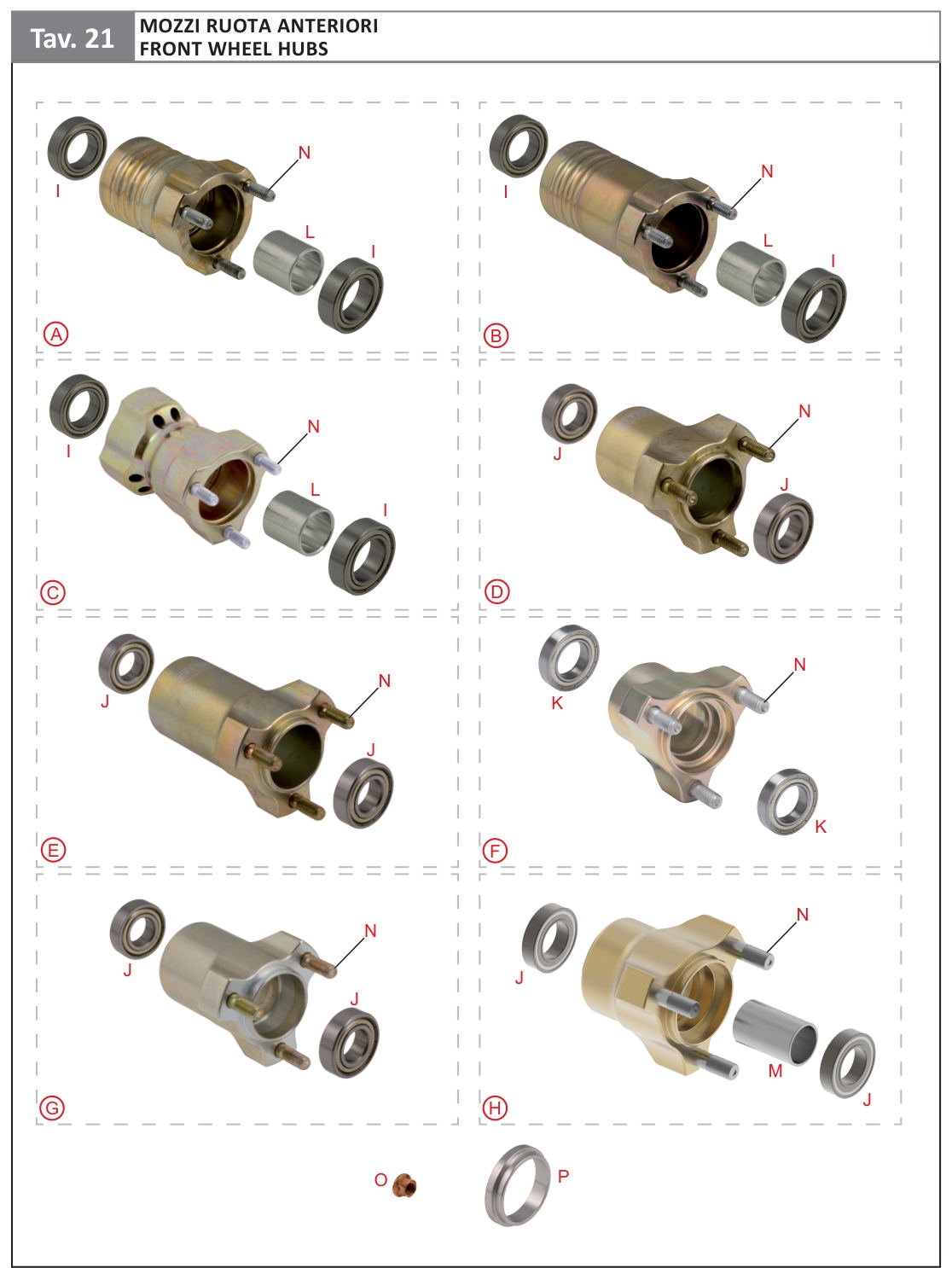

Table 21Front wheel hubs
OTK Table 21 exploded view
Ref.Part no.Description€ excl. VAT
A0103.C0CKITComplete HST MG hub L.80 mm104.00Buy here
B0103.C0EKITComplete HST MG hub L.95 mm112.00Buy here
B0103.C0DKITComplete HST MG hub L.110 mm114.00Buy here
C0103.GGKITComplete BSS-SA3 MG hub L.90 mm143.00Buy here
D0103.C0AKITComplete BST MG hub L.60 mm82.00Find in shop
D0103.C0BKITComplete BST MG hub L.75 mm82.00Buy here
E0103.C0KITComplete BST MG hub L.95 mm82.00Buy here
F0103.F0CKITComplete BST AL hub L.53 mm60.00Buy here
F0103.F0AKITComplete BST AL hub L.60 mm57.00Buy here
G0103.F0BKITComplete BST AL hub L.75 mm62.00Buy here
H0103.C0FKITComplete BST MG hub L.53 mm90.00Buy here
I0024.BAHub bearing Ø 25/42x12 mm8.00Buy here
J0024.00Hub bearing Ø 17-35 mm2.50Buy here
K0024.A0Hub bearing Ø 17-30 mm3.70Buy here
L0023.CBBearings spacer for HST MG hub3.70Buy here
M0023.C0FBearings spacer for BST hub2.40Find in shop
N0045.00Wheel stud0.72/pcBuy here
O0044.B0Wheel hexagonal self-locking nut0.60/pcBuy here
P0125.00Spacer ring for HST wheel hub3.70Buy here
↑ Back to overview

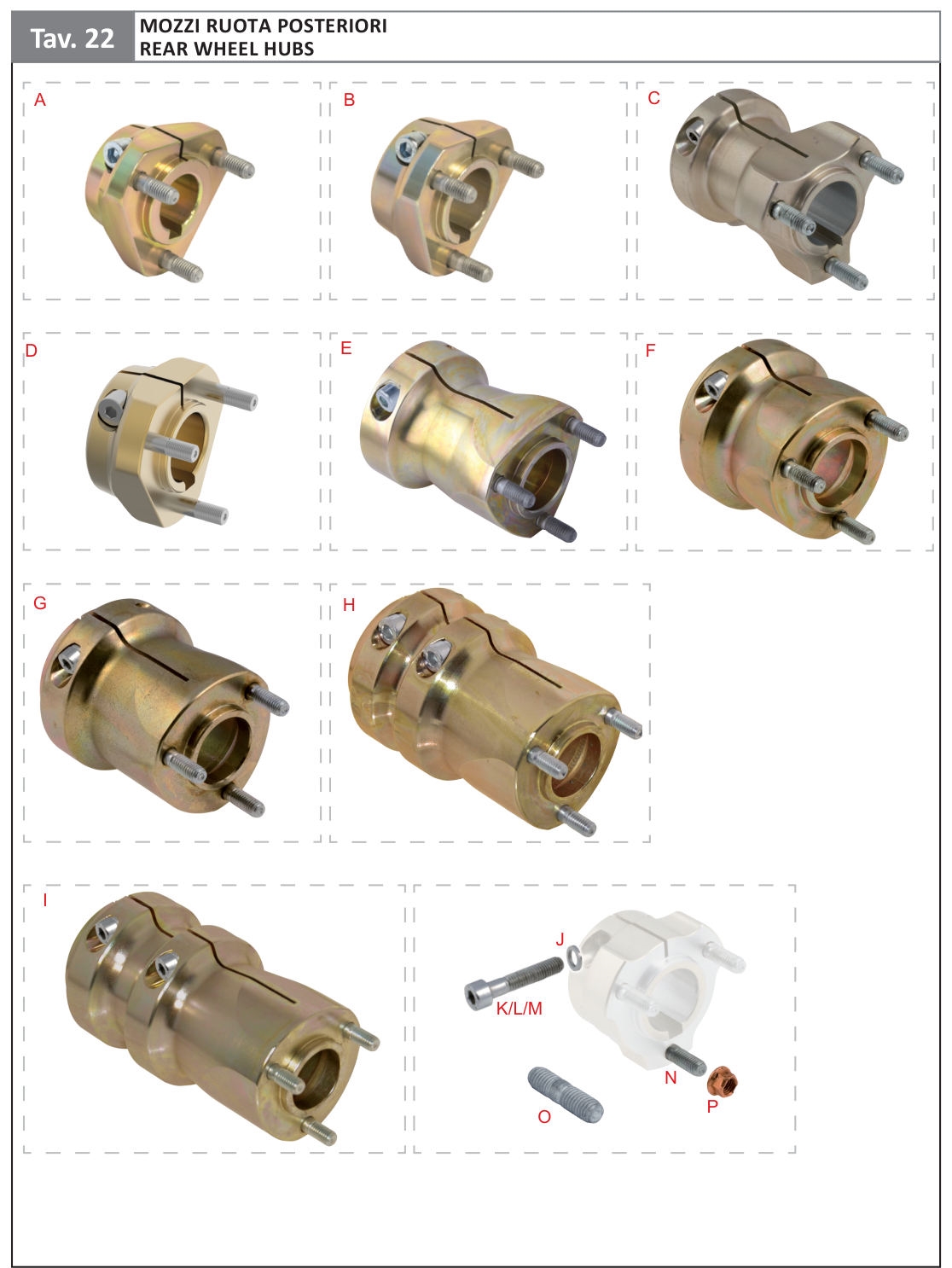

Table 22Rear wheel hubs
OTK Table 22 exploded view
Ref.Part no.Description€ excl. VAT
A0046.C0CAL wheel hub Ø 25x37 mm55.00Find in shop
B0046.00CAL wheel hub Ø 30x37 mm55.00Buy here
C0053.B0AAL wheel hub Ø 30x84 mm66.00Buy here
D0046.D0CMG wheel hub Ø 30x37 mm93.00Find in shop
E0053.A0MG wheel hub Ø 40x92 mm114.00Buy here
F0046.E0MG wheel hub Ø 50x77 mm102.00Buy here
G0053.E0MG wheel hub Ø 50x92 mm107.00Buy here
H0053.EAMG wheel hub Ø 50x115 mm143.00Buy here
I0053.F0MG wheel hub Ø 50x148 mm153.00Buy here
JR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
KV.TCE8X30TCEI screw 8x30 mm0.21/pcBuy here
LV.TCE8X35TCEI screw 8x35 mm0.23/pcBuy here
MV.TCE8X40TCEI screw 8x40 mm0.24/pcBuy here
N0045.00Wheel stud0.72/pcBuy here
O0045.A0Wheel stud short0.72/pcFind in shop
P0044.B0Wheel hexagonal self-locking nut0.60/pcBuy here
↑ Back to overview
Table 23Sprocket hubs

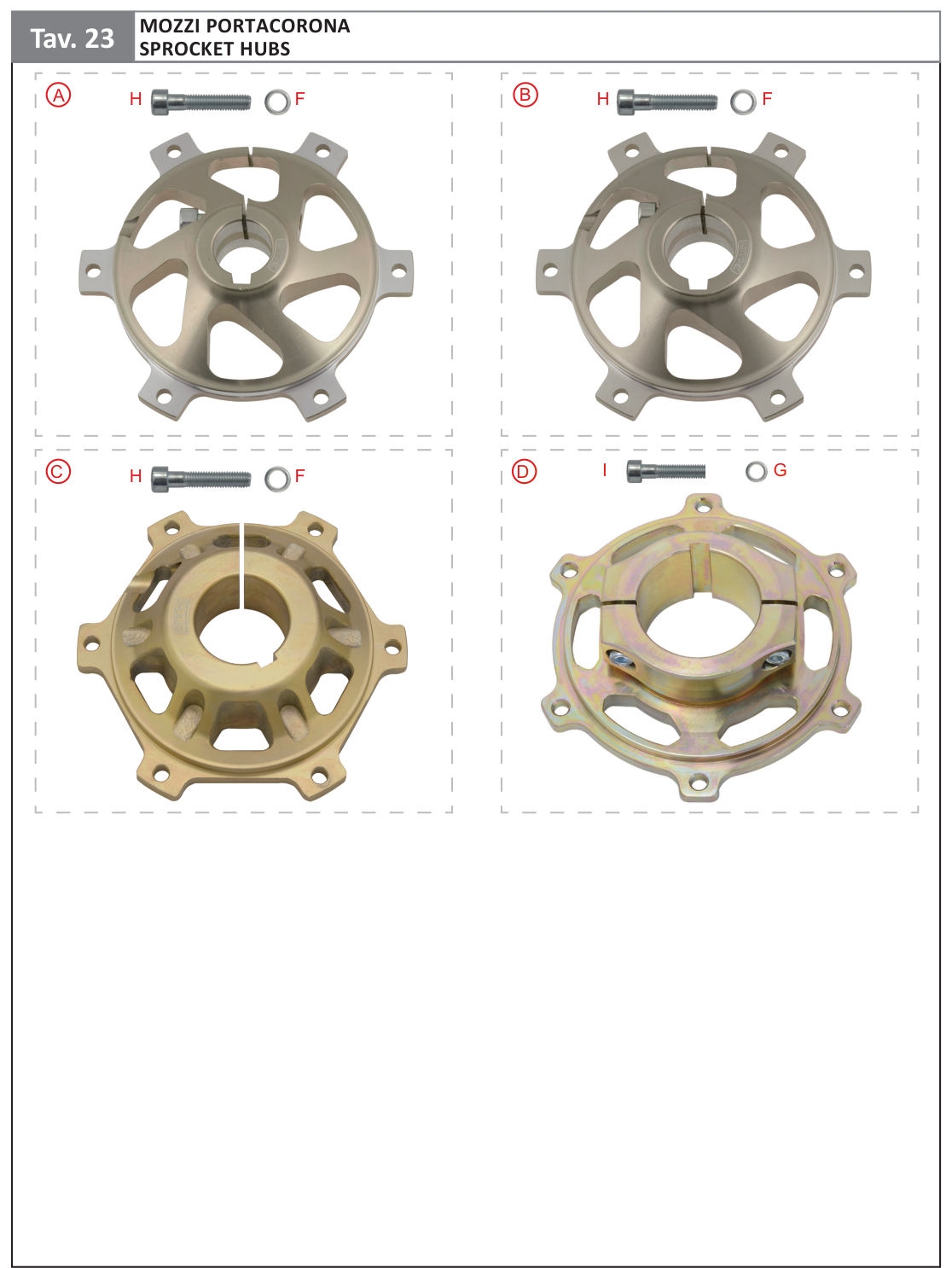

OTK Table 23 exploded view
Ref.Part no.Description€ excl. VAT
A0047.C0AAL sprocket’s hub Ø 25 mm90.00Buy here
B0047.B0AAL sprocket’s hub Ø 30 mm90.00Buy here
C0047.DBMG sprocket’s hub Ø 40 mm80.50Find in shop
D0047.FASprocket hub double connection114.00Buy here
FR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
GR.P.6X11Washer Ø 6,4x11x1,5 mm0.03/pcBuy here
HV.TCE8X40TCEI screw 8x40 mm0.24/pcBuy here
IV.TCE6X30TCEI screw 6x30 mm0.11/pcBuy here
↑ Back to overview

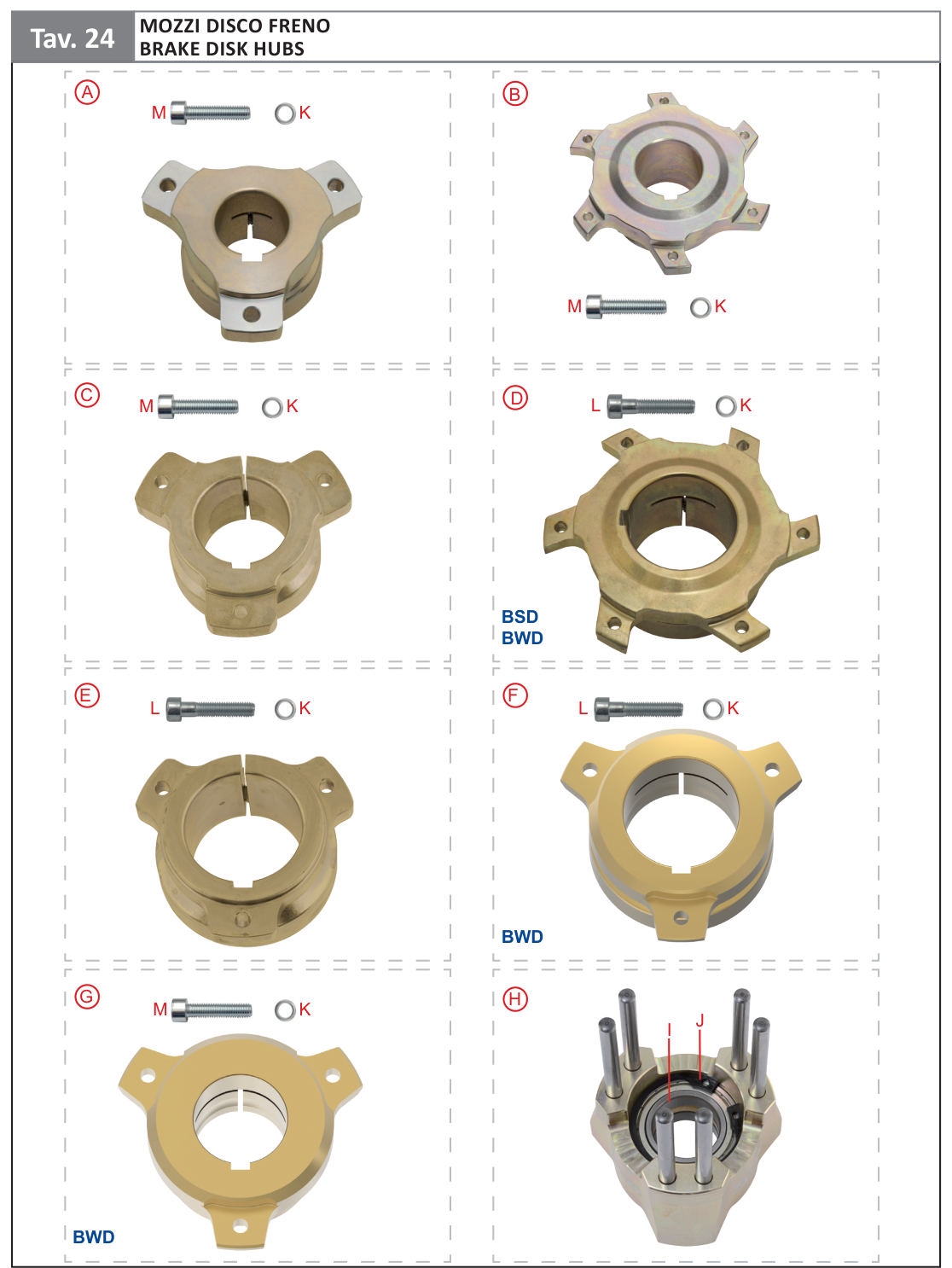

Table 24Brake disk hubs
OTK Table 24 exploded view
Ref.Part no.Description€ excl. VAT
A0052.A0CAL disk's hub Ø 30 mm for Rookie brake disk64.00Buy here
B0052.DCMG disk’s hub Ø 40 mm for brake disk Ø 206x16 mm111.00Buy here
C0052.DAMG disk’s hub Ø 40 mm for self-vetilated brake disk Ø 180 mm96.00Buy here
D0052.ECBSD / BWD MG disk’s hub Ø 50 mm for self- vetilated brake disk Ø 206x16 mm113.00Buy here
E0052.EAMG disk’s hub Ø 50mm for self-vetilated brake disk Ø 180 mm93.00Buy here
F0052.EHBWD MG disk’s hub for brake disk Ø 50x180 mm113.00Buy here
G0052.DFBWD MG disk’s hub for brake disk Ø 40x180 mm96.00Buy here
H0103.GACKITComplete BSS front disk’s hub132.00Buy here
I0024.B0Wheel's bearing Ø 25/42x9 mm5.50Buy here
J0103.G2Seeger for disk’s hub0.31/pcBuy here
KR.P.8X12Washer Ø 8x12x2 mm0.04/pcBuy here
LV.TCE8X40TCEI screw 8x40 mm0.24/pcBuy here
MV.TCE8X35TCEI screw 8x35 mm0.23/pcBuy here
↑ Back to overview

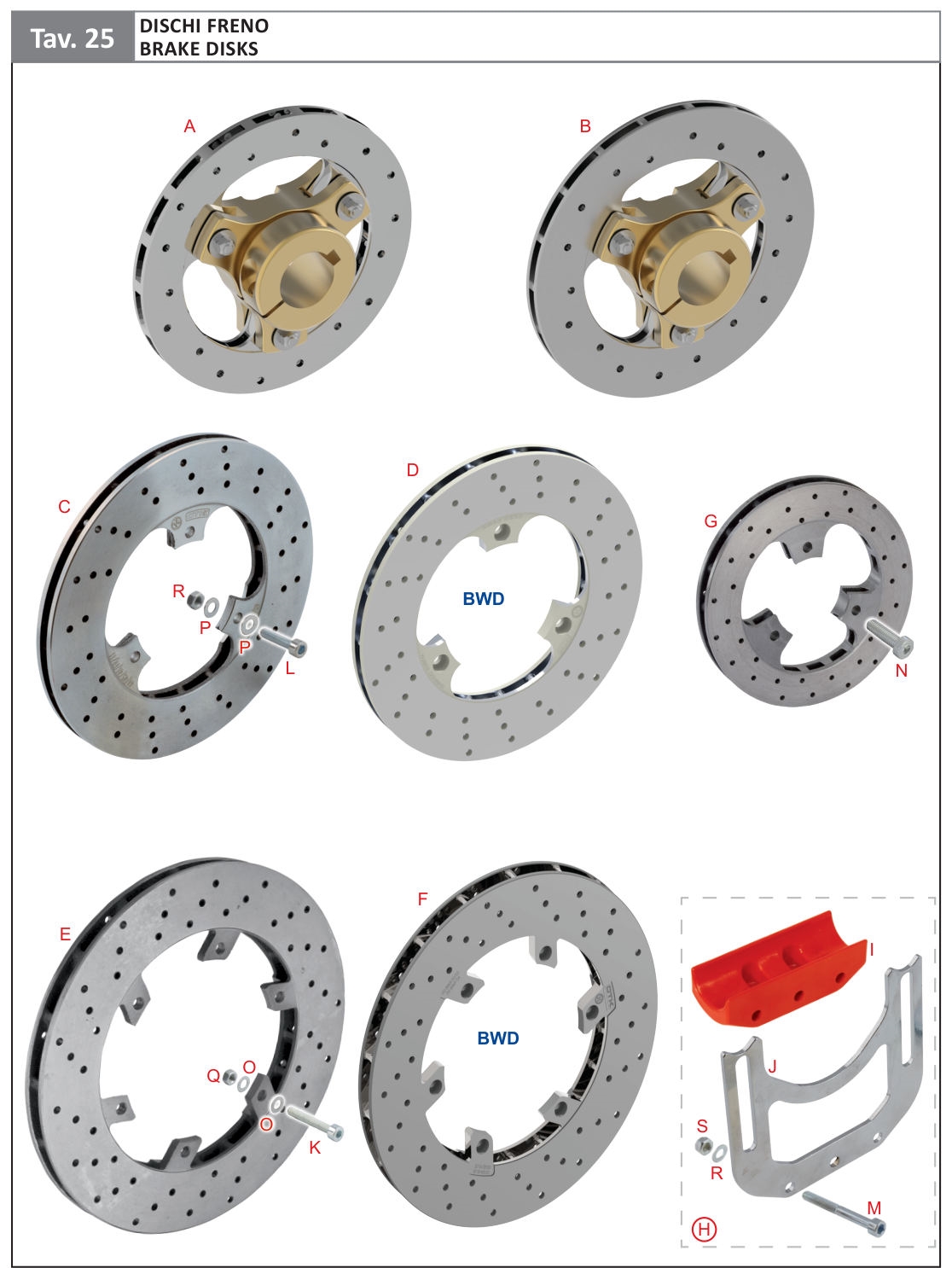

Table 25Brake disks
OTK Table 25 exploded view
Ref.Part no.Description€ excl. VAT
AG.D.AL30-149FLHub AL Ø 30 mm + floating brake disk Ø 149x10 mm201.00Buy here
BG.D.AL30-160FLHub AL Ø 30 mm + floating brake disk Ø 160x10 mm204.00Buy here
C0051.D0Self-ventilated rear brake disk Ø 180x13 mm145.00Buy here
D0051.DEBWD Self-ventilated rear brake disk Ø 180x13 mm145.00Buy here
E0051.DCSelf-ventilated rear brake disk Ø 206x16 mm180.00Buy here
F0051.DFBWD Self-ventilated rear brake disk Ø 206x16 mm180.00Buy here
G0101.H0DXRight front brake disk BSS KZ116.00Buy here
G0101.H0SXLeft front brake disk BSS KZ116.00Buy here
H0257.00KITProtection kit for brake disk Ø 206x16 mm OK52.00Buy here
H0257.C0KITProtection kit for brake disk Ø 206x16 mm KZ56.00Buy here
H0257.D0KITProtection kit for brake disk Ø 206x16 mm DD256.00Buy here
I0257.01Nylon protection for brake disk Ø 206x16 mm Red35.00Buy here
I0257.01NNylon protection for brake disk Ø 206x16 mm Black35.00Buy here
J0257.02Disk protection's fixing plate OK15.50Buy here
J0257.C2Disk protection's fixing plate KZ19.00Buy here
J0257.D2Disk protection's fixing plate DD219.00Buy here
KV.TCE5X25TCEI screw 5x25 mm0.10/pcBuy here
LV.TCE6X25TCEI screw 6x25 mm0.11/pcBuy here
MV.TCE6X50TCEI screw 6x50 mm0.19/pcBuy here
NV.TCER6X20TCEI Cut allen screw 6x20 mm0.11/pcBuy here
OR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
PR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
QD.M5CMetal self-locking nut M50.07/pcBuy here
RD.M6CMetal self-locking nut M60.08/pcBuy here
SD.M6A.B.A.B. nut M60.06/pcBuy here
↑ Back to overview
Table 26Magnesium wheels

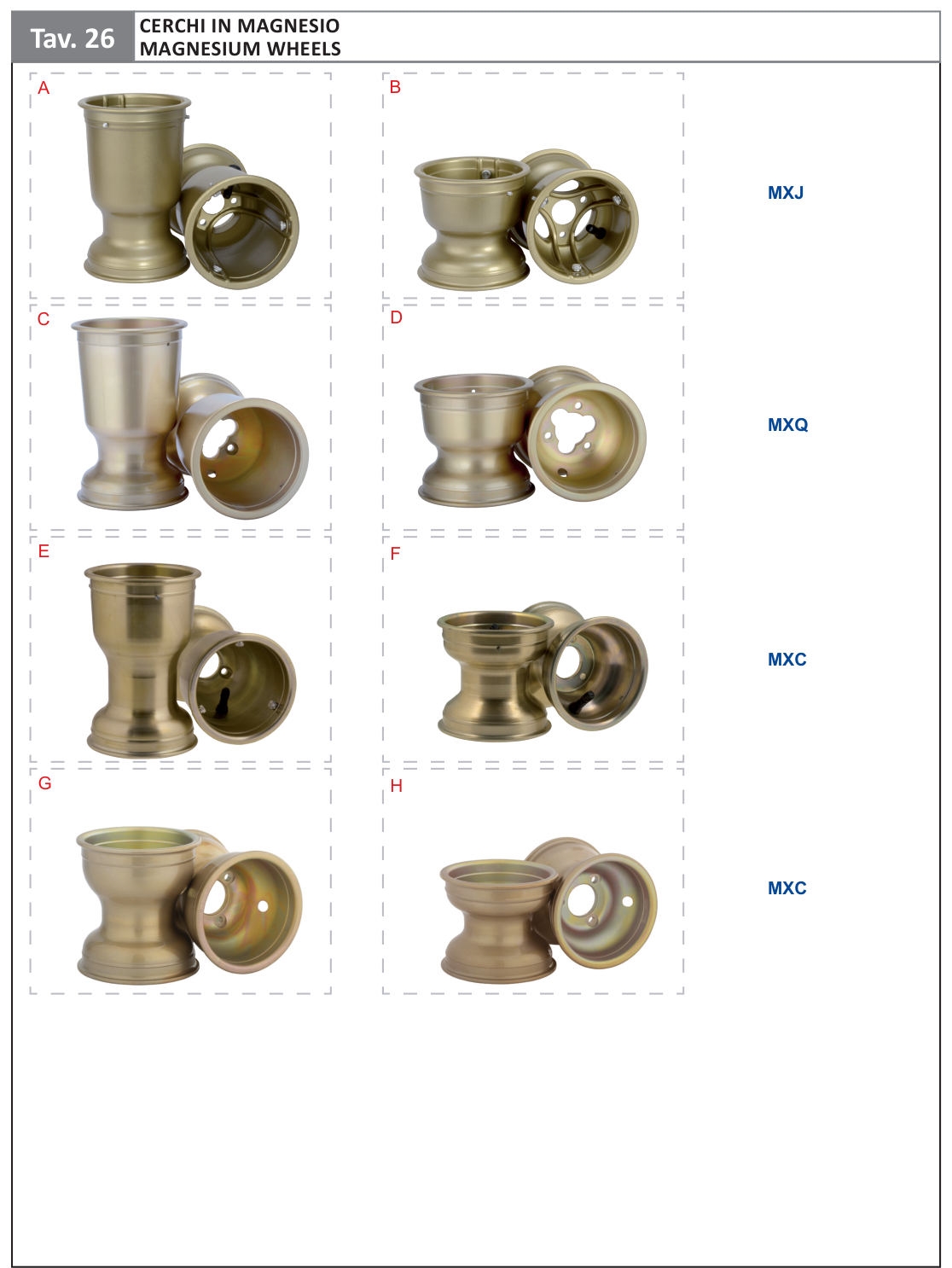

OTK Table 26 exploded view
Ref.Part no.Description€ excl. VAT
A0070.C0DMG wheel MXJ 210 mm85.00Buy here
B0071.G0DMG wheel MXJ 130 mm79.00Buy here
C0070.CCMG wheel MXQ 212 mm150.00Buy here
D0071.GCMG wheel MXQ 130 mm132.00Buy here
E0070.C0MG wheel MXC 210 mm138.00Buy here
F0071.G0MG wheel MXC 130 mm120.00Buy here
G0070.E0MG wheel MXC 147 mm138.00Buy here
H0071.H0MG wheel MXC 115 mm120.00Buy here
G.CER.MC130-212Complete wheel sets MXC 130-212516.00Buy here
G.CER.MC115-147Complete wheel sets MXC 115-147516.00Buy here
G.CER.MJ130-130Complete wheel sets MXJ 130-130316.00Find in shop
G.CER.MJ130-212Complete wheel sets MXJ 130-212328.00Buy here
G.CER.MQ130-212Complete wheel sets MXQ 130-212564.00Buy here
↑ Back to overview

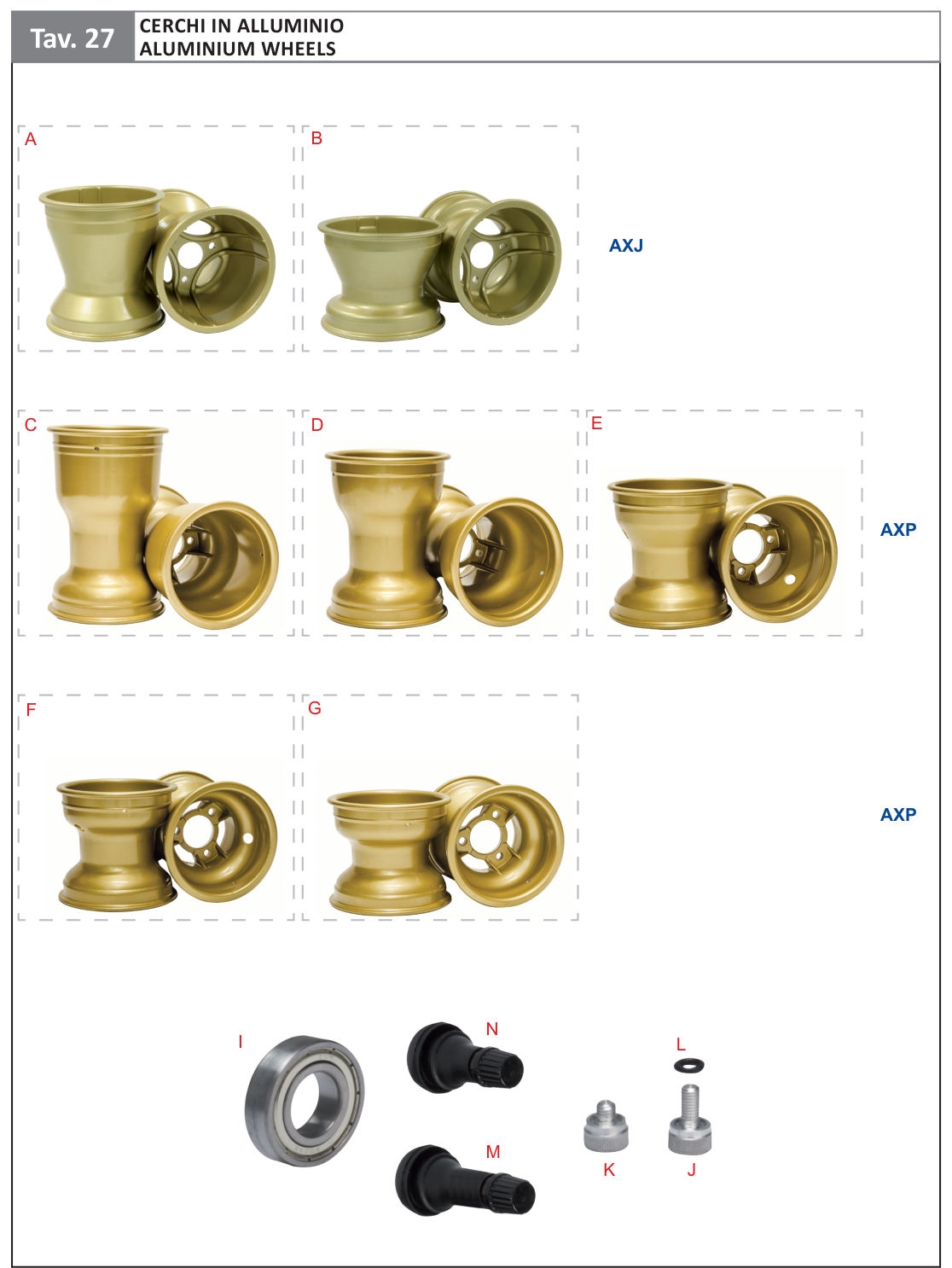

Table 27Aluminium wheels
OTK Table 27 exploded view
Ref.Part no.Description€ excl. VAT
A0070.B0DAL wheel AXJ 145 mm65.00Buy here
B0071.A0DAL wheel AXJ 110 mm57.00Buy here
C0070.00BAL wheel AXP 210 mm64.00Find in shop
D0070.A0BAL wheel AXP 180 mm66.00Buy here
E0071.D0BAL wheel AXP 130 mm57.00Buy here
F0071.B0BAL wheel AXP 120 mm57.00Find in shop
G0070.B0BAL wheel AXP 145 mm61.50Find in shop
I0024.00Whell's bearing Ø 17-35 mm2.50Buy here
J0222.A0Special screw for drilled wheel1.00Buy here
K0222.B0Short special screw for drilled wheel1.00Buy here
L0223.A0OR 20180.05Buy here
M0221.00Tubeless wheel's valve1.25Buy here
N0221.A0Tubeless wheel's short valve1.25Buy here
G.CER.AJ110-130Complete wheel sets AXJ 110-130229.00Find in shop
G.CER.AJ110-145Complete wheel sets AXJ 110-145244.00Buy here
G.CER.AP120-145Complete wheel sets AXP 120-145244.00Find in shop
G.CER.AP120-180Complete wheel sets AXP 120-180246.00Find in shop
G.CER.AP130-180Complete wheel sets AXP 130-180246.00Buy here
↑ Back to overview

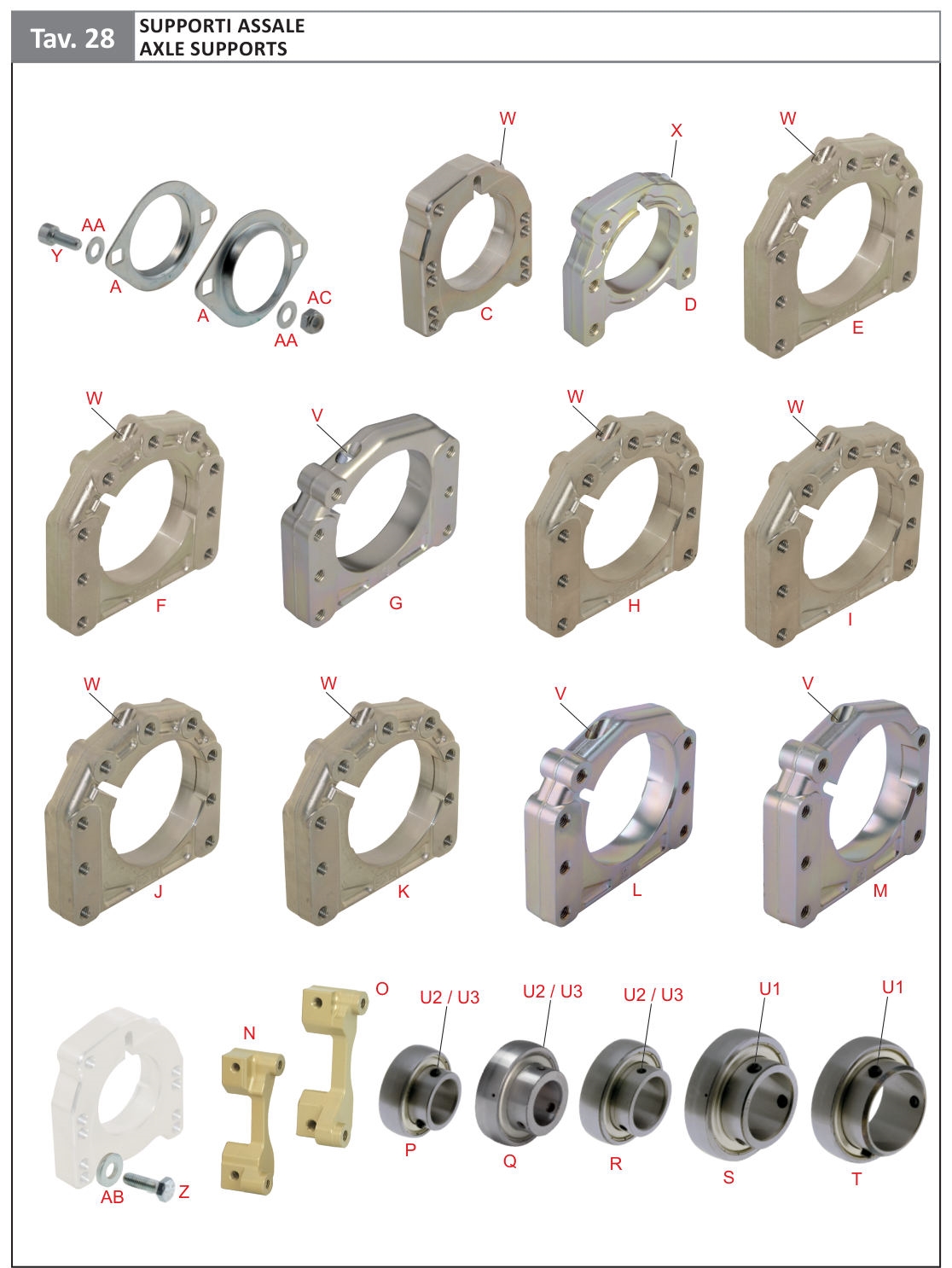

Table 28Axle supports
OTK Table 28 exploded view
Ref.Part no.Description€ excl. VAT
A0048.A2Axle's monocoque Ø 25 mm5.00Find in shop
C0048.FBAxle's support Ø 30 mm for Rookie - Mini - Nordix60.00Buy here
D0048.FCForged Axle's support Ø 30 mm for Neos79.00Buy here
E0048.KDEBAAxle's forged AL concentric support Ø 40 - 50 mm 3 position - central / right98.00Buy here
F0048.KDEBASXAxle's forged AL concentric support Ø 40 - 50 mm 3 position - left98.00Buy here
G0048.KDEBACEAxle's forged AL concentric support Ø 40 - 50 mm 3 position - central OK-OKJ98.00Buy here
H0048.KDEBBAxle's forged AL misaligned support 5 mm Ø 40 - 50 mm 3 position - central / right98.00Buy here
I0048.KDEBBSXAxle's forged AL misaligned support 5 mm Ø 40 - 50 mm 3 position - left98.00Buy here
J0048.KDEBCAxle's forged AL misaligned support 10 mm Ø 40 - 50 mm 3 position - central / right98.00Buy here
K0048.KDEBCSXAxle's forged AL misaligned support 10 mm Ø 40 - 50 mm 3 position - left98.00Buy here
L0048.KDEBBCEAxle's forged AL misaligned support 5 mm central for OK chassis98.00Find in shop
M0048.KDEBCCEAxle's forged AL misaligned support 10 mm central for OK chassis98.00Find in shop
N0226.EBRear caliper's support for disk Ø 180 mm (misaligned axle's support 5 mm)66.00Buy here
O0226.ECRear caliper's support for disk Ø 180 mm (misaligned axle's support 10 mm)66.00Buy here
P0049.B0Axle's bearing Ø 25x50 mm18.30Buy here
Q0049.BAAxle's bearing Ø 25x60 mm23.00Find in shop
R0049.00Axle's bearing Ø 30x60 mm23.00Buy here
S0049.A0Axle's bearing Ø 40x80 mm28.00Buy here
T0049.DAAxle's bearing Ø 50x80 mm33.50Buy here
U10219.00Axle's locking bearing M8x1 mm0.24/pcBuy here
U20219.A0Axle's locking bearing M6x1 mm0.24/pcBuy here
U30219.B0Axle's locking bearing M6x0,75 mm0.24/pcBuy here
VV.TCE6X30TCEI screw 6x30 mm0.11/pcBuy here
WV.TCE6X35TCEI screw 6x35 mm0.13/pcBuy here
XV.TCE6X40TCEI screw 6x40 mm0.14/pcBuy here
YV.TCE8X20TCEI screw 8x20 mm0.18/pcBuy here
ZV.TE8X25TE screw 8x25 mm0.15/pcBuy here
AAR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
ABR.P.8X17X3Washer Ø 8x17x3 mm0.12/pcBuy here
ACD.M8A.B.A.B. nut M80.08/pcBuy here
↑ Back to overview

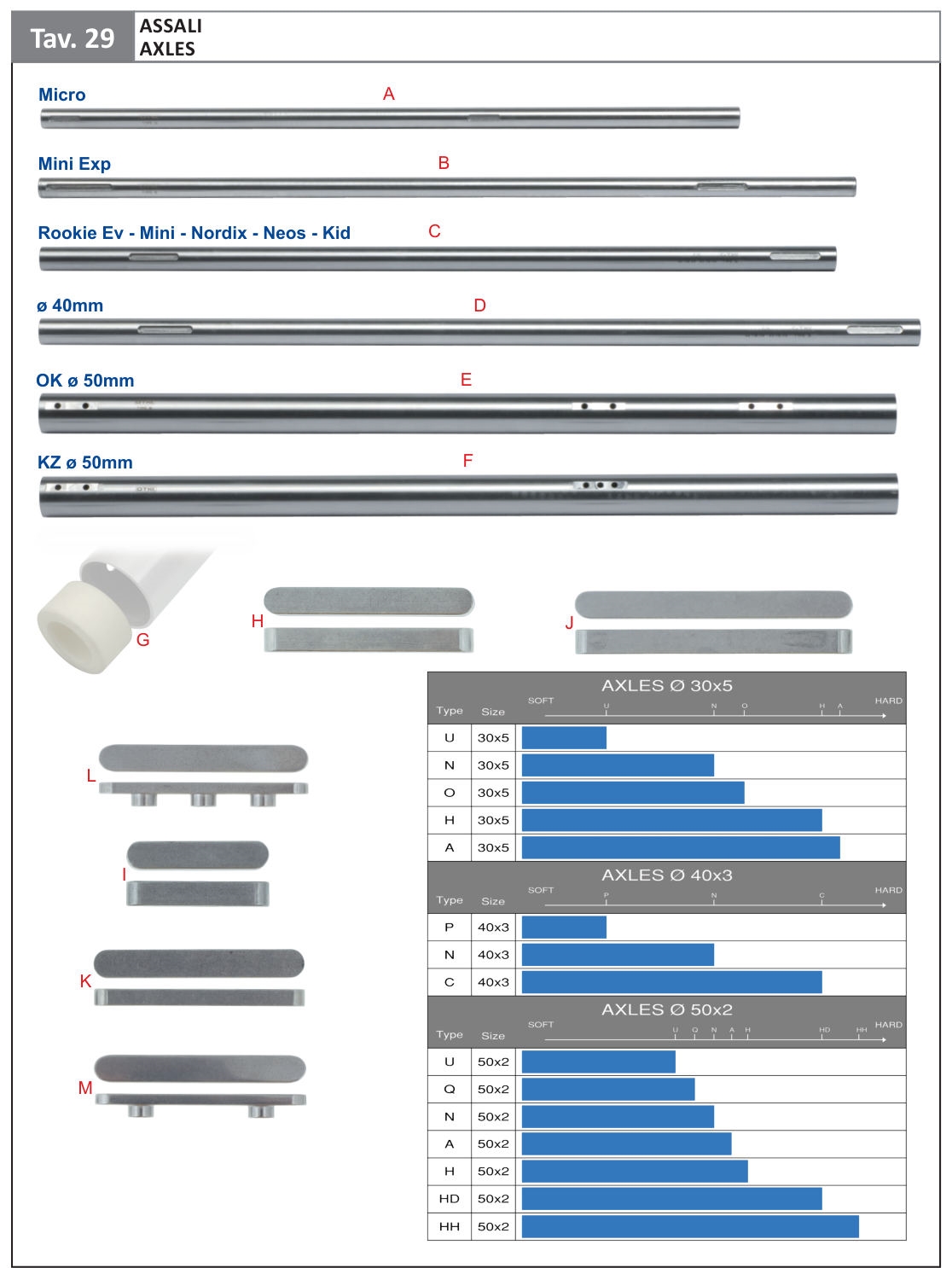

Table 29Axles
OTK Table 29 exploded view
Ref.Part no.Description€ excl. VAT
A0054.02Axle Ø 25 x 840 mm for Micro93.00Buy here
B0054.00EXPAxle Ø 25 x 980 mm for Mini96.00Buy here
C0054.B0FIKUAxle Ø 30x950 mm for Mini Kart - Nordix type "U"133.00Buy here
C0054.B0FIKAxle Ø 30x950 mm for Mini Kart - Nordix type "N"133.00Buy here
C0054.B0FIKOAxle Ø 30x950 mm for Mini Kart - Nordix type "O"133.00Buy here
C0054.B0FIKHAxle Ø 30x950 mm for Mini Kart - Nordix type "H"133.00Buy here
C0054.B0FIKAAxle Ø 30x950 mm for Mini Kart - Nordix type "A"133.00Buy here
D0054.D0Axle Ø 40 type "N" Nordix156.00Buy here
D0054.D0106PAxle Ø 40x1060 mm type "P"156.00Find in shop
D0054.D0106NAxle Ø 40x1060 mm type "N"156.00Buy here
D0054.D0DD2NAxle Ø 40x1060 mm type "N" for DD2 Chassis156.00Buy here
D0054.D0DD2CAxle Ø 40x1060 mm type "N" for DD2 Chassis156.00Buy here
E0054.G0EAxle Ø 50x1030 mm type "E"156.00Buy here
E0054.G0UAxle Ø 50x1030 mm type "U"156.00Buy here
E0054.G0QAxle Ø 50x1030 mm type "Q"156.00Buy here
E0054.G0NAxle Ø 50x1030 mm type "N"156.00Buy here
E0054.G0AAxle Ø 50x1030 mm type "A"156.00Buy here
E0054.G0HAxle Ø 50x1030 mm type "H"156.00Buy here
E0054.G0HDAxle Ø 50x1030 mm type "HD"156.00Buy here
E0054.G0HHAxle Ø 50x1030 mm type "HH"156.00Buy here
E0054.G0100UAxle Ø 50x1000 mm type "U"156.00Buy here
E0054.G0100QAxle Ø 50x1000 mm type "Q"156.00Buy here
E0054.G0100NAxle Ø 50x1000 mm type "N"156.00Buy here
E0054.G0100HAxle Ø 50x1000 mm type "H"156.00Buy here
E0054.G0100HHAxle Ø 50x1000 mm type "HH"156.00Buy here
F0054.H0UAxle Ø 50x1030 mm type "U" KZ156.00Buy here
F0054.H0QAxle Ø 50x1030 mm type "Q" KZ156.00Buy here
F0054.H0NAxle Ø 50x1030 mm type "N" KZ156.00Buy here
F0054.H0HAxle Ø 50x1030 mm type "H" KZ156.00Buy here
F0054.H0HDAxle Ø 50x1030 mm type "HD" KZ156.00Buy here
F0054.H0HHAxle Ø 50x1030 mm type "HH" KZ156.00Buy here
H0056.00Axle's key 8x7x60 mm1.50Buy here
I0056.A0Axle's key 8x7x40 mm1.25Buy here
J0056.B0Axle's key 8x7x80 mm1.80Buy here
K0057.00Axle's key 8x5x60 mm2.30Buy here
L0057.D0Axle's key Ø 50 mm 3 pegs14.50Buy here
M0057.E0Axle's key Ø 50 mm 2 pegs10.00Buy here
G0055.00Stiffener bush for axle Ø 50 mm6.30Buy here
↑ Back to overview

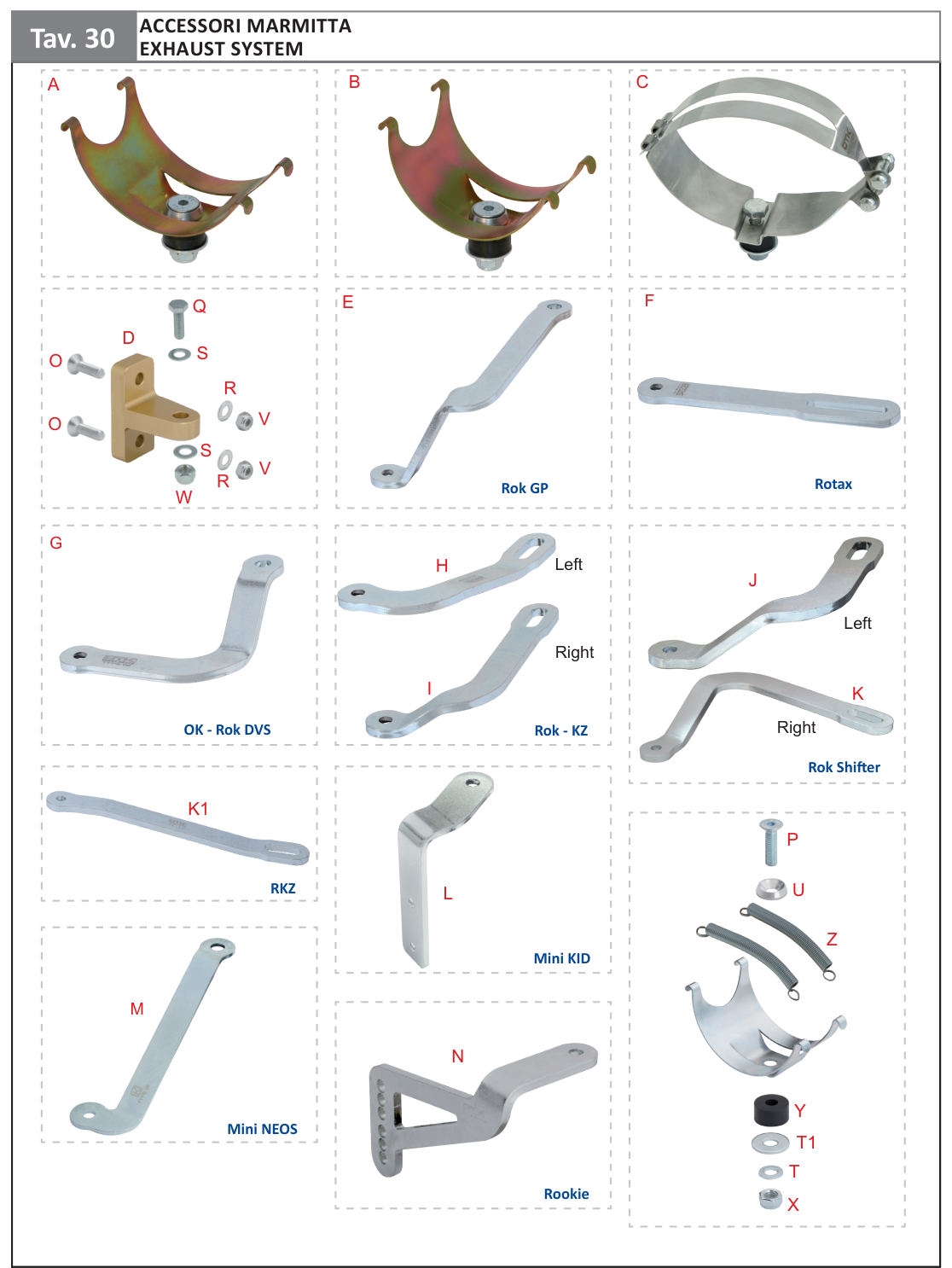

Table 30Exhaust system
OTK Table 30 exploded view
Ref.Part no.Description€ excl. VAT
A0061.00Silencer’s cradle-holder Ø 100 mm14.00Buy here
B0061.A0Silencer’s cradle-holder Ø 120 mm15.00Buy here
C0061.B0Silencer’s oval cradle-holder KZ64.00Find in shop
D0256.GA2015 Exhaust support18.00Buy here
E0256.ICRok GP Exhaust support13.50Buy here
F0256.IBRotax Exhaust support10.80Buy here
G0256.IAOK - Rok DVS exhaust support13.50Buy here
H0256.I0SXLeft Rok Junior - KZ exhaust support13.50Buy here
I0256.I0DXRight Rok - KZ exhaust support13.50Buy here
J0256.IDSXLeft Rok Shifter exhaust support13.50Buy here
K0256.IDDXRight Rok Shifter exhaust support13.50Buy here
K10256.IERKZ exhaust support13.50Find in shop
L0256.FBMini Kid exhaust support13.50Find in shop
M0256.FCMini NEOS exhaust support13.50Buy here
N0256.F0Mini Rookie exhaust support18.00Buy here
OV.TPSCEI6X22TPSCEI screw 6x22 mm0.17/pcBuy here
PV.TPSCEI10X40TPSCEI Screw 10x40 mm0.47/pcBuy here
QV.TE8X30TE screw 8x30 mm0.17/pcBuy here
RR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
SR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
TR.P.10X22Washer Ø 10x20x2 mm0.06/pcBuy here
T1R.P.10X30X2,5Washer Ø 10x30x2,5 mm0.15/pcBuy here
U0228.00Biconical AL washer Ø 10 mm1.25Buy here
VD.M6A.B.A.B. nut M60.06/pcBuy here
WD.M8A.B.A.B. nut M80.08/pcBuy here
XD.M10A.B.A.B. Nut M100.17/pcBuy here
Y0063.00Rubber washer for silencer holder1.15Buy here
Z0060.00Silencer’s spring L. 130 mm2.10Buy here
0059.00Silencer’s spring L. 55 mm1.70Buy here
0059.A0Silencer’s spring L. 45 mm1.70Buy here
0059.B0Silencer’s spring L. 35 mm1.70Buy here
↑ Back to overview

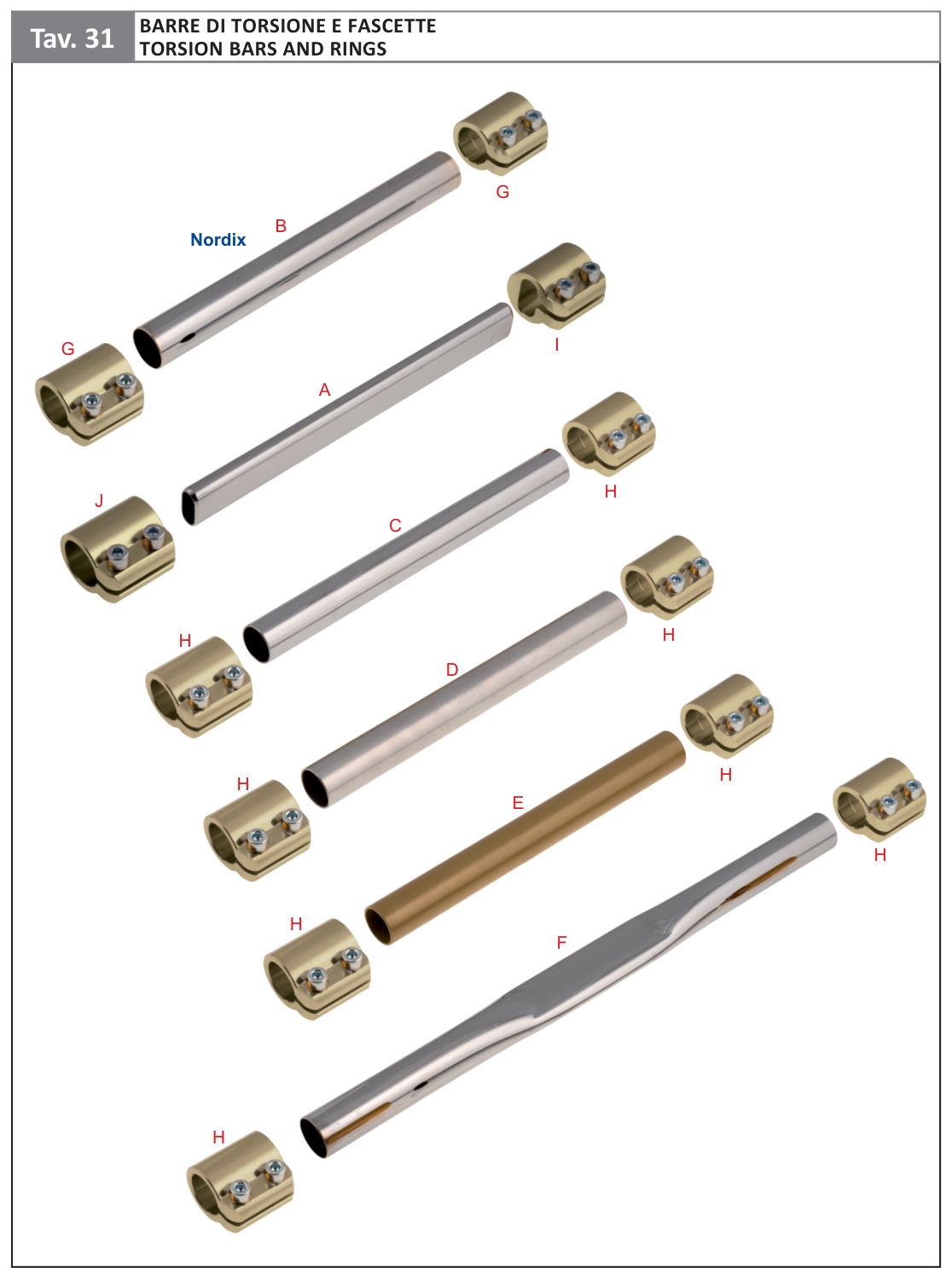

Table 31Torsion bars and rings
OTK Table 31 exploded view
Ref.Part no.Description€ excl. VAT
A0235.FAAOval front bar L. 275 mm16.00Buy here
B0235.FANordix round front bar Ø 28 mm15.00Buy here
C0235.FABRound front bar Ø 30x1 mm (chromium-plated)23.30Buy here
D0235.FANRound front bar Ø 30x1,5 mm (silver)23.30Buy here
E0235.FAORound front bar Ø 30x2 mm (gold)23.30Buy here
F0235.GARear bar Ø 30 mm L. 470 mm16.00Buy here
G0240.00Cylindrical AL ring Ø 28 mm21.50Buy here
H0240.B0Cylindrical AL ring Ø 30 mm21.50Buy here
I0240.C0DXOval AL ring Ø 30 mm Right21.50Buy here
J0240.C0SXOval AL ring Ø 30 mm Left21.50Buy here
↑ Back to overview

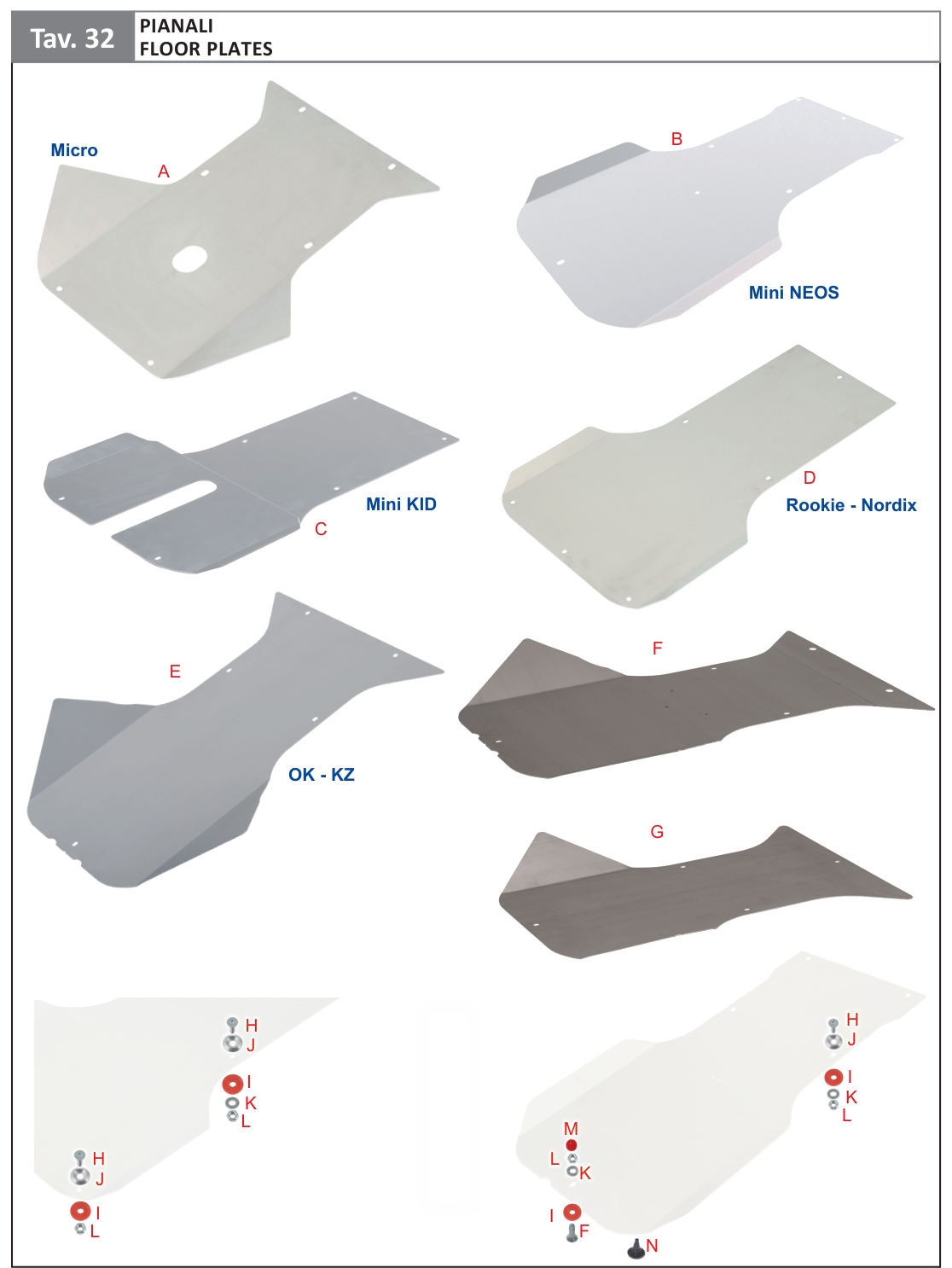

Table 32Floor plates
OTK Table 32 exploded view
Ref.Part no.Description€ excl. VAT
A0072.D1BMicro AL floor plate78.00Find in shop
B0072.B0EMini NEOS AL floor plate84.00Buy here
C0072.B0BMini Kid AL floor plate84.00Find in shop
D0072.B0FRookie EV floor plate84.00Find in shop
E0072.00COK floor plate90.00Buy here
E0072.00CAKZ floor plate90.00Buy here
F0072.00C1OK-KZ-DD2 TDX floor plate90.00Find in shop
G0072.B0FBEVS/EVM rookie floor plate model 202584.00Buy here
HV.TPSCEI6X20TPSCEI screw 6x20 mm0.01/pcBuy here
I0031.00Rubber Ø 6x20 mm Red0.23Buy here
I0031.00NRubber Ø 6x20 mm Black0.23Buy here
J0033.00Biconical AL washer Ø 6 mm0.84Buy here
KR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
LD.M6A.B.A.B. nut M60.06/pcBuy here
MC.D.M6RM6 nut's cover Red0.19/pcBuy here
MC.D.M6NM6 nut's cover Black0.19/pcBuy here
N0225.06Plug0.73Buy here
↑ Back to overview

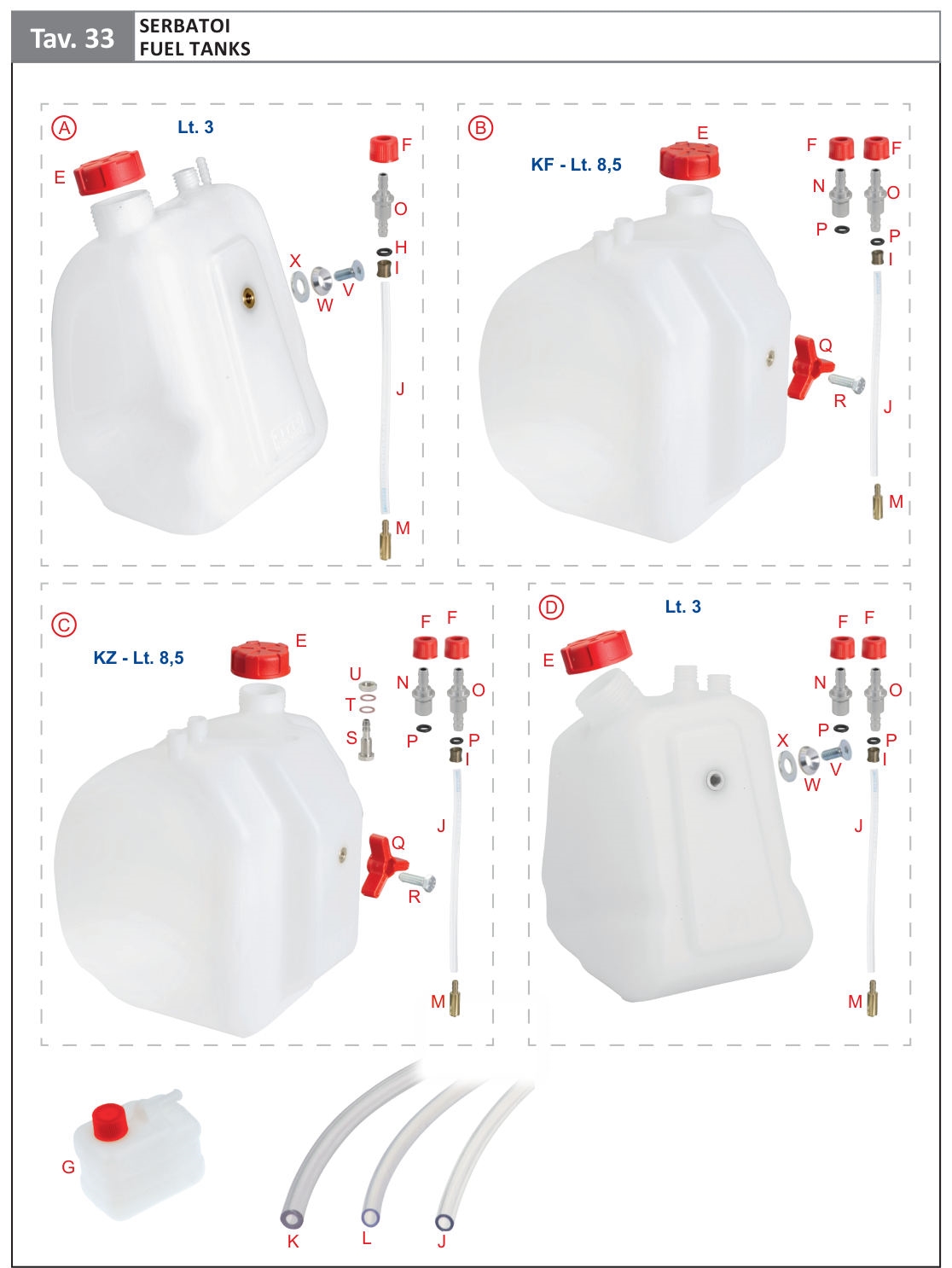

Table 33Fuel tanks
OTK Table 33 exploded view
Ref.Part no.Description€ excl. VAT
A0073.0BFuel tank Lts. 363.50Buy here
A0073.0BEXFuel tank Lts. 363.50Buy here
B0073.E0OK fuel tank Lts. 8,591.00Buy here
B0073.E0EXOK fuel tank Lts. 8,591.00Buy here
C0073.EAKZ fuel tank Lts. 8,598.00Buy here
C0073.EAEXKZ fuel tank Lts. 8,598.00Buy here
D0073.0DFuel tank Lts. 3 mod.202570.00Buy here
E0224.00APlug for fuel tank Lts 3 - Lts 8,5 Red6.80Buy here
E0224.00BPlug for fuel tank Lts 3 - Lts 8,5 Black6.80Buy here
F0224.A0Small drilled plug for fuel tank Red0.84Buy here
F0224.A0NSmall drilled plug for fuel tank Black0.84Buy here
G0260.00Recovery fuel tank4.20Buy here
H0077.CBOR for fuel pipe's connector0.07Find in shop
I0075.A0Fuel pipe's clamp0.73Buy here
J0074.B0Fuel pipe Ø 5x8 mm6.80/mBuy here
K0074.00Fuel pipe Ø 5x10 mm3.00/mBuy here
L0074.C0Fuel pipe Ø 6x9 mm6.80/mBuy here
M0076.A0Fuel tank's weight4.30Buy here
N0077.DAAFuel pipe's connector for 8,5 Lts. fuel tank8.50Buy here
O0077.D0ABreather for 8,5 Lts. fuel tank9.00Buy here
P0077.CBAViton OR for fuel pipe's connector0.84Buy here
Q0073.002AFuel tank's fixing knob Red2.50Buy here
Q0073.002ANFuel tank's fixing knob Black3.50Buy here
RV.TE8X25TE screw 8x25 mm0.15/pcBuy here
S0077.00KZ fuel tank's connector5.50Buy here
T0029.07Fiber washer0.17Buy here
U0077.B0Fuel tank connector's nut2.50Buy here
VV.TPSCEI8X20TPSCEI screw 8x20 mm0.17/pcBuy here
W0216.00Biconical AL washer Ø 8 mm1.05Buy here
XR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
0224.C0Kit for locking fuel transfer for fuel tank1.78Find in shop
↑ Back to overview

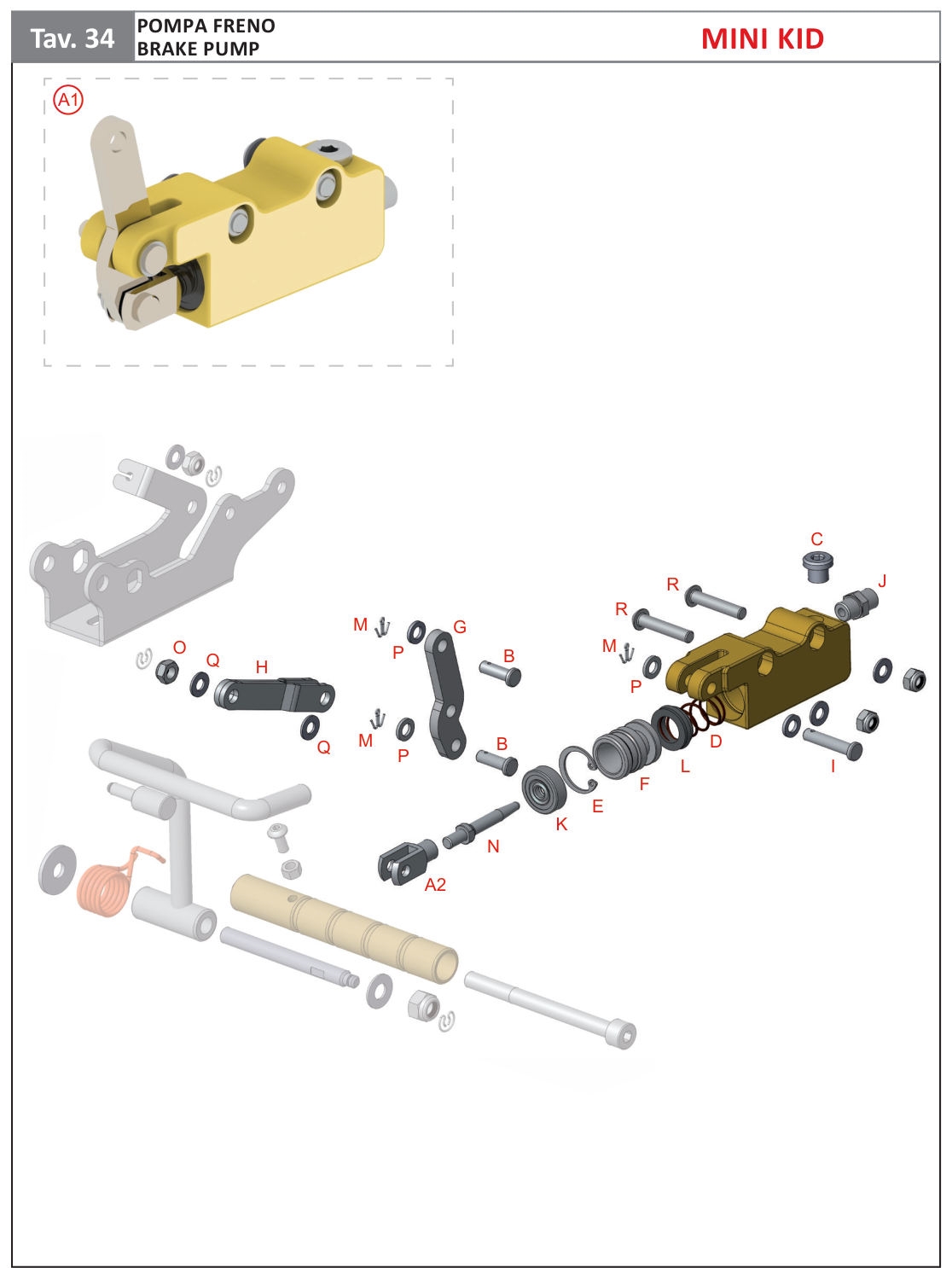

Table 34Brake pump MINI KID
OTK Table 34 exploded view
Ref.Part no.Description€ excl. VAT
A10030.FAMini Kid Brake pump180.00Buy here
A20028.01Fork M6x12 mm2.60Buy here
B0028.03Pin 6x18 mm (1 hole)2.00Buy here
C0029.B6ADischarge plug with OR3.10Buy here
D0030.03Mini Kid pump spring0.85Find in shop
E0030.04Seeger0.11/pcFind in shop
F0030.C2Mini Kid brake pump's piston14.70Find in shop
G0030.F6Mini Kid brake pump's lever8.50Find in shop
H0030.F7Mini Kid brake pump's connection17.00Find in shop
I0030.F9Mini Kid brake pump's pin4.60Buy here
J0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
K0097.05Oil-seal4.70Buy here
L0100.B10ABrake pump's lining2.30Find in shop
M0119.09Peg's locking split-pin0.04/pcBuy here
N0119.A1BS5 - SA2 - SA3 pump's push rod L. 53 mm5.60Buy here
OD.M6A.B.A.B. nut M60.06/pcBuy here
PR.P.6X11Washer Ø 6,4x11x1,5 mm0.03/pcBuy here
QR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
RV.TB6X30TB screw 6x30 mm0.25/pcBuy here
↑ Back to overview

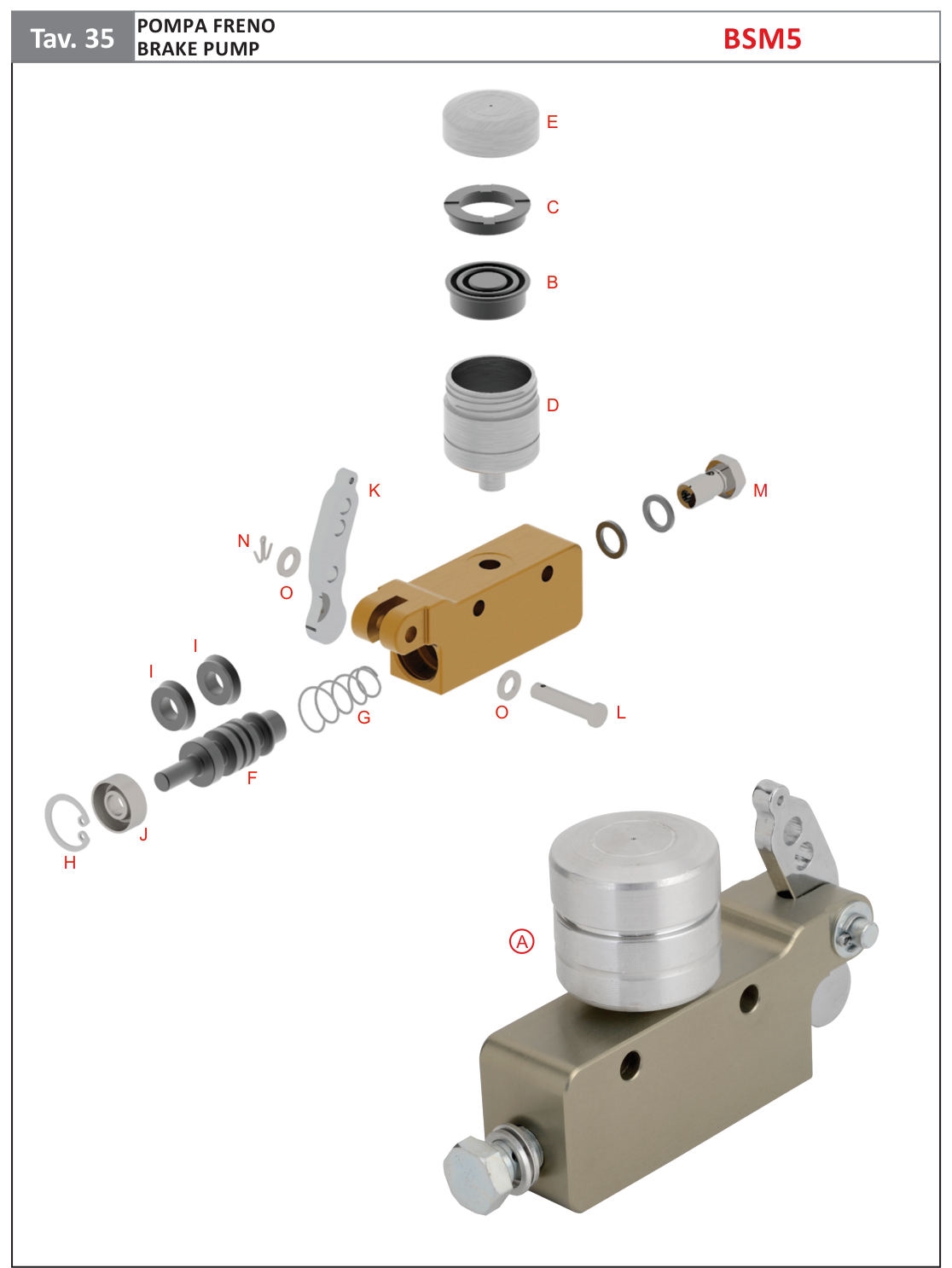

Table 35Brake pump BSM5
OTK Table 35 exploded view
Ref.Part no.Description€ excl. VAT
A0030.EABSM 5 Brake pump187.00Buy here
B0029.D15Brake pump tank's lining5.15Buy here
C0029.D16Brake pump tank's washer0.90Buy here
D0029.D6Brake pump's tank27.50Buy here
E0029.D6ABrake pump tank's cap18.00Buy here
F0030.E2BSM 5 brake pump's piston13.50Buy here
G0030.E3BSM 5 pump spring4.80Buy here
H0030.E4Seeger0.07/pcBuy here
I0030.E5Brake pump's lining3.10Buy here
J0030.E6Oil-seal3.65Buy here
K0030.E7BSM 5 brake pump's lever9.50Buy here
L0030.F9Mini Kid brake pump's pin4.60Buy here
M0081.B3BADrilled screw 1/8 for banjo fitting2.30Buy here
N0119.09Peg's locking split-pin0.04/pcBuy here
OR.P.6X11Washer Ø 6,4x11x1,5 mm0.03/pcBuy here
P0081.B3VRWasher for drilled screw0.30/pcBuy here
↑ Back to overview

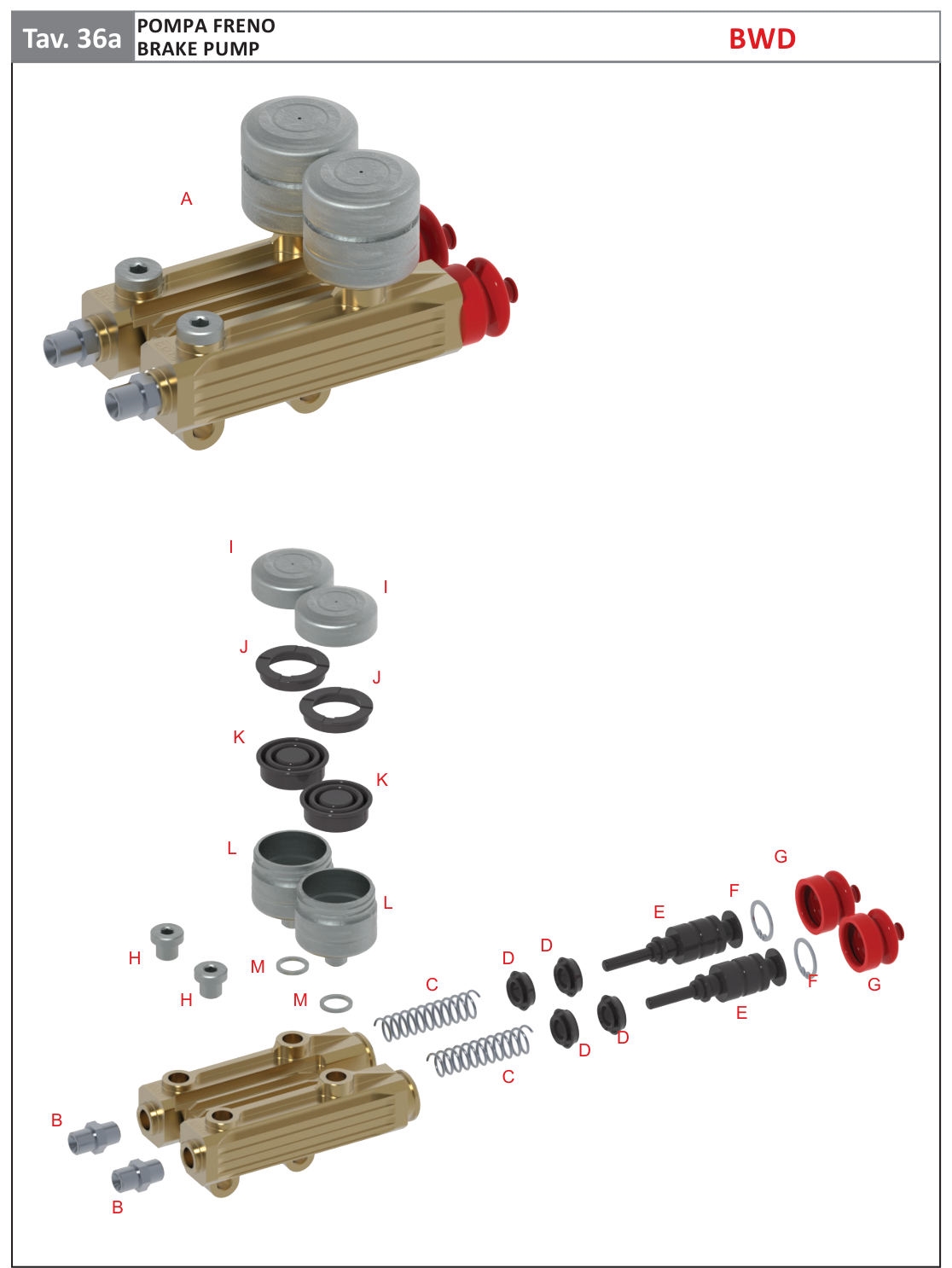

Table 36aBrake pump BWD
OTK Table 36a exploded view
Ref.Part no.Description€ excl. VAT
A0029.LComplete one-piece brake pump BWD280.00Find in shop
B0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
C0029.D13ABrake pump's spring0.95Buy here
D0029.A9Brake pump's lining Ø 13-8 mm2.80Find in shop
E0029.D10DBrake pump's piston Ø 13-8 mm10.80Find in shop
F0029.12Brake pump's Seeger0.05/pcBuy here
G0120.A0Brake pump's dusty rubber cap3.70Buy here
G0120.A0NBrake pump's dusty rubber cap3.70Buy here
H0029.B6ADischarge plug with OR3.10Buy here
I0029.D6ABrake pump tank's cap18.00Buy here
J0029.D16Brake pump tank's washer0.90Buy here
K0029.D15Brake pump tank's lining5.15Buy here
L0029.D6Brake pump's tank27.50Buy here
M0029.GC6BBrake pump tank's spacer0.85Buy here
↑ Back to overview
Table 36bBrake pump BWZ
OTK Table 36b exploded view
Ref.Part no.Description€ excl. VAT
A0029.LAComplete one-piece brake pump BWZ330.00Buy here
B0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
C0029.D13ABrake pump's spring0.95Buy here
D0029.GC9Brake pump's lining Ø 16-9 mm9.00Buy here
E0029.GC10Brake pump's piston Ø 16-9 mm13.50Buy here
F0029.GC12Brake pump's Seeger0.07/pcBuy here
G0120.A0Brake pump's dusty rubber cap3.70Buy here
G0120.A0NBrake pump's dusty rubber cap3.70Buy here
H0029.B6ADischarge plug with OR3.10Buy here
I0029.D6ABrake pump tank's cap18.00Buy here
J0029.D16Brake pump tank's washer0.90Buy here
K0029.D15Brake pump tank's lining5.15Buy here
L0029.D6Brake pump's tank27.50Buy here
M0029.GC6BBrake pump tank's spacer0.85Buy here
↑ Back to overview
Table 37Brake pump SA2 - SA3 - BSS - BSD
OTK Table 37 exploded view
Ref.Part no.Description€ excl. VAT
A0029.GBComplete one-piece brake pump SA2 - SA3 - BSS240.00Buy here
B0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
C0029.D13ABrake pump's spring0.95Buy here
D0029.A9Brake pump's lining Ø 13-8 mm2.80Find in shop
E0029.D10CBrake pump's AL piston Ø 13-8 mm10.80Find in shop
F0029.12Seeger0.05/pcBuy here
G0120.A0Brake pump's dusty rubber cap3.70Buy here
G0120.A0NBrake pump's dusty rubber cap3.70Buy here
H0029.B6ADischarge plug with OR3.10Buy here
IV.TCE6X55TCEI screw 6x55 mm0.22/pcBuy here
JR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
KD.M6A.A.A.A. nut M60.06/pcBuy here
L0029.D6Brake pump's tank27.50Buy here
M0029.D6ABrake pump tank's cap18.00Buy here
N0029.D15Brake pump tank's lining5.15Buy here
O0029.D16Brake pump tank's washer0.90Buy here
↑ Back to overview
Table 38Brake pump BSZ
OTK Table 38 exploded view
Ref.Part no.Description€ excl. VAT
A0029.GCComplete one-piece brake pump BSZ283.00Buy here
B0029.GCEXComplete one-piece brake pump BSZ283.00Find in shop
C0029.B6ADischarge plug with OR3.10Buy here
D0029.D6Brake pump's tank27.50Buy here
E0029.D6ABrake pump tank's cap18.00Buy here
F0029.GC6BBrake pump tank's spacer0.85Buy here
G0029.GC10Brake pump's piston Ø 16-9 mm13.50Buy here
H0029.GC9Brake pump's lining Ø 16-9 mm9.00Buy here
I0029.GC12Brake pump's Seeger0.07/pcBuy here
J0029.D13ABrake pump's spring0.95Buy here
K0029.D15Brake pump tank's lining5.15Buy here
L0029.D16Brake pump tank's washer0.90Buy here
M0120.A0Brake pump's dusty rubber cap3.70Buy here
N0120.A0NBrake pump's dusty rubber cap3.70Buy here
O0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
↑ Back to overview
Table 39Rear brake caliper BSM5
OTK Table 39 exploded view
Ref.Part no.Description€ excl. VAT
A0082.HBComplete BSM 5 rear brake caliper440.00Buy here
B0081.B3BADrilled screw 1/8 for banjo fitting2.30Buy here
C0081.B3VRWasher for drilled screw0.30/pcBuy here
D0082.E15APad's pin for BSD - BSM rear brake caliper0.95Buy here
E0082.HB3Brake caliper's spacer 6 mm6.00Buy here
F0100.D12Discharge plug M63.65Buy here
G0100.E14Locking bush for BSS front brake caliper's pad1.25Buy here
H0100.F9Magneto for SA3 caliper's piston2.85Buy here
I0100.G10KZ BSS front caliper's lining4.10Buy here
J0100.G11AFront brake caliper piston KZ BSS8.50Buy here
K0100.G2Front brake pad BSS / BSM 523.00Buy here
LD.M5CMetal self-locking nut M50.07/pcBuy here
MG.4X4Lock M4x4 mm flat tip0.11/pcBuy here
NV.TB3X6TB screw 3x6 mm0.18/pcBuy here
OV.TCE6X30TCEI screw 6x30 mm0.11/pcBuy here
PV.TCE6X45TCEI screw 6x45 mm0.17/pcBuy here
Q0226.00ERear caliper's support for Mini uk - Rookie EV18.00Find in shop
↑ Back to overview
Table 40Rear brake caliper BSD
OTK Table 40 exploded view
Ref.Part no.Description€ excl. VAT
A0082.GBComplete BSD rear brake caliper385.00Buy here
B0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
C0082.D12Discharge plug Ø 7x1 mm3.75Buy here
D0082.D13Magneto for BS5 - SA2 caliper's piston2.30Buy here
E0082.D5SA2 rear brake caliper's lining4.00Buy here
F0082.D6ASA2 rear brake caliper's piston9.50Buy here
G0082.D9ASA2 rear brake caliper's clip1.25Buy here
H0082.E14Locking bush for SA2 rear brake caliper's pad1.25Buy here
I0082.E15APad's pin for BSD - BSM rear brake caliper0.95Buy here
L0082.G4BSD rear brake caliper's pad23.50Find in shop
M0082.G4KITBSD rear brake caliper's pad (2 pcs box)47.00Buy here
ND.M5CMetal self-locking nut M5 mm0.07/pcBuy here
OG.4X4Lock M4x4 mm flat tip0.11/pcBuy here
PV.TPSCEI4X14TPSCEI screw 4x14 mm0.09/pcBuy here
Q0309.00Brake's air conveyor24.30Buy here
R0309.00KITScrews for brake's air conveyor9.00Buy here
↑ Back to overview
Table 41Rear brake caliper BWD - BWZ
OTK Table 41 exploded view
Ref.Part no.Description€ excl. VAT
A0082.IComplete BWD - BWZ rear brake caliper470.00Buy here
B0082.D12Discharge plug Ø 7x1 mm3.75Buy here
C0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
D0082.D9ARear brake caliper's clip1.25Buy here
E0082.D5Rear brake caliper's lining4.00Buy here
F0082.D6ARear brake caliper's piston9.50Buy here
G0082.D13Magneto for caliper's piston2.30Buy here
HV.TPSCEI4X14TPSCEI screw 4x14 mm0.09/pcBuy here
ID.M5CMetal self-locking nut M5 mm0.07/pcBuy here
J0082.G4Rear brake caliper's pad23.50Find in shop
KG.4X4Lock M4x4 mm flat tip0.11/pcBuy here
L0082.E14Locking bush for SA2 rear brake caliper's pad1.25Buy here
M0082.E15APad's pin for BSD - BSM rear brake caliper0.95Buy here
N0226.EHRear caliper's support for BWD - BWZ66.00Buy here
↑ Back to overview
Table 42Front brake caliper BWZ
OTK Table 42 exploded view
Ref.Part no.Description€ excl. VAT
A0100.ISXComplete left BWZ front brake caliper520.00Buy here
B0100.IDXComplete right BWZ front brake caliper520.00Buy here
C0100.D12Discharge plug M6 mm3.65Buy here
D0078.B1Brake pipe's straight connector M10x1-1/8" mm3.00Buy here
E0100.G3Front caliper thickness clip KZ BSS1.35Buy here
F0100.G10KZ BSS front caliper's lining4.10Buy here
G0100.G11AFront brake caliper piston KZ BSS8.50Buy here
H0100.F9Magneto for SA3 caliper's piston2.85Buy here
IV.TB3X6TB screw 3x6 mm0.18/pcBuy here
JD.M5CMetal self-locking nut M5 mm0.07/pcBuy here
K0100.G2Front brake pad BSS / BSM423.00Buy here
L0100.E14Locking bush for BSS front brake caliper's pad1.25Buy here
MG.4X4Lock M4x4 mm flat tip0.11/pcBuy here
N0100.G14Front pad pin kz BSS1.35Buy here
↑ Back to overview
Table 43Front brake caliper BSS
OTK Table 43 exploded view
Ref.Part no.Description€ excl. VAT
A0100.GBDXComplete right BSS front brake caliper355.00Buy here
A0100.GBSXComplete left BSS front brake caliper355.00Find in shop
B0078.B1Brake pipe's straight connector M10x1-1/8" mm3.00Buy here
C0100.D12Discharge plug M6 mm3.65Buy here
D0100.G6Lock cup tip0.12/pcBuy here
E0100.G7Steel ball 4 mm0.17/pcBuy here
F0100.G14Front pad pin kz BSS1.35Buy here
G0100.E14Locking bush for BSS front brake caliper's pad1.25Buy here
HG.4X4Lock M4x4 mm flat tip0.11/pcBuy here
K0100.G3Front caliper thickness clip KZ BSS1.35Buy here
L0100.G10KZ BSS front caliper's lining4.10Buy here
M0100.G11AFront brake caliper piston KZ BSS8.50Buy here
N0100.F9Magneto for SA3 caliper's piston2.85Buy here
OV.TB3X6TB screw 3x6 mm0.18/pcBuy here
P0100.G2Front brake pad BSS / BSM423.00Buy here
p0100.G2-4ABrake pad KZ BSS type 4A23.00Buy here
Q0100.G2KITFront brake pad BSS / BSM4 (4 pcs box)92.50Buy here
RD.M5CMetal self-locking nut M5 mm0.07/pcBuy here
0100.G1ARear caliper plug KZ BSS13.50Find in shop
0100.G5Front caliper plug KZ BSS o-ring0.17Buy here
↑ Back to overview
Table 44Rear mechanical brake caliper MICRO
OTK Table 44 exploded view
Ref.Part no.Description€ excl. VAT
A0116.EAComplete brake caliper Micro235.00Buy here
B0116.E1RDX brake caliper's half body Micro90.00Find in shop
C0116.E1LSX brake caliper's half body Micro90.00Find in shop
D0116.E2mechanical brake caliper's lever Micro9.50Find in shop
E0116.E3LSX brake caliper's piston Micro10.80Find in shop
F0116.E3RDX brake caliper's piston Micro10.80Find in shop
G0116.E4Pad's spacer0.31Find in shop
H0116.E5Lock pad's adjustment0.24Find in shop
I0116.E6Micro brake caliper's pin 6x6 mm0.17Find in shop
J0116.E7LSX brake caliper's lever spring Micro7.30Find in shop
K0116.E7RDX brake caliper's lever spring Micro7.30Find in shop
L0116.E8Adjuster's peg brake caliper Micro - Mini Kid5.50Find in shop
M0116.E10Locking pin for Micro pad0.40Find in shop
N0116.B8Circle spring1.25Buy here
O0100.F2SA3 front brake caliper's pad26.50Buy here
P0213.00Adjuster1.45Buy here
QD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
RD.M8A.B.A.B. nut M8 mm0.08/pcBuy here
SD.F.M5Flanged nut M5 mm0.03/pcFind in shop
TR.E.8Spring washer Ø 8 mm0.07/pcBuy here
UR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
VV.TCE8X65TCEI screw 8x65 mm0.38/pcBuy here
↑ Back to overview
Table 45Push rods systems and brake bias adjuster
OTK Table 45 exploded view
Ref.Part no.Description€ excl. VAT
A0119.00BComplete set of lengthening arms BWZ110.00Buy here
B0117.00AComplete SA2 - SA3 pump's push rods system46.00Buy here
C0117.01Push rod's plate9.50Buy here
D0119.01BSM pump's push rod L. 68 mm3.70Buy here
E0119.A1BS5 - SA2 - SA3 pump's push rod L. 53 mm5.60Buy here
F0119.09Peg's locking split-pin0.04/pcBuy here
G0028.01Fork M6x12 mm2.60Buy here
H0028.B1Fork M6x24 mm3.10Buy here
I0028.03Pin 6x18 mm (1 hole)2.00Buy here
J0028.04Pin 6x22 mm (2 holes)3.10Buy here
KD.M6Nut M6 mm0.03/pcBuy here
LR.P.6X11Washer Ø 6,4x11x1,5 mm0.03/pcBuy here
MR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
N0028.05M6 threaded pin with head4.20Buy here
OD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
P0116.B8Circle spring1.25Buy here
Q0118.Brake pump's control rod L. (290 - 355 - 395 - 435 - 470 - 480 - 490 - 510 - 525 - 540 - 560 - 575 - 595 - 600 - 610) mm9.50Find in shop
R0118.435ABrake pump's bent control rod L. 435 mm14.50Buy here
R0118.470ABrake pump's bent control rod L. 470 mm14.50Buy here
S0119.00AComplete set of lengthening arms BS567.00Buy here
T0119.04ABS5 lengthening arms' plate10.80Buy here
U0119.05ABS5 lengthening arms' knob14.50Buy here
V0119.07Central peg for BS5 lengthening arms8.00Buy here
W0119.10Threaded bar for BS5 lengthening arms0.50Buy here
X0119.12Anti-unscrewing rubber for BS5 lengthening arms0.03/pcBuy here
YG.6X8Lock M6x8 mm flat tip0.11/pcBuy here
ZR.E.6Spring washer Ø 6 mm0.06/pcBuy here
↑ Back to overview
Table 46Brake pipes kit
OTK Table 46 exploded view
Ref.Part no.Description€ excl. VAT
A0081.C3rake pipes kit for Rookie - Nordix78.00Find in shop
B0081.BKFBS6SA2 brake pipes kit116.00Find in shop
C0081.BKF1060SA2 brake pipe Long59.00Find in shop
C0081.BWD1060BWD long SA2 brake pipe59.00Buy here
D0081.BKF1000SA2 brake pipe Short57.50Find in shop
D0081.BWD1000BWD short SA2 brake pipe57.50Buy here
E0081.BM1035Neos brake pipe Long59.00Buy here
F0081.BM990Neos brake pipe Short57.50Buy here
G0081.BKFBS7SA3 brake pipes kit132.00Find in shop
H0081.BMUSABSM 4 brake pipes kit96.00Buy here
I0081.BFBSS Front brake pipes kit109.00Buy here
I0081.BWZFBWZ front brake pipes kit109.00Buy here
J0081.BRBSS Rear brake pipes kit112.00Buy here
J0081.BWZRBWZ rear brake pipes kit112.00Buy here
K0217.A0Double silicon clamp0.73Buy here
L0227.A06Pipe's tightening ring Ø 6 mm1.90Buy here
M0227.A10Pipe's tightening ring Ø 10 mm1.75Buy here
N0227.A15Pipe's tightening ring Ø 16 mm2.10Buy here
OV.TB5X16TB screw 5x16 mm0.21/pcBuy here
PR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
QD.M5A.B.A.B. nut M5 mm0.05/pcBuy here
RV.TB6X16TB screw 6x16 mm0.14/pcBuy here
SR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
TD.M6A.A.A.A. nut M6 mm0.06/pcBuy here
U0078.A1Brake pipe's straight connector1.25Buy here
V0078.B1Brake pipe's straight connector M10x1-1/8"3.00Buy here
W0080.A1Brake pipe's "T type" connector3.35Buy here
X0079.A1Brake pipe's "L type" connector2.50Buy here
Y0081.B3BADrilled screw 1/8 for banjo fitting2.30Buy here
Z0081.B3VRWasher for drilled screw0.30/pcBuy here
↑ Back to overview
Table 47Radiator 480 x 196 mm
OTK Table 47 exploded view
Ref.Part no.Description€ excl. VAT
A0093.TABOTK radiator 480x196mm complete with supports345.00Find in shop
B0093.TA1OTK radiator 480x196mm300.00Find in shop
C0094.TABOTK radiator 480x196mm supports73.00Buy here
D0093.02Anti-vibration rubber1.25Buy here
E0093.04Bush for anti-vibration rubber0.94Buy here
F0093.T5Bush for radiator's support3.00Buy here
G0094.PAASupport plate for radiator 4 holes6.30Buy here
H0094.RAARadiator support28.00Buy here
I0094.R0-2Radiator tube spacer6.30Buy here
J0033.00Biconical AL washer Ø 6 mm0.84Buy here
KD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
LR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
MR.P.8X17Washer Ø 8x17 mm0.05/pcBuy here
NV.TCE8X65TCEI screw 8x65 mm0.38/pcBuy here
OV.TE6X100TE screw 6x100 mm0.62/pcBuy here
PV.TE6X105TE screw 6x105 mm0.77/pcBuy here
QV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
R0094.ZDAir choke kit215.00Find in shop
S0082.B13Spring for pad's pin0.84Find in shop
T0094.Z3Radiator buffer0.17Buy here
U0094.ZB3Upper nylon pulley4.80Find in shop
V0094.ZB4AL Bush1.45Find in shop
W0094.ZB5Lower nylon pulley4.80Find in shop
X0094.ZC1Radiator curtain24.00Find in shop
Y0094.ZC2Curtain sliding plate14.50Find in shop
Z0094.ZC6Curtain sleeve5.50Find in shop
AA0094.ZC7AL Bar4.80Find in shop
AB0094.ZD2CAir choke right support26.50Find in shop
AC0094.ZD2DAir choke left support26.50Find in shop
AD0094.ZD8Sliding belt13.00Find in shop
AED.M5Nut M5 mm0.02/pcBuy here
AFD.M5A.B.A.B. nut M5 mm0.05/pcBuy here
AGR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
AHV.TB5X10TB screw 5x10 mm0.17/pcFind in shop
AIV.TB5X25TB screw 5x25 mm0.28/pcBuy here
AJV.TE6X110TE screw 6x110 mm1.32/pcFind in shop
↑ Back to overview
Table 48Radiator 422 x 260 x 48
OTK Table 48 exploded view
Ref.Part no.Description€ excl. VAT
A0093.EAKITOTK Radiator Kit 422x260x48 mm345.00 *Buy here
C0094.EAKITSupports kit for radiator 422x260x48 mm115.00Find in shop
D0094.EA1Upper support for radiator 422x260x48 mm36.00Find in shop
E0094.EA2Lower support for radiator 422x260x48 mm30.00Find in shop
F0094.EA1ARadiateur support rod 422x260x48 mm14.50Find in shop
G0094.EA1BRadiateur support bar 422x260x48 mm38.50Find in shop
H0093.02Antivibration rubber1.25Buy here
I0093.04Bush for antivibration rubber0.94Buy here
J0033.00Biconical al. Washer d.6 mm0.84Buy here
KD.M5A.B.Low self-locking nut M5 mm0.05/pcBuy here
LD.M6A.A.High self-locking nut M6 mm0.06/pcBuy here
MR.P.5X11Plain washer D.5x11x1 mm0.02/pcBuy here
NR.P.6X12Plain washer D.6.3x12,5x10.04/pcBuy here
OR.P.6X18Plain washer D.6x18x1 mm0.04/pcBuy here
PR.P.8X17Plain washer D.8x17x1,5 mm0.05/pcBuy here
QR.P.8X17X3Plain washer D.8x17x3 mm0.12/pcBuy here
RV.TB5X25Roundhead screw m5x25 mm0.28/pcBuy here
SV.TB6X16Button head screw 6x16 mm0.14/pcBuy here
TV.TCE6X35Socket head screw 6x35 mm0.13/pcBuy here
UV.TE8X60Hexagonal-head screw 8x60 mm0.30/pcFind in shop
VV.TPSCEI6X20Countersunk head screw 6x20 mm0.10/pcBuy here
VV.TPSCEI6X20Countersunk head screw 6x20 mm0.10/pcBuy here
↑ Back to overview
Table 49Water pump - pulleys - pipes - clamps
OTK Table 49 exploded view
Ref.Part no.Description€ excl. VAT
A0097.B0Water pump90.00Buy here
B0097.B10Water pump pulley13.50Buy here
CG.5X8Locker M5x8 mm0.10/pcBuy here
D0097.04Water pump bearing9.00Buy here
EV.TB5X20TB screw 5x20 mm0.24/pcBuy here
FR.P.5X11Washer Ø 5x11x1 mm0.02/pcBuy here
G0097.B3AWater pump crankshaft4.80Buy here
H0097.08ASeeger for water pump shaft0.09/pcFind in shop
I0097.B6Sponge for water pump1.25Buy here
J0097.05Oil-seal4.70Buy here
K0097.B7AWater pump Impeller12.60Buy here
LD.M5A.B.A.B. nut M5 mm0.05/pcBuy here
MV.TCE4X12TCEI screw 4x12 mm0.10/pcFind in shop
N0259.DAWater pump support6.00Buy here
O0259.E28KITComplete water pump clamp Ø 28 mm60.00Buy here
O0259.E30KITComplete water pump clamp Ø 30 mm63.00Find in shop
O0259.E32KITComplete water pump clamp Ø 32 mm63.00Buy here
P0098.B0Water pump pulley Ø 50 mm24.00Buy here
Q0096.C0Water pump belt Ø 92 mm1.25Buy here
R0096.00Water pump belt Ø 110 mm1.25Buy here
S0096.B0Water pump belt Ø 133 mm1.25Buy here
T0095.00Water pipe L. 800 mm22.00Buy here
U0095.A0Water pipe Ø 12x17 mm7.30/mBuy here
V0091.00Water pump AC clamp Ø 16x25 mm1.75Buy here
W0091.A0Water pump AC clamp Ø 12x20 mm1.65Buy here
↑ Back to overview
Table 50Gear lever system
OTK Table 50 exploded view
Ref.Part no.Description€ excl. VAT
A0111.B0Gear lever90.00Buy here
B0112.B0Gear lever knob16.50Buy here
C0111.002Gear lever's nylon bush3.70Buy here
D0111.B0AGear lever's connector41.00Buy here
E0114.BAGear tie-rod 530 mm24.50Buy here
F0009.00Complete right steering joinbal7.30Buy here
G0009.A0Complete left steering’s joinbal7.30Buy here
↑ Back to overview
Table 51Bodyworks M11
OTK Table 51 exploded view
Ref.Part no.Description€ excl. VAT
A0306.FFPM11 front fairing without supports78.00Buy here
A0306.FFPKITM11 front fairing with CIK supports98.00Find in shop
B0302.H0M11 Pearl front spoiler kit + yellow number plate232.00Buy here
B0302.H0BM11 Blue front spoiler kit + yellow number plate232.00Buy here
B0302.H0NGM11 Black Glitter front spoiler kit + yellow number plate232.00Buy here
B0302.H0RM11 Red front spoiler kit + yellow number plate232.00Buy here
C0302.H02M9-M11 yellow number plate65.00Buy here
D0300.FDPM10 side box53.00Buy here
E0305.G0BLower M9-M11 spoiler's support10.00Buy here
F0305.G0EUpper M9-M11 lower spoiler's support10.00Buy here
G0304.G0M9-M11 upper spoiler's support10.00Buy here
H0304.F0AUpper spoiler's support stiffener6.25Buy here
IV.TB5X16TB screw 5x16 mm0.21/pcBuy here
JR.E.5Spring washer Ø 5 mm0.05/pcBuy here
KV.TPSCEI6X20TPSCEI screw 6x20 mm0.10/pcBuy here
L0033.00Biconical AL washer Ø 6 mm0.84Buy here
M0031.00Rubber Ø 6x20 mm Red0.23Buy here
NR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
OD.M6A.A.A.A. nut M6 mm0.06/pcBuy here
PV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
QD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
RV.TB6X16TB screw 6x16 mm0.14/pcBuy here
SV.TB6X25TB screw 6x25 mm0.21/pcBuy here
TR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
U0093.02Antivibration rubber1.25Buy here
V0093.04Bush for antivibration rubber0.94Buy here
W0306.FCHKITConnection Kit type CIK for M10-M11 front fairing17.80Buy here
↑ Back to overview
Table 52Bodyworks M9
OTK Table 52 exploded view
Ref.Part no.Description€ excl. VAT
A0306.AGPM9 front fairing without supports51.00Buy here
A0306.AGPKITM9 front fairing with CIK supports69.00Find in shop
B0302.HAM9 Pearl front spoiler kit + yellow number plate206.00Buy here
B0302.HABM9 Blue front spoiler kit + yellow number plate206.00Buy here
B0302.HANGM9 Black Glitter front spoiler kit + yellow number plate206.00Buy here
B0302.HARM9 Red front spoiler kit + yellow number plate206.00Buy here
C0302.H02M9-M11 yellow number plate65.00Buy here
D0300.ADPM5 / M8 side box46.00Buy here
E0305.G0BLower M9-M11 spoiler's support10.00Buy here
F0305.G0EUpper M9-M11 lower spoiler's support10.00Buy here
G0304.G0M9-M11 upper spoiler's support10.00Buy here
H0304.F0AUpper spoiler's support stiffener6.25Buy here
IV.TB5X16TB screw 5x16 mm0.21/pcBuy here
JR.E.5Spring washer Ø 5 mm0.05/pcBuy here
KV.TPSCEI6X20TPSCEI screw 6x20 mm0.10/pcBuy here
L0033.00Biconical AL washer Ø 6 mm0.84Buy here
M0031.00Rubber Ø 6x20 mm Red0.23Buy here
NR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
OD.M6A.A.A.A. nut M6 mm0.06/pcBuy here
PV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
QD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
RV.TB6X16TB screw 6x16 mm0.14/pcBuy here
SV.TB6X25TB screw 6x25 mm0.21/pcBuy here
TR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
U0093.02Antivibration rubber1.25Buy here
V0093.04Bush for antivibration rubber0.94Buy here
W0306.FCHKITConnection Kit type CIK for M10-M11 front fairing17.80Buy here
↑ Back to overview
Table 53Bodyworks M10
OTK Table 53 exploded view
Ref.Part no.Description€ excl. VAT
A0306.FDPM10 front fairing without supports78.00Buy here
A0306.FDPHKITM10 front fairing with CIK supports96.00Find in shop
B10302.G0M7 Pearl front spoiler kit + yellow number plate180.00Buy here
B20302.G0AM7 Light Blue front spoiler kit + yerllow number plate180.00Buy here
B30302.G0BM7 Blue front spoiler kit + yerllow number plate180.00Buy here
B40302.G0NGM7 Black Glitter front spoiler kit + yerllow number plate180.00Buy here
B50302.G0RM7 Red front spoiler kit + yerllow number plate180.00Buy here
B60302.G0VM7 Green front spoiler kit + yerllow number plate180.00Buy here
C0302.G02M7 / M8 yellow number plate42.00Buy here
D0300.FDPM10 side box53.00Buy here
E0305.F0CM7 CIK lower spoiler's support9.00Buy here
FV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
G0033.00Biconical AL washer Ø 6 mm0.84Buy here
H0031.00Rubber Ø 6x20 mm Red0.23Buy here
IV.TCE6X20TCEI screw 6x20 mm0.09/pcBuy here
JR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
KD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
LD.M6A.A.A.A. nut M6 mm0.06/pcBuy here
M0304.F0M6 - M7 upper spoiler's support8.50Buy here
M10304.F0AM7 upper spoiler's support stiffener6.25Buy here
M2V.TB5X16TB screw 5x16 mm0.21/pcBuy here
M3R.E.5Spring washer Ø 5 mm0.05/pcBuy here
NV.TPSCEI6X20TPSCEI screw 6x20 mm0.10/pcBuy here
O0306.FCHKITConnection Kit type CIK for M10 front fairing17.80Buy here
↑ Back to overview
Table 54Bodyworks M8
OTK Table 54 exploded view
Ref.Part no.Description€ excl. VAT
A0306.AFPM8 front fairing51.00Buy here
B10302.GAM8 Pearl front spoiler kit + yerllow number plate157.00Buy here
B20302.GAAM8 Light Blue front spoiler kit + yerllow number plate157.00Buy here
B30302.GABM8 Blue front spoiler kit + yerllow number plate157.00Buy here
B40302.GANGM8 Black Glitter front spoiler kit + yerllow number plate157.00Buy here
B50302.GARM8 Red front spoiler kit + yerllow number plate157.00Buy here
B60302.GAVM8 Green front spoiler kit + yerllow number plate157.00Buy here
C0302.GA1M8 front spoiler138.00Find in shop
D0300.ADPM5 / M8 side box46.00Buy here
E0302.G02M7 / M8 yellow number plate42.00Buy here
F0305.BALower spoiler's support8.50Buy here
G0304.FBUpper spoiler's support for Mini CIK-FIA8.50Buy here
HV.TB4X12TB screw 4x12 mm0.18/pcBuy here
IR.P.4X8Washer Ø 4x8 mm0.02/pcBuy here
JD.M4A.B.A.B. nut M40.05/pcBuy here
KV.TB6X16TB screw 6x16 mm0.14/pcBuy here
LR.E.6Spring washer Ø 6 mm0.06/pcBuy here
M0304.F0AUpper spoiler's support stiffener6.25Buy here
NV.TB5X16TB screw 5x16 mm0.21/pcBuy here
OR.E.5Spring washer Ø 5 mm0.05/pcBuy here
↑ Back to overview
Table 55Bodyworks MINI EXP & MINI KID
OTK Table 55 exploded view
Ref.Part no.Description€ excl. VAT
A0306.ADPM5 Rookie front fairing without supports51.00Find in shop
B0302.ADPM5 front spoiler19.00Find in shop
C0300.AFPMini Kid, Mini EXP side box40.00Find in shop
D0305.BAM5 lower spoiler's support Standard8.50Buy here
EV.TPSCEI6X25TPSCEI screw 6x25 mm0.12/pcBuy here
F0033.00Biconical AL washer Ø 6 mm0.84Buy here
G0031.00Rubber Ø 6x20 mm Red0.23Buy here
HV.TCE6X20TCEI screw 6x20 mm0.09/pcBuy here
IR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
JD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
KD.M6A.A.A.A. nut M6 mm0.06/pcBuy here
L0304.D0M5 upper spoiler's support Standard8.50Buy here
MV.TPSCEI6X20TPSCEI screw 6x20 mm0.10/pcBuy here
NV.TB6X15TB screw 6x15 mm0.14/pcBuy here
OR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
↑ Back to overview
Table 56Bodyworks MICRO
OTK Table 56 exploded view
Ref.Part no.Description€ excl. VAT
A0306.A0Micro front fairing51.00Buy here
B0302.B0Micro front spoiler19.00Buy here
C0300.B0Micro side box33.00Buy here
D0304.A0Micro upper spoiler's support8.00Buy here
EV.TB6X15TB screw 6x15 mm0.14/pcBuy here
FR.P.6X18Washer Ø 6x18x1 mm0.04/pcBuy here
GR.P.6X12Washer Ø 6,3x12,5x1 mm0.04/pcBuy here
HD.M6A.B.A.B. nut M6 mm0.06/pcBuy here
I0301.A0Micro front fairing's connections kit17.50Buy here
↑ Back to overview
Table 57Silencers
OTK Table 57 exploded view
Ref.Part no.Description€ excl. VAT
A0225.GLA22Arrow intake silencer LA2254.50Buy here
B0225.GLA29Arrow intake silencer LA2954.50Buy here
C0225.GLB22Arrow intake silencer LB2254.50Find in shop
D0225.GLB29Arrow intake silencer LB2954.50Buy here
E0225.02Intake silencer's rubber12.50Buy here
F0225.H023Nitro intake silencer D.23 mm100.00 *Find in shop
F0225.H030Nitro intake silencer D.30 mm100.00 *Find in shop
G0229.DAIntake silencer's support Nitro23.80Buy here
H0225.03Intake manifold L. 22 mm4.30Buy here
I0225.A3Intake manifold L. 29 mm6.80Buy here
J0225.04Intake silencer's filter1.25Buy here
K0225.05Intake silencer's steel clamp Ø 50-70 mm2.30Buy here
L0229.00Intake silencer's support8.50Buy here
M0208.00KZ exhaust silencer210.00Find in shop
N0229.AA1KITKit intake silencer's support Rok Jr-GP31.00Buy here
O0229.AA2KITKit intake silencer's support KZ31.00Buy here

* Refer to Annex “A”

↑ Back to overview
Table 58Weights - cables - outers - locks - chromium-plated plugs - clamps
OTK Table 58 exploded view
Ref.Part no.Description€ excl. VAT
A0275.03Weight about 3 Kgs.36.00Buy here
B0275.01Weight about 1 Kgs.17.00Buy here
CC05012010Counterweights 60 gr. for wheels (1 dipstick)1.65Buy here
D0280.A0Fuel filter with 90° connection6.00Buy here
F0281.0AMetal fuel pipe's "Y" connector8.00Buy here
G0281.AAMetal fuel pipe's "T" connector8.00Buy here
H0202.00ASafety brake cable1.35Buy here
I0202.00Brake cable3.50Buy here
J0202.A0Accelerator cable1.50Buy here
0202.AAAccelerator cable for rookie chassis1.50Find in shop
K0202.B0Clutch cable2.60Buy here
L0203.00Brake cable's outer4.00Buy here
M0203.A0Accelerator cable's outer3.00Buy here
N0207.A0"Plate type" clamp double screws2.60Buy here
O0207.00Accelerator cable's lock1.45Buy here
P0209.00AAccelerator cable's lock0.75Find in shop
Q0210.00Double cable's lock1.25Buy here
R0210.A0Single cable's lock1.50Buy here
S0213.00Adjuster1.45Buy here
T0214.A0Adjuster's peg7.35Buy here
U0214.B0Outer's locking peg7.35Buy here
V0124.00Chromium-plated plug Ø 28 mm0.73Buy here
W0124.A0Chromium-plated plug Ø 30 mm0.73Buy here
X0124.B0Chromium-plated plug Ø 32 mm0.83Buy here
Y0227.00Cable tie 4,8x200 mm0.13/pcBuy here
Z0227.A0Cable tie 2,5x200 mm0.09/pcBuy here
AA0214.D0Adjuster peg KZ accelerator7.30Buy here
↑ Back to overview
Table 59Chains - spray - oil
OTK Table 59 exploded view
Ref.Part no.Description€ excl. VAT
A0231.D0DID chain pitch 1/2 "39.50/mFind in shop
B0230.D0Link for DID chain pitch 1/2 "3.60Buy here
C0231.A08Chain DID HTM G/B DHA 8641.00Find in shop
C0231.A01Chain DID HTM G/B DHA 9845.00Find in shop
C0231.A00Chain DID HTM G/B DHA 10046.00Find in shop
C0231.A0Chain DID HTM G/B DHA 10247.00Find in shop
C0231.A1Chain DID HTM G/B DHA 10447.50Find in shop
C0231.A2Chain DID HTM G/B DHA 10648.00Find in shop
C0231.A3Chain DID HTM G/B DHA 10849.00Find in shop
C0231.A4Chain DID HTM G/B DHA 11050.00Find in shop
C0231.A5Chain DID HTM G/B DHA 11251.00Find in shop
D0231.B00Chain 219 with o-ring DHA 10087.00Find in shop
D0231.B0Chain 219 with o-ring DHA 10289.00Find in shop
D0231.B1Chain 219 with o-ring DHA 10491.00Find in shop
D0231.B2Chain 219 with o-ring DHA 10693.00Find in shop
D0231.B3Chain 219 with o-ring DHA 10895.00Find in shop
D0231.B4Chain 219 with o-ring DHA 11097.00Find in shop
D0231.B5Chain 219 with o-ring DHA 11299.00Find in shop
EC04FG400Racing chain lube13.00Buy here
FC04LB400Rapid Unblocking9.60Find in shop
GC04BC600Brake's cleaner7.00Find in shop
HC04OEHDPE1000Eni Kart 2T Racing Oil LT. 120.20/L *Find in shop
IBF500Silicon brake fluid S DOT 5 (500 ml)24.30Find in shop
LBF5.1-500Brake fluid DOT 5.1 (500 ml)19.30 *Buy here
C08MC4040Microfibre cloth 40x40 (box of 50 pieces)37.00Buy here

* Refer to Annex “A”

↑ Back to overview
Table 60Sprockets
OTK Table 60 exploded view
Ref.Part no.Description€ excl. VAT
A0058.C01ASprocket AL 7075 Ø 50 mm Z20 pitch 1/2 "80.00Find in shop
A0058.C02ASprocket AL 7075 Ø 50 mm Z21 pitch 1/2 "80.00Find in shop
A0058.C03ASprocket AL 7075 Ø 50 mm Z22 pitch 1/2 "80.00Find in shop
A0058.C04ASprocket AL 7075 Ø 50 mm Z23 pitch 1/2 "80.00Buy here
A0058.C0ASprocket AL 7075 Ø 50 mm Z24 pitch 1/2 "80.00Find in shop
A0058.C1ASprocket AL 7075 Ø 50 mm Z25 pitch 1/2 "80.00Buy here
A0058.C2ASprocket AL 7075 Ø 50 mm Z26 pitch 1/2 "80.00Buy here
A0058.C3ASprocket AL 7075 Ø 50 mm Z27 pitch 1/2 "80.00Buy here
A0058.C4ASprocket AL 7075 Ø 50 mm Z28 pitch 1/2 "80.00Buy here
B0233.Sprocket AL 7075 Z68 - Z69 - Z70 - Z71 - Z72 - Z73 - Z74 - Z75 - Z76 - Z7730.00Find in shop
B0233.Sprocket AL 7075 Z78 - Z79 - Z80 - Z81 - Z82 - Z83 - Z84 - Z85 - Z86 - Z87 - Z88 - Z89 - Z9034.00Find in shop
CB0000471Sprocket's tool23.00Find in shop
↑ Back to overview
Table 61Tools and accessories
OTK Table 61 exploded view
Ref.Part no.Description€ excl. VAT
AB06EH3200Engine hour-meter88.00Find in shop
BB0116102Engine's small flashlight66.00Buy here
CB0116102LLamp for engine's flashlight28.00Buy here
D0155.A0Disassembling tyres system250.00Buy here
EE0800371NSeat's sticky foam rubber4.20Buy here
F0156.00Bleeding kit58.00Buy here
G0263.A0Tires' support58.00Buy here
H0261.A0Seat assembly kit110.00Buy here
↑ Back to overview

Prices in EUR excl. VAT, based on OTK catalogue v2503a (effective from 01-01-2025). Screws, nuts, washers and wheel nuts are sold per piece; pipes and chain per metre. Current stock and quantity discounts are shown in the shop.
