Steering columns / Tie - rods

Click on the spare part you want, and go directly to the part.
470 Std 470 Spec Mini Micro M8 Washer Seeger Joinball M8 x 40 Washer Spacer Joinball right Spacer M8 M8 x 40 Washer 8 x 12 x 2 Joinball left Spacer M8 190 mm 220 mm 235 mm 270 mm Nylon support Locking bush Locking bush M8 8 x 17 8 x 17 8 x 17 8 x 17 M8 x 65 M5 x 12 M5 x 12 M5 M5
AFSTANDSSKIVE Ø 10 X 4,5 MM



Washer Ø8 x 17mm

Washer Ø8 x 17mm
Washer Ø8 mm with outer diameter on 17 mm.

Original OTK part

0,04EUR

Washer Ø8 x 12 x 2mm

Washer Ø8 x 12 x 2mm
Washer
Inner diameter: Ø8 mm.
Outer diameter: 12 mm.
Thickness: 2 mm.

The washer is used for rear wheel hubs, sprocket hubs, brake disk hubs and on the stub axle for the steering tie rod.

Original OTK part

0,05EUR

Self locking nut, M8, tall

Self locking nut, M8, tall
Self locking nut M8 tall.

Original OTK part

0,07EUR

Lock, conical tip, M5 x 12 mm for lock bush on steering column

Lock, conical tip, M5 x 12 mm for lock bush on steering column
Lock M5 x 12 mm.
Used for lock bush on the steering column.

Original OTK part

0,11EUR

Self locking nut, M10, low

Self locking nut, M10, low
Self locking nut M10 low.
Often used for steering columns with M10 thread, CIK rear protection and Exhaust support.

Original OTK part

0,15EUR

Seeger for steering column joinbal

Seeger for steering column joinbal
Seeger for steering column joinbal.
Fits all OTK karts.
Should be changed when you change the bearing.

Original OTK part
0,17EUR

Counter sunk bolt, M8 x 40mm

Counter sunk bolt, M8 x 40mm
Counter sunk bolt M8 x 45 mm.
Used for OTK steering columns an mounting seat.

Orignal OTK part

0,24EUR

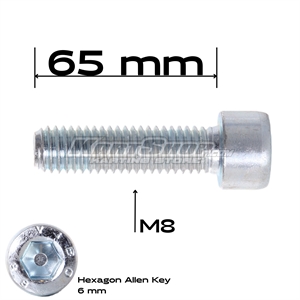

Bolt allen M8 x 65mm

Bolt allen M8 x 65mm
Bolt allen M8 x 65 mm.
Used for mounting the nylon support for steering column.

Original OTK part
0,34EUR

Bolt allen M8 x 75mm

Bolt allen M8 x 75mm
Bolt allen M8 x 75 mm.
Used for mounting the nylon support for the steering column and mounting the Rotax Max radiator on the engine.

Original OTK part

0,53EUR

Counter sunk Bolt, M8 x 45mm

Counter sunk Bolt, M8 x 45mm
Counter sunk bolt M8 x 45 mm.
Used for OTK steering columns and mounting the seat.

Original OTK part

0,85EUR

Biconical AL washer D8 mm

Biconical AL washer D8 mm
Countersunk washer in aluminium for M8 countersunk bolt.
Used for counter sunk bolt for steering column and countersunk bolt for fuel tank etc.

Original OTK part

0,95EUR

Joinbal spacer Ø8 x 13 x 4mm

Joinbal spacer Ø8 x 13 x 4mm
Spacer for steering joinbal which is placed with the little part against the joinbal between the steering column. You will also have to use one by the stub axle.

Original OTK part

1,10EUR

Spacer Ø10 X 4,5 mm

Spacer Ø10 X 4,5 mm
Fits HST.

Original OTK part

2,20EUR

Steering column locking bush

Steering column locking bush
Steering column locking bush.
Note that the lock screw is included.

Original OTK part

4,00EUR

Complete left steering joinbal

Complete left steering joinbal
Left steering joinbal with nut.
Thread is M8 and fits all steering tie-rods.

For the attachment of the steering joinbal to the steering column you need:
1x Countersunk bolt M8 x 40 mm
1x Countersunk washer Ø8
2x Spacer for steering joinbal Ø8 x 13 x4 mm
1x Self locking nut M8, Tall

For the attachment of the steering joinbal to the stub axle you need:
1x Countersunk bolt M8 x 40 mm
1x Countersunk washer Ø8
1x Washer Ø8 x 12 x 2mm
1x Spacer Ø8 x 13 x4mm
1x Self locking nut M8, Tall

Original OTK part
6,50EUR

Complete right steering joinbal

Complete right steering joinbal

Right steering joinbal with nut.
Thread is M8 and fits all steering tie-rods.

For the attachment of the steering joinbal to the steering column you need:
1x Countersunk bolt M8 x 40 mm
1x Countersunk washer Ø8
2x Spacer for steering joinbal Ø8 x 13 x4 mm
1x Self locking nut M8, Tall

For the attachment of the steering joinbal to the stub axle you need:
1x Countersunk bolt M8 x 40 mm
1x Countersunk washer Ø8
1x Washer Ø8 x 12 x 2mm
1x Spacer Ø8 x 13 x4mm
1x Self locking nut M8, Tall

Original OTK part
6,50EUR

Nylon support for steering column Red

Nylon support for steering column Red
Nylon support for steering column in red.
Fits all types of karts and equipped with 4 holes to ensure the bedste adaption for the drivers position.

Original OTK part

7,00EUR

Steering column joinbal Ø10mm

Steering column joinbal Ø10mm
Bearing for steering column with Ø10 mm hole.
The bearing fits and is being used on all OTK karts.
Fits all OTK steering columns.
Always change the seeger when you change the bearing.

Original OTK part

13,00EUR

Steering tie-rod L. 255 MM, Gold

Steering tie-rod L. 255 MM, Gold
Steering tie-rod for Neos, Rookie and Nordix karts.
Steering tie-rod length is 255 mm.
14,50EUR

Steering tie-rod L. 190 MM, Gold

Steering tie-rod L. 190 MM, Gold
Steering tie column 190 mm length for Micro karts.

Original OTK part

15,50EUR

Steering tie-rod L. 220 MM

Steering tie-rod L. 220 MM
Steering tie-rod for Neos, Rookie and Nordix karts.
Steering tie-rod length is 220 mm.
15,50EUR

Steering tie-rod L. 235 MM

Steering tie-rod L. 235 MM
Steering tie-rod for Neos, Rookie and Nordix karts.
Steering tie-rod length is 235 mm which is standard on OTK Neos karts.
15,50EUR

Steering tie-rod L. 270 MM

Steering tie-rod L. 270 MM
Steering tie-rod 270 mm length.
Used on all 1040 mm karts.

Original OTK part

15,50EUR

38/50 Steering column L. 490, 8 mm

38/50 Steering column L. 490, 8 mm
Standard steering column 490 mm.
470 mm is the length of the steering column and is for example used to get the steering wheel closer to the driver.

Original OTK part


45,00EUR

Steering column for Neos - Rookie- Nordix

Steering column for Neos - Rookie- Nordix
Steering columns for Rookie, Neos, Mini EXP and Kid.

Original OTK part

45,00EUR

38/50 Steering column L. 470, 8mm

38/50 Steering column L. 470, 8mm
Steering column standard 470 mm from OTK.
8 mm thread which is standard on all 2019 OTK karts.

Original OTK part

48,00EUR

38/50 Steering column L. 510, 8mm

38/50 Steering column L. 510, 8mm
Steering column standard 510 mm from OTK.
510 mm is the length of the steering column
8 mm thread which is standard on all 2019 OTK karts.

Original OTK part


48,00EUR

Steering column for micro

Steering column for micro
Steering column for Micro.
Steering column 190 mm is used for a Micro kart.

Original OTK part

48,00EUR

45/55 steering column L. 510, 8 mm

45/55 steering column L. 510, 8 mm
Steering column special 510 mm from OTK.
510 mm is the length of the steering column.

With a special steering column it gives you the ability to "lower"the steering compared to the standard steering column because the mount for the holes is 5 mm longer and therefore the holes are 5 mm displaced compared to the standard steering column.
Therefore it will make it possible to use an alternative anckermann setting.

Original OTK part

50,00EUR

45/55 steering column L. 470, 8mm

45/55 steering column L. 470, 8mm
Steering column special 470 mm from OTK.
8 mm thread which is standard on all 2019 OTK karts.

With a special steering column it gives you the ability to "lower"the steering compared to the standard steering column because the mount for the holes is 5 mm longer and therefore the holes are 5 mm displaced compared to the standard steering column.
Therefore it will make it possible to use an alternative anckermann setting.

Original OTK part
53,00EUR

45/55 steering column L. 490, 8 mm

45/55 steering column L. 490, 8 mm


Steering column special version 490 mm length.
490 mm is the long version and can be used to get the steering wheel closer to the driver.

With a special steering column it gives you the ability to "lower"the steering compared to the standard steering column because the mount for the holes is 5 mm longer and therefore the holes are 5 mm displaced compared to the standard steering column.
Therefore it will make it possible to use an alternative anckermann setting.

Original OTK part


53,00EUR
