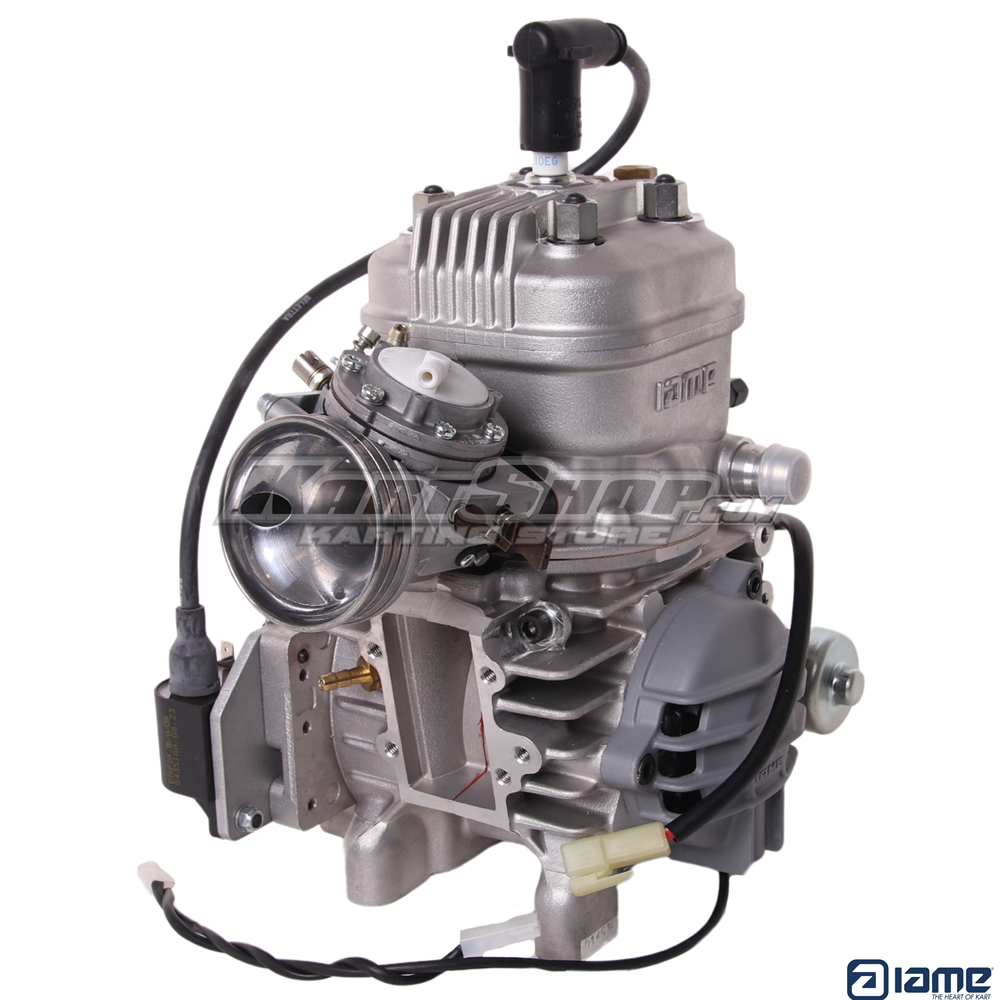

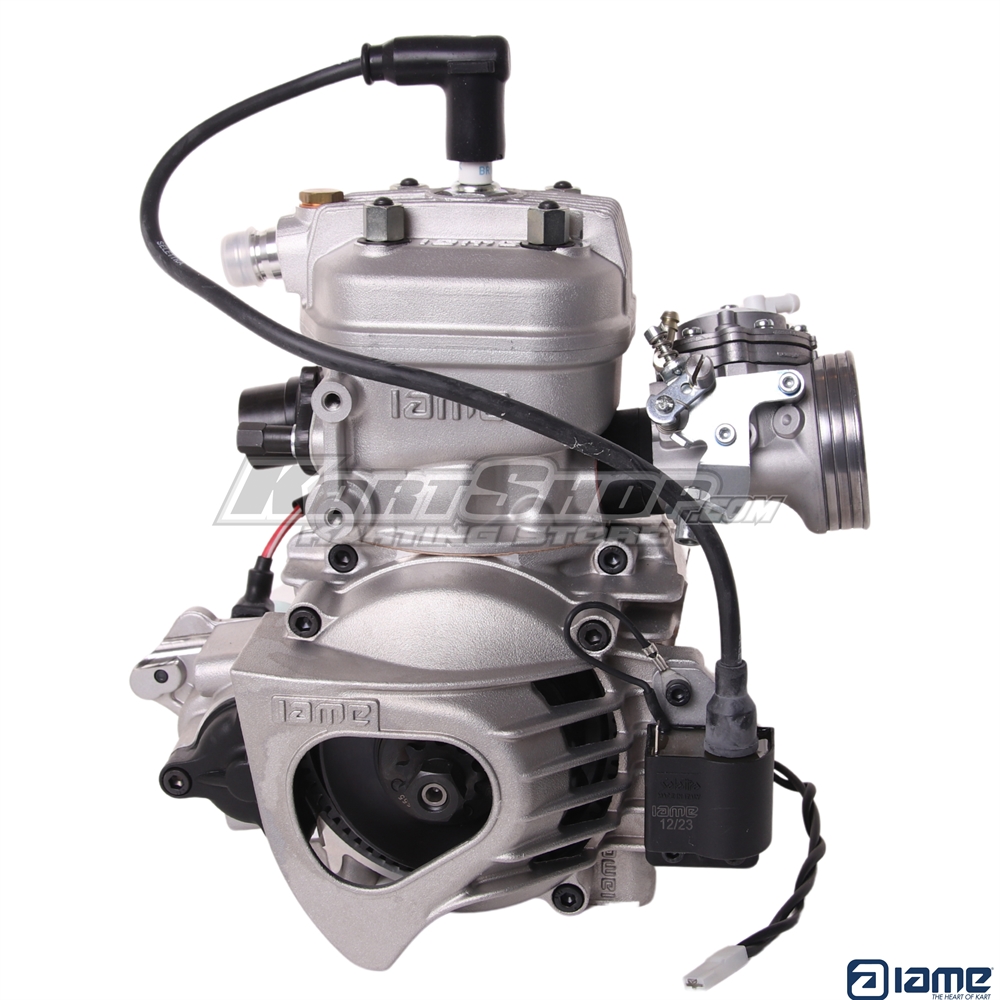

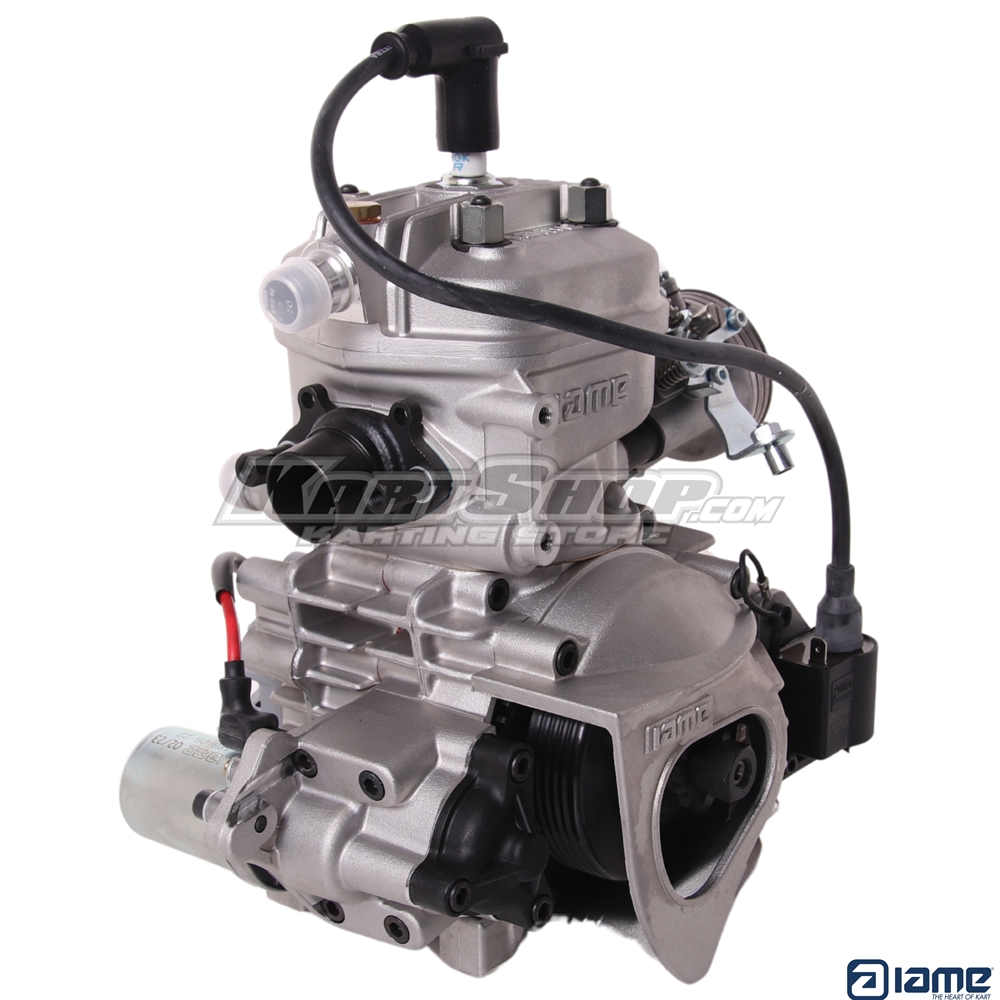

Engine, Iame X30 Water Swift

Derived from the Water Swift, the X30 Water Shift 60cc engine adopts a traditional axle-driven water pump. The proven architecture of the IAME Mini Swift engines coupled with water-cooling guarantees stable performance and reliability.

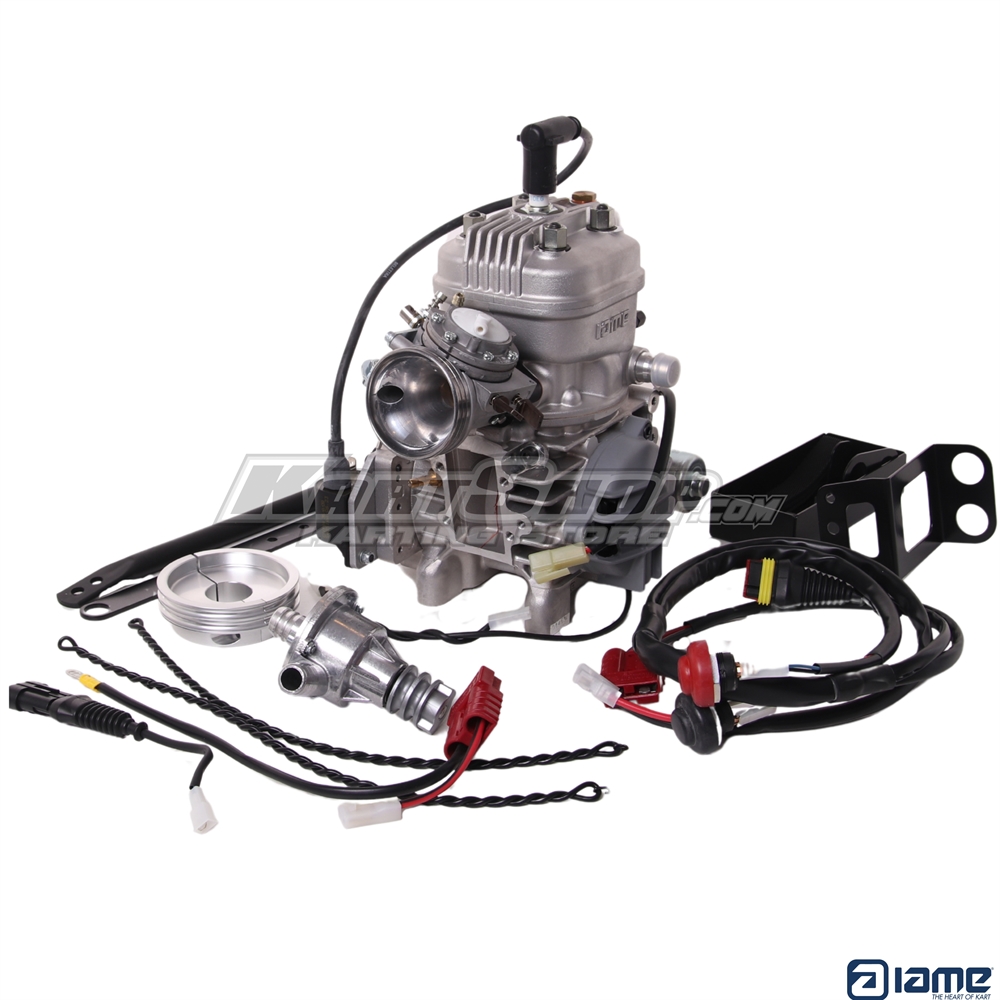

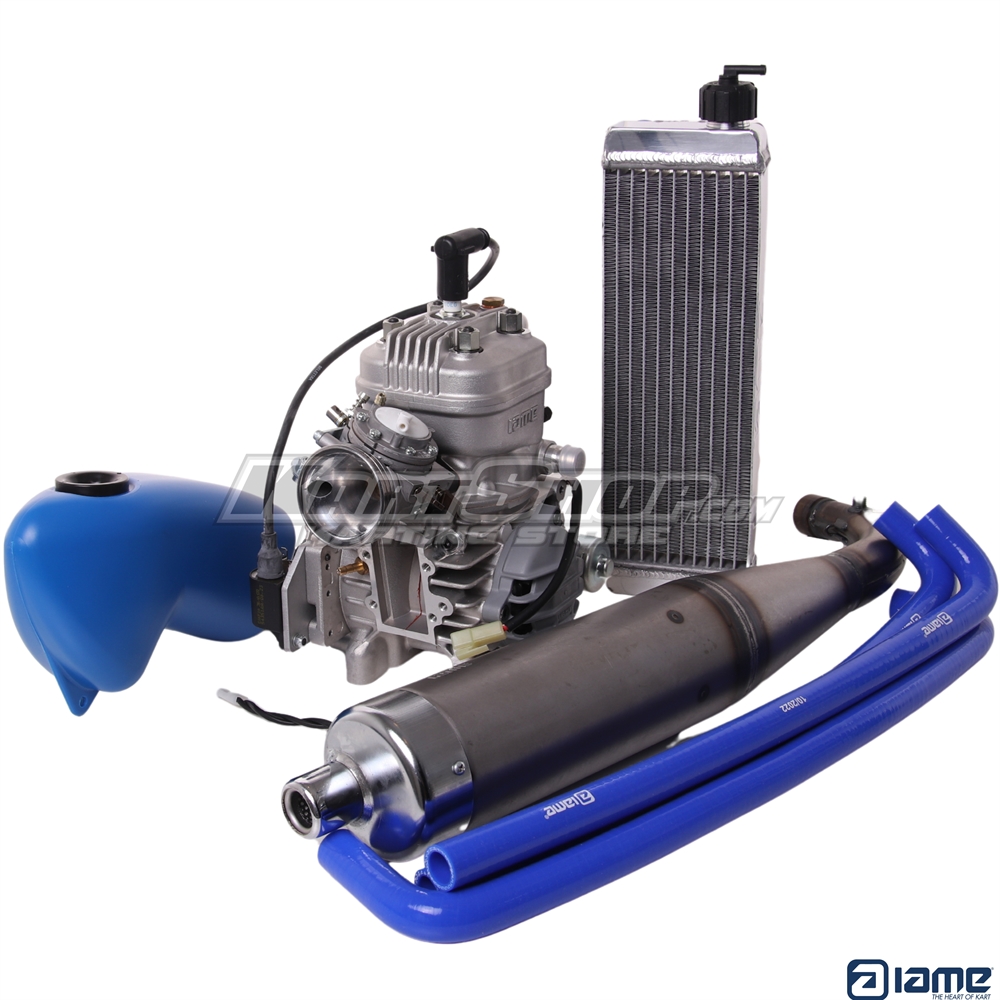

Included all associeres.

Download Data Sheet here

model: X30 Water Swift 60cc
description: Single cylinder – 2 stroke
class: 60cc Stock Class
bore: Ø 41,81mm
max-bore: Ø 42,10mm
stroke: 43,00mm
displacement: 59,00cc
ports: 2
inlet-system: Piston Port
lubrication: Oil mixture
ignition-system: Electronic/Analogic
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft: –
starter: Electric
carb-model: Tillotson HW-31A
max-power: 10 Hp
max-torque: 7 Nm
max-rpm-limit: –

The engine can be delivered optimized and prepared by One Engines.
The optimization includes:
The engine is completely disassembled
All parts are cleaned
Vital parts are measured and replaced as needed
Optimized within the class regulations
The engine is assembled according to One Engines high standards.
