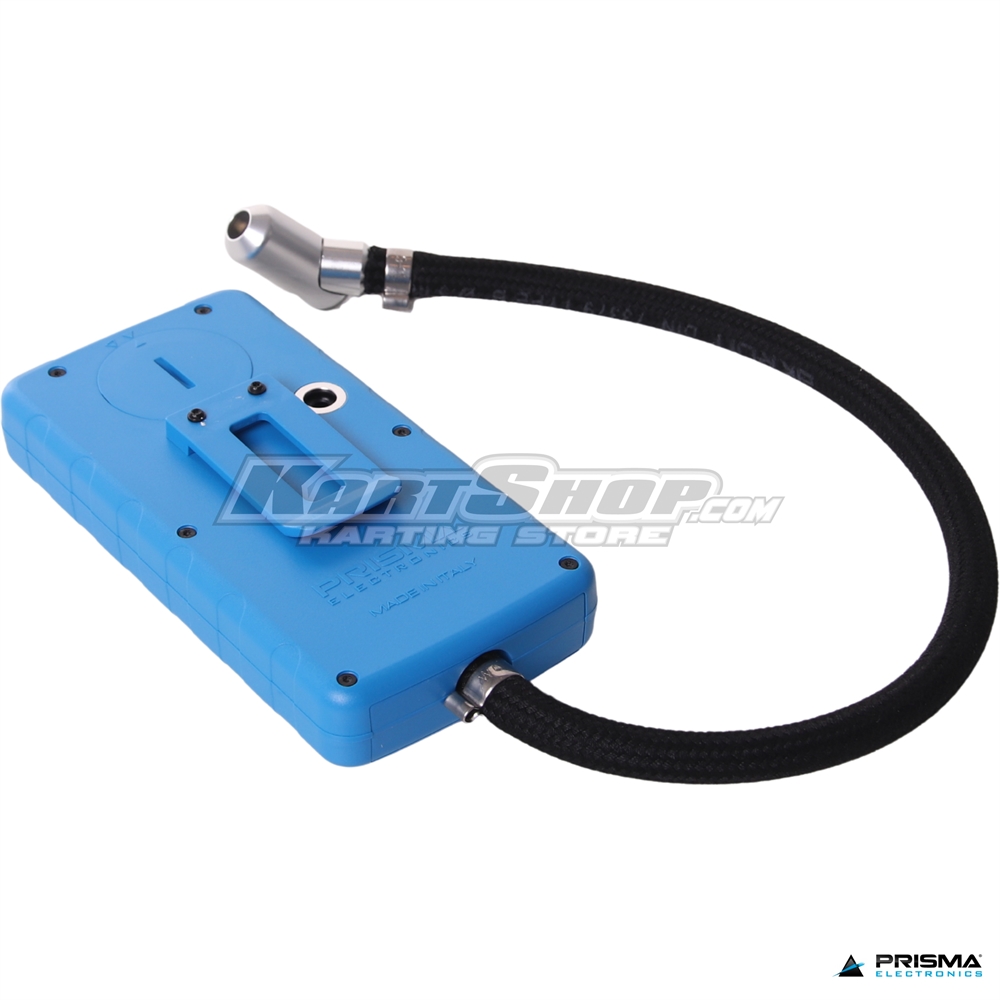

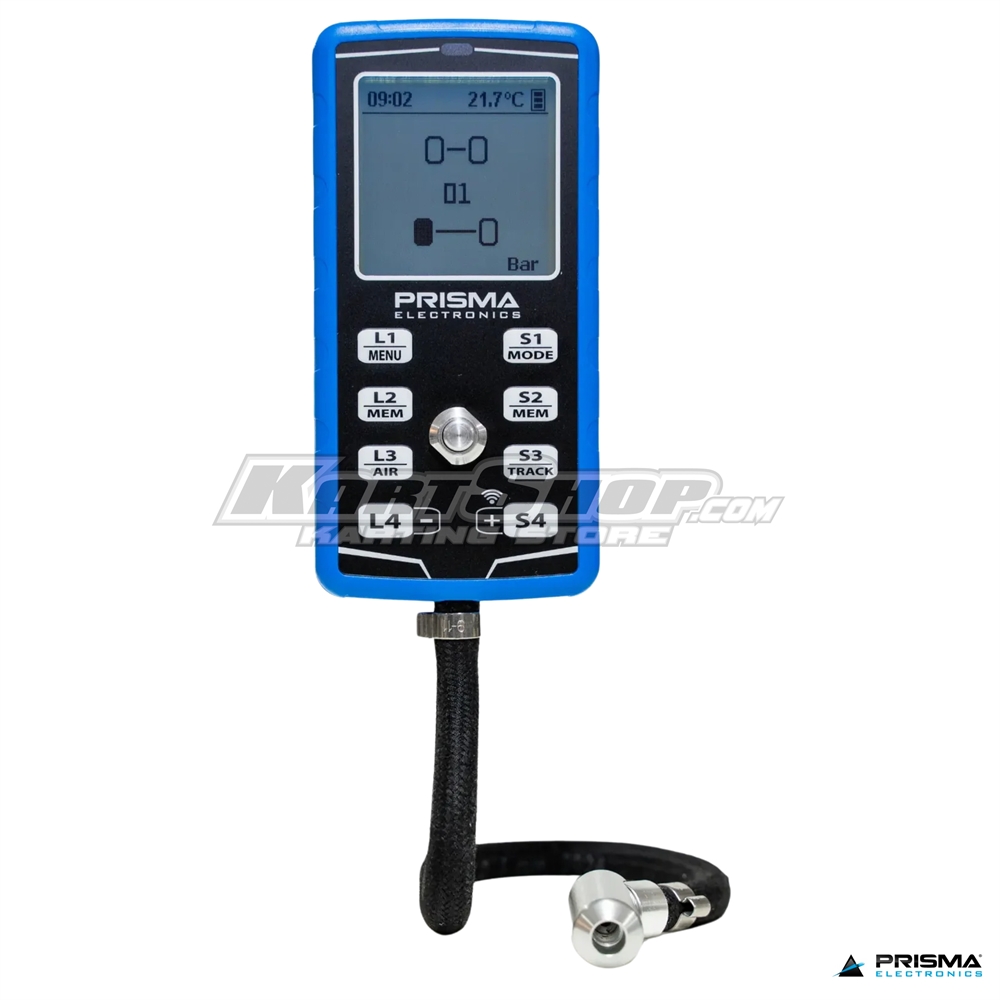

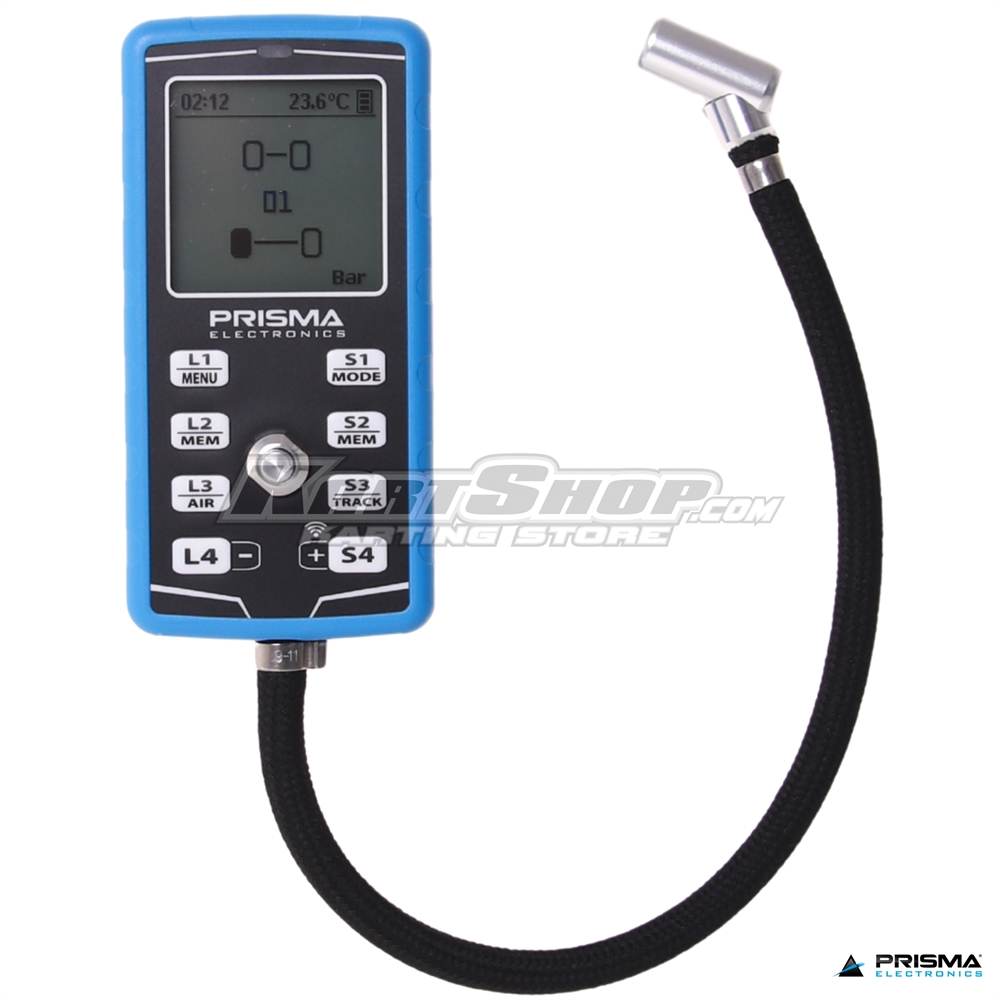

Pressure gauge with Infrared Sensor and Stopwatch

The Prisma Electronics HPM5 + PYR-IR + STW is the ultimate all-in-one motorsport instrument, combining three essential tools into a single professional device: the HiPreMa 5 digital tire pressure gauge, an infrared tire pyrometer, and the STW Multi-Rider stopwatch. Designed for karting, GT racing, MotoGP, Superbike, endurance racing, and professional motorsport, it provides complete tire and performance analysis in one compact package.

The system allows users to measure and store tire pressure, tire temperatures, track temperature, ambient air temperature, lap times, and split times for up to four drivers simultaneously. This provides teams with a complete understanding of tire behavior and vehicle performance.

The integrated infrared pyrometer measures up to 12 tire temperature points per session and provides accurate, non-contact temperature readings with a fast response time, making it ideal for analyzing tire performance and chassis setup.

Pressure measurement resolution is an outstanding 0.001 BAR / 0.01 PSI, while the custom-designed aluminum tire chuck guarantees pressure readings without air loss.

The integrated Multi-Rider stopwatch supports timing for up to four drivers simultaneously, including split times and detailed lap statistics. Data can be exported via Bluetooth through the Prisma Electronics App in both Excel and PDF formats.

Compatibility:
Suitable for karting, motorcycle racing, automotive racing, and professional motorsport applications.

Specifications & Features:
– HiPreMa 5 digital tire pressure gauge
– Integrated infrared pyrometer
– Integrated Multi-Rider stopwatch
– Pressure resolution: 0.001 BAR / 0.01 PSI
– Pressure range: 0-7 BAR / 100 PSI
– 12 tire temperature points
– Ambient air temperature measurement
– Track surface temperature measurement
– Stores 50 pressure/temperature sessions
– Stores 5 stopwatch sessions
– Bluetooth connectivity to Prisma App
– Pressure Offset function
– Pit Stop Mode
– Pressure Shot® function
– Automatic calibration
– IP55 protection rating
– ABS carrying case included
