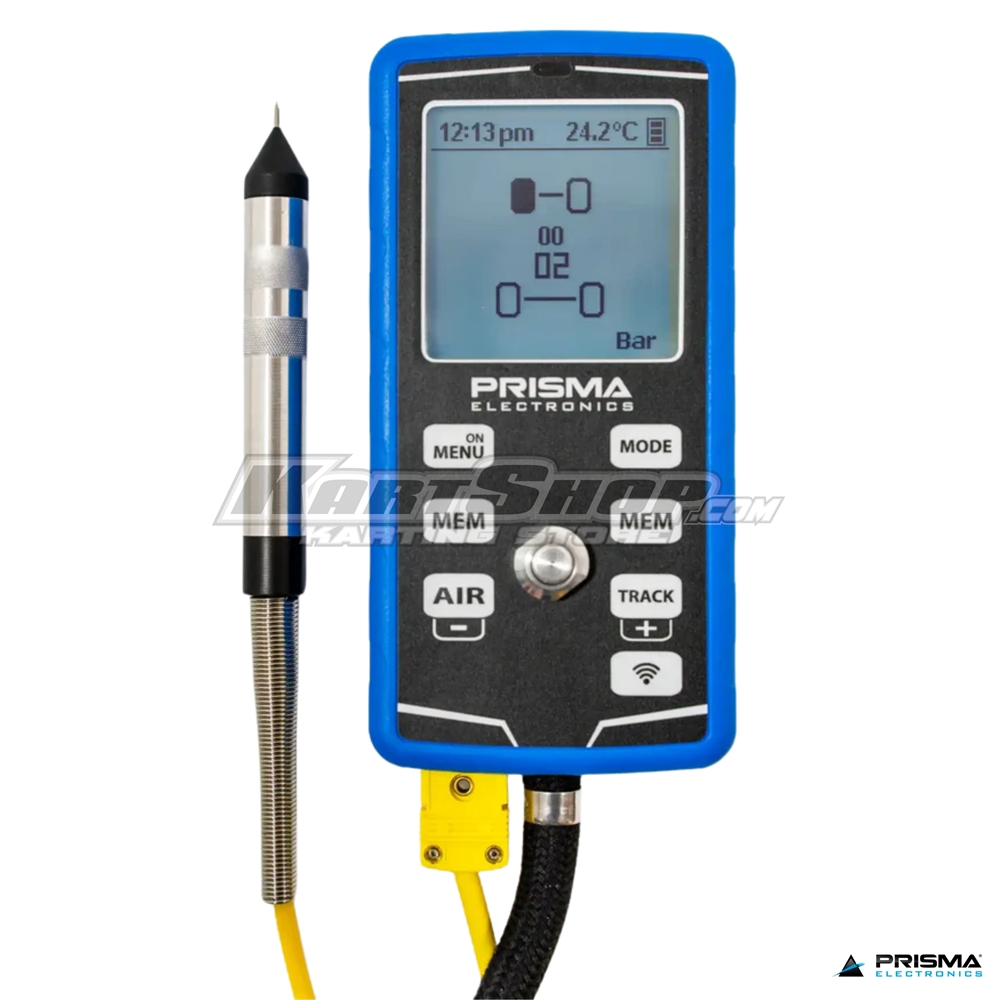

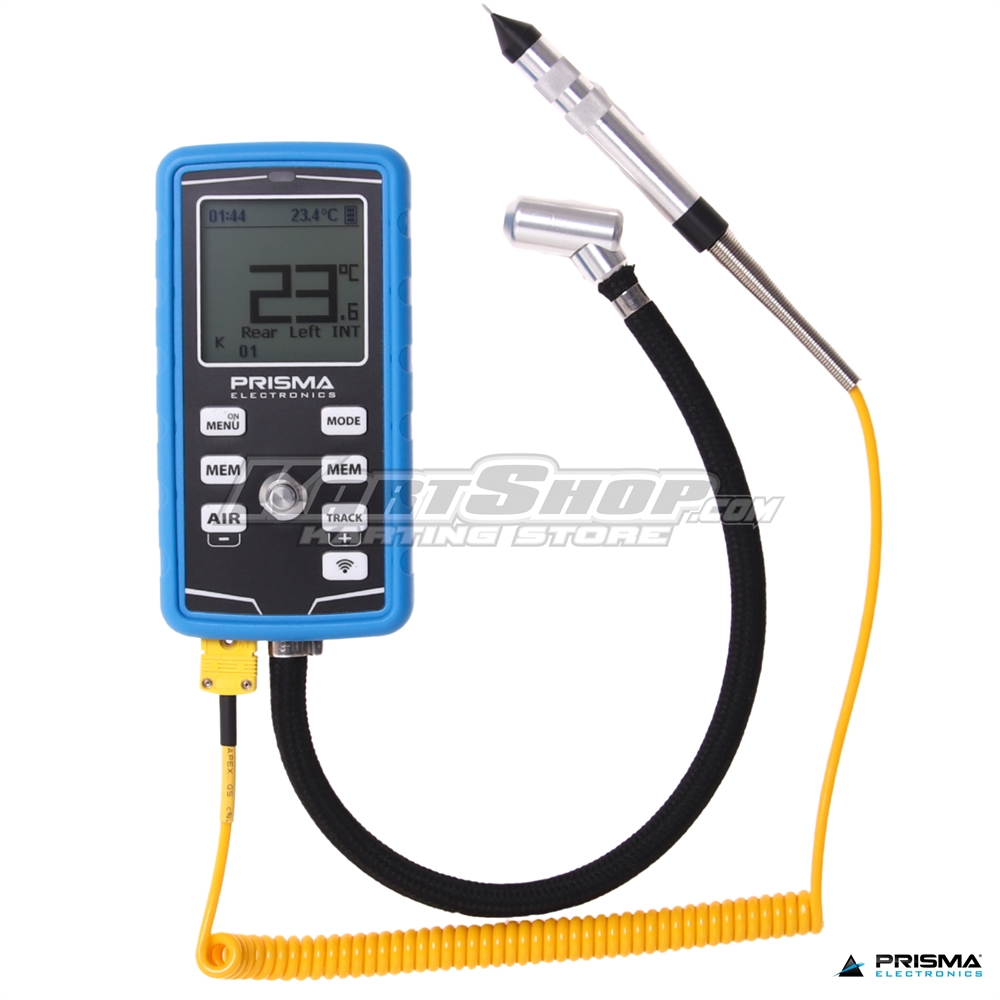

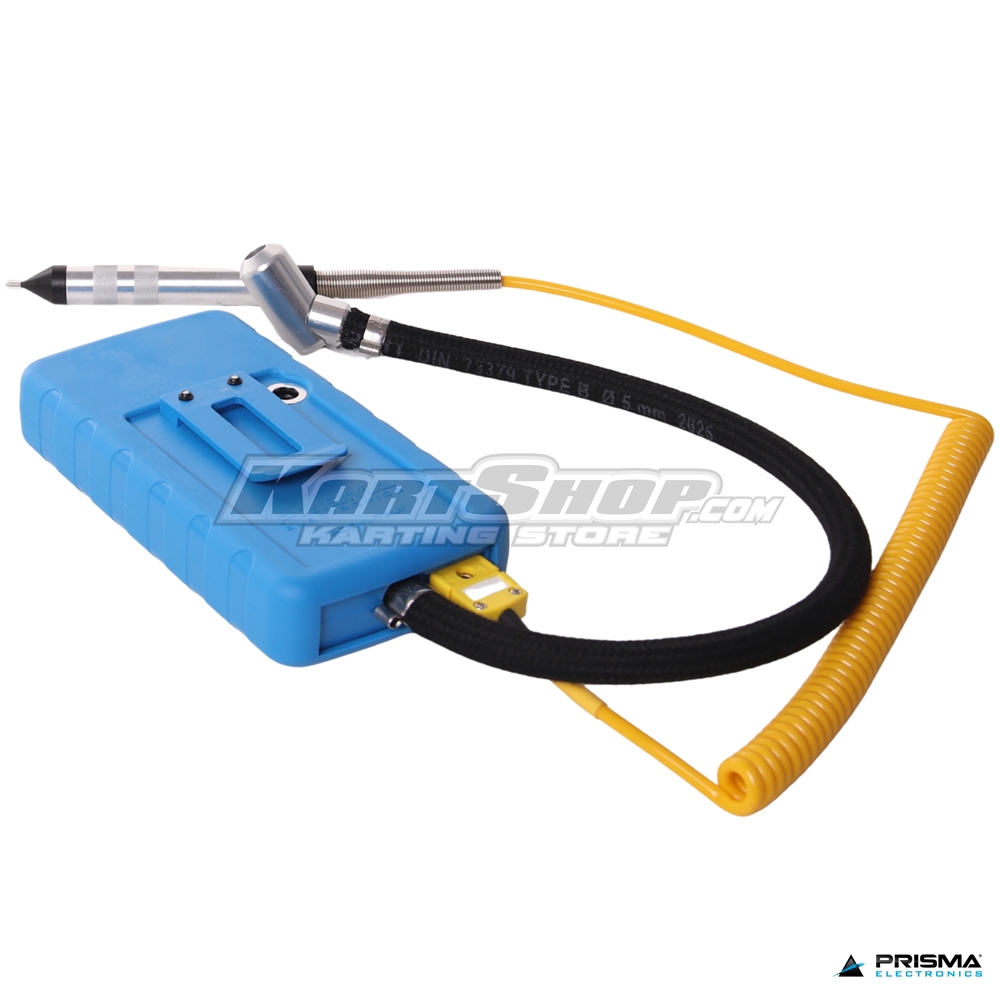

The Prisma Electronics HPM5 + DUAL-PYR combines the ultra-precise HiPreMa 5 digital tire pressure gauge with Prisma Electronics' advanced Dual Technology Pyrometer, creating one of the most comprehensive tire analysis tools available for professional motorsport.
What makes the DUAL-PYR unique is its ability to combine infrared surface temperature measurement with an integrated penetration probe for internal tire temperature readings. This allows teams to accurately measure both the tire surface temperature and the internal carcass temperature, providing a complete understanding of tire behavior and performance.
While surface temperatures can fluctuate rapidly, internal tire temperatures provide a much more accurate indication of the tire's true operating condition. By combining both technologies, teams gain valuable insight for optimizing tire pressures, chassis setup, camber settings, and overall vehicle balance.
The integrated HiPreMa 5 pressure gauge offers an exceptional resolution of 0.001 BAR / 0.01 PSI, while the custom-designed aluminum tire chuck ensures pressure readings without air loss.
All measurements can be stored directly within the device and transferred via Bluetooth to the Prisma Electronics App for detailed analysis, comparison, and export in PDF or Excel format.
Developed alongside professional karting, GT, MotoGP, Superbike, and endurance racing teams, the HPM5 + DUAL-PYR delivers the advanced tire data required to maximize performance at the highest levels of competition.
Compatibility:
Suitable for karting, motorcycle racing, automotive racing, and professional motorsport.
Application / Function:
Ultra-precise tire pressure measurement.
Infrared tire surface temperature measurement.
Internal tire temperature measurement using penetration probe.
Advanced tire performance analysis.
Wireless data logging and export via Prisma App.
Material & Features:
– HiPreMa 5 digital tire pressure gauge
– Dual Technology Pyrometer
– Infrared temperature measurement
– Internal tire penetration probe
– Resolution: 0.001 BAR / 0.01 PSI
– Pressure range: 0-7 BAR / 0-100 PSI
– Bluetooth connectivity
– PDF and Excel export capability
– No-loss aluminum tire chuck
– Automatic calibration
– Quick Function buttons
– ABS carrying case included
Specifications & Features:
– Product type: Digital tire pressure gauge with Dual Technology Pyrometer
– Model: HPM5 + DUAL-PYR
– Pressure range: 0-7 BAR / 0-100 PSI
– Resolution: 0.001 BAR / 0.01 PSI
– Temperature measurement: Infrared and penetration probe
– Connectivity: Bluetooth / Prisma Electronics App
– Data export: PDF and Excel
– Carrying case included
– Manufacturer: Prisma Electronics
