Wide Band Lambda Sensor LSU 4.9 Kit

Read product information

Trustpilot +800 reviews

Unit price when buying 1 Pcs.

279,34EUR(excl. VAT)

In stock

BOX12 - Extension Sensors - Force-g integrated

347,11 EUR

Expected delivery time: 1-2 days

Worldwide shipping Read more

Product information

This lambda sensor pack featuring an LSU 4.9 wideband sensor is used to continuously measure the air/fuel ratio under all operating conditions, at both low and high engine speeds. Accurate AFR measurement is a key tool for quickly achieving the best possible engine performance.
The system is designed for the Alfano 7 platform and provides stable and precise data for tuning, analysis and performance optimisation.

Compatibility:
For use with Alfano 7.
Connects directly to the black BUS port of the Alfano 7.
Can also be used via a Box12 connected to an Alfano 7.

Application / Position:
The lambda sensor is installed in the exhaust system using the supplied welded threaded nut.
Measures the air/fuel ratio (AFR) during operation at all RPM levels.

Material & Features:
– LSU 4.9 wideband lambda sensor
– Continuous air/fuel ratio measurement
– High accuracy at low and high RPM
– Ideal for engine tuning and performance optimisation
– Designed for motorsport use
– Integrated controller for stable signal processing

Important information:
– Requires a 12V DC power supply (battery).
– Sensor and controller can only be used with Alfano 7 systems as specified above.

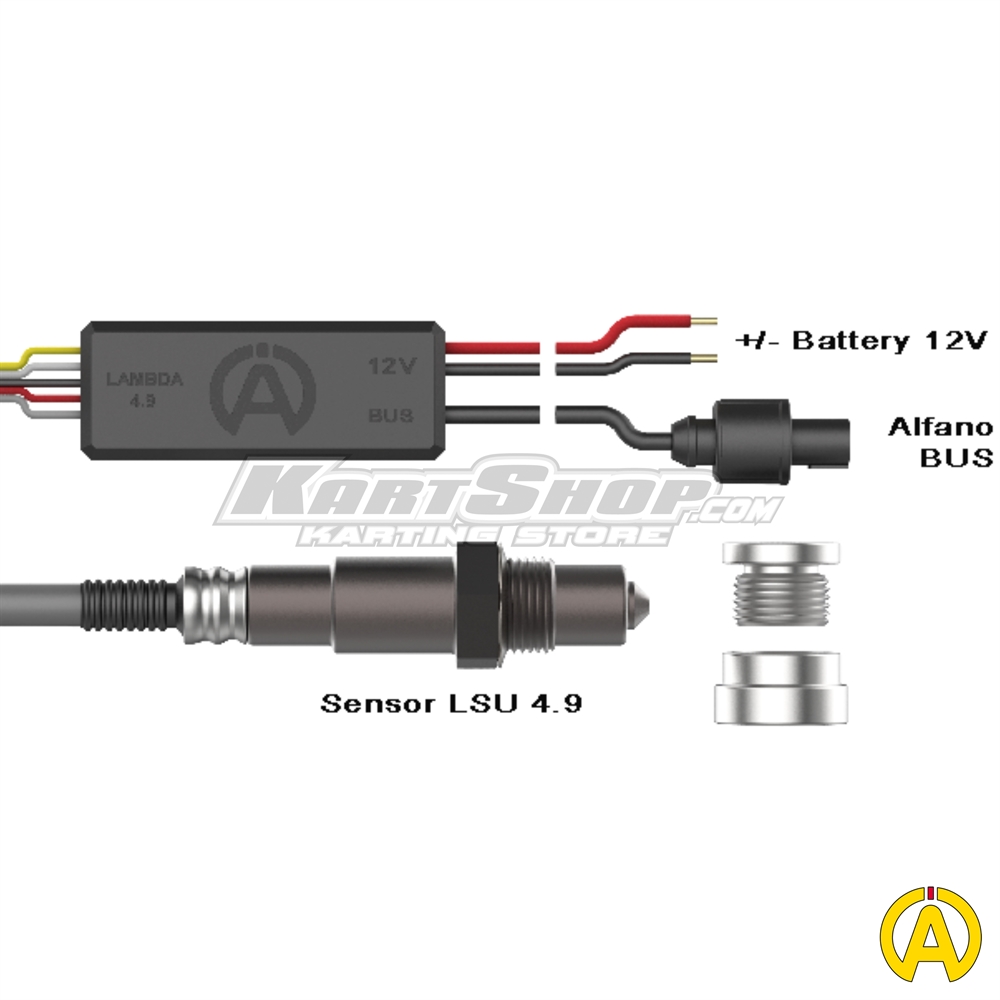

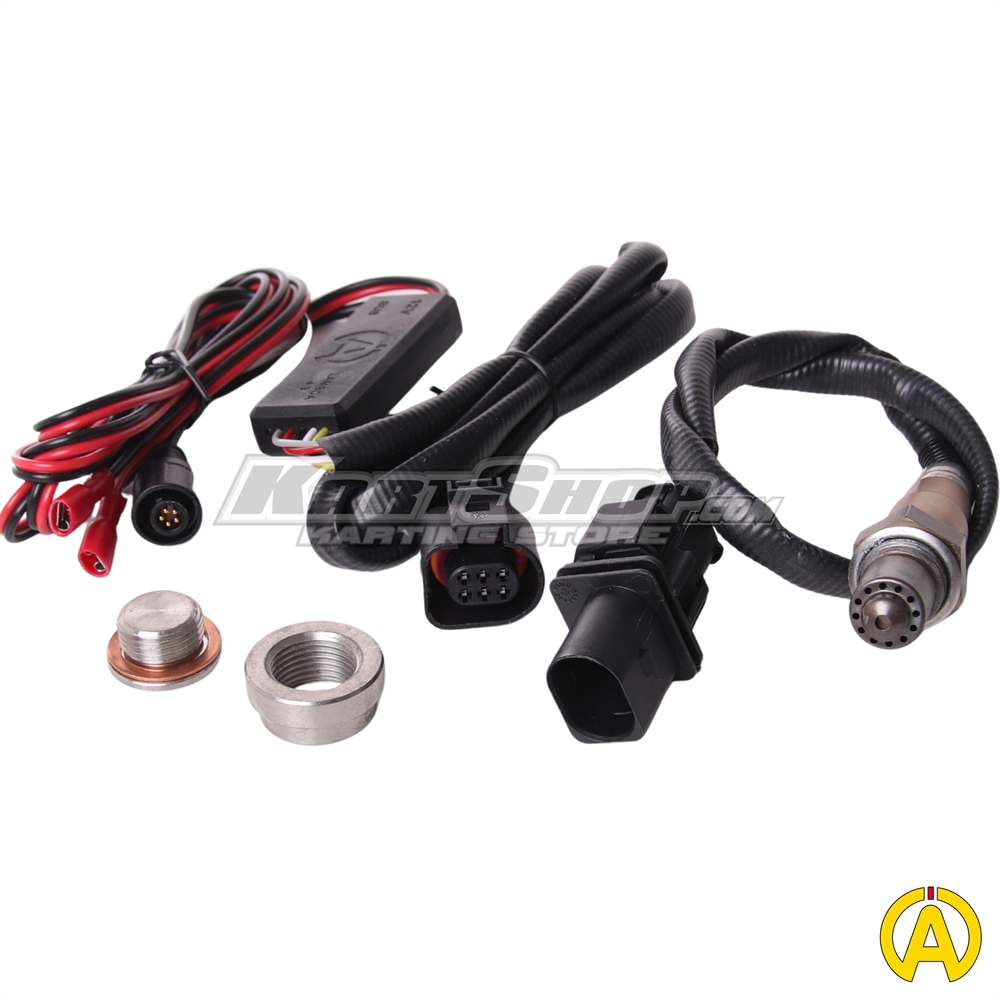

Pack contents:
– LSU 4.9 lambda sensor
– Electronic probe controller
– Stainless steel threaded nut for welding onto the exhaust pipe
– Bolt / plug for closing the threaded port

Installation / Use:
– Weld the supplied threaded nut onto the exhaust pipe
– Install the lambda sensor into the threaded port
– Connect the controller to the Alfano 7 via the black BUS port or via Box12 connected to Alfano 7
– Connect a 12V power supply
– Used for testing, tuning and racing
